TaeguTec Cutting Tools - Metal Working Tools - Turning -

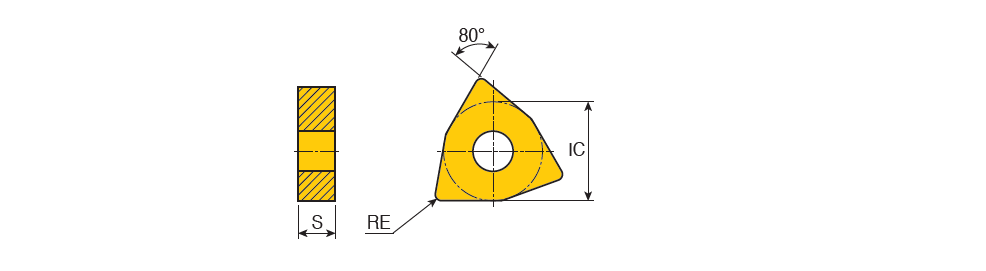

WNMG-RT : Negative 80° Trigon inserts for rough machining of steels & cast irons with very strong rake geometry

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
WNMG 080408 RT	12.70	4.76	0.80	8.70~	RT ~	80~	0.00~	0.80	4.00	0.25	0.70	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8105B ~	2~	ISO$WN0804082NB$$08 ~	432 RT ~	WNMG ~	Y ~	8 ~	6241755	11	TT9235 TT7100 TT8135B TT9225 TT5100 TT8125B TT5080 TT9215 TT8105B TT7015 TT7005
WNMG 080412 RT	12.70	4.76	1.20	8.70~	RT ~	80~	0.00~	2.50	4.00	0.25	0.70	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804122NB$$12 ~	433 RT ~	WNMG ~	Y ~	8 ~	6241369	8	TT7100 TT8135B TT5100 TT8125B TT8115B TT7025 TT7015 TT7005
WNMG 080416 RT	12.70	4.76	1.60	8.70~	RT ~	80~	0.00~	1.60	4.00	0.25	0.70	6~	~	U ~	W ~	71DD68D73218C ~	CVD ~	8115B ~	2~	ISO$WN0804162NB$$16 ~	434 RT ~	WNMG ~	Y ~	8 ~	6212197	3	TT8125B TT8115B TT7005
