Home Page > Milling & Solid End mills > > RXMX 10/12/16/20-MR > RXMX 1003-MR

Milling & Solid End mills
Main Application

Related Tool

Family Designation: RXMX 10/12/16/20-MR

Positive round inserts with strong flat top geometry for heavy roughing applications

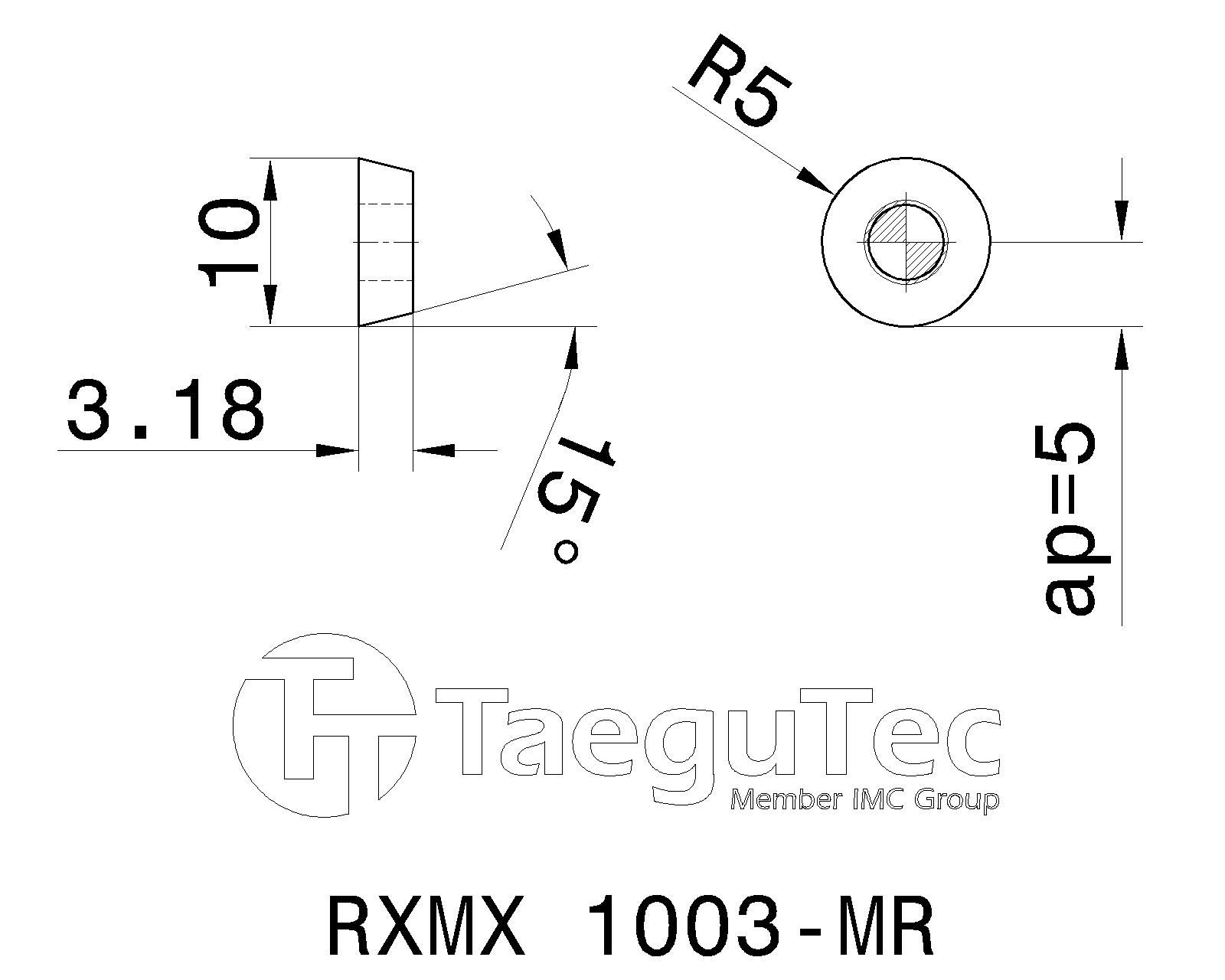

Item Designation: RXMX 1003-MR

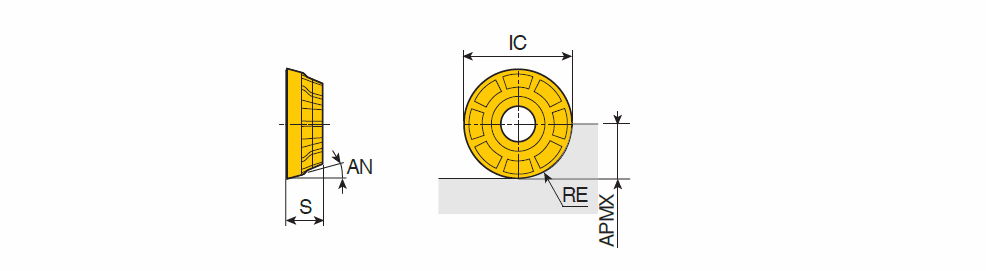

IC	S	RE	APMX	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC		CB	GRDMFG	GICAT	GIREM	giic
10.00	3.18	5.00	5.00	10.00~	1.50	4.00	0.300	0.050	M10 ~	CM-RX10 ~	R ~	71D1AA6635E76 ~	8~	U70 ~	MR ~	TT7080 ~	5615291		4

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	Add to favorites	Properties File	P21
5610700	TT9030	Alternative		1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5610700&cat=5610700&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=5610700&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
5611124	TT7080	Alternative		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5611124&cat=5611124&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=5611124&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
5611125	TT9080	Alternative		1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5611125&cat=5611125&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=5611125&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
5615291	TT8080	Alternative		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=0&p21=5615291&cat=5615291&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=5615291&itemDesc=RXMX 1003-MR"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 10

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
