TaeguTec Cutting Tools - Metal Working Tools - 3ED-8XD (Cylindrical Shank) : 6245080

Family Designation: 3ED-8XD (Cylindrical Shank)

Head changeable 3 flute drills with cylindrical shank and coolant holes

Drilling depth: 8xdiameter

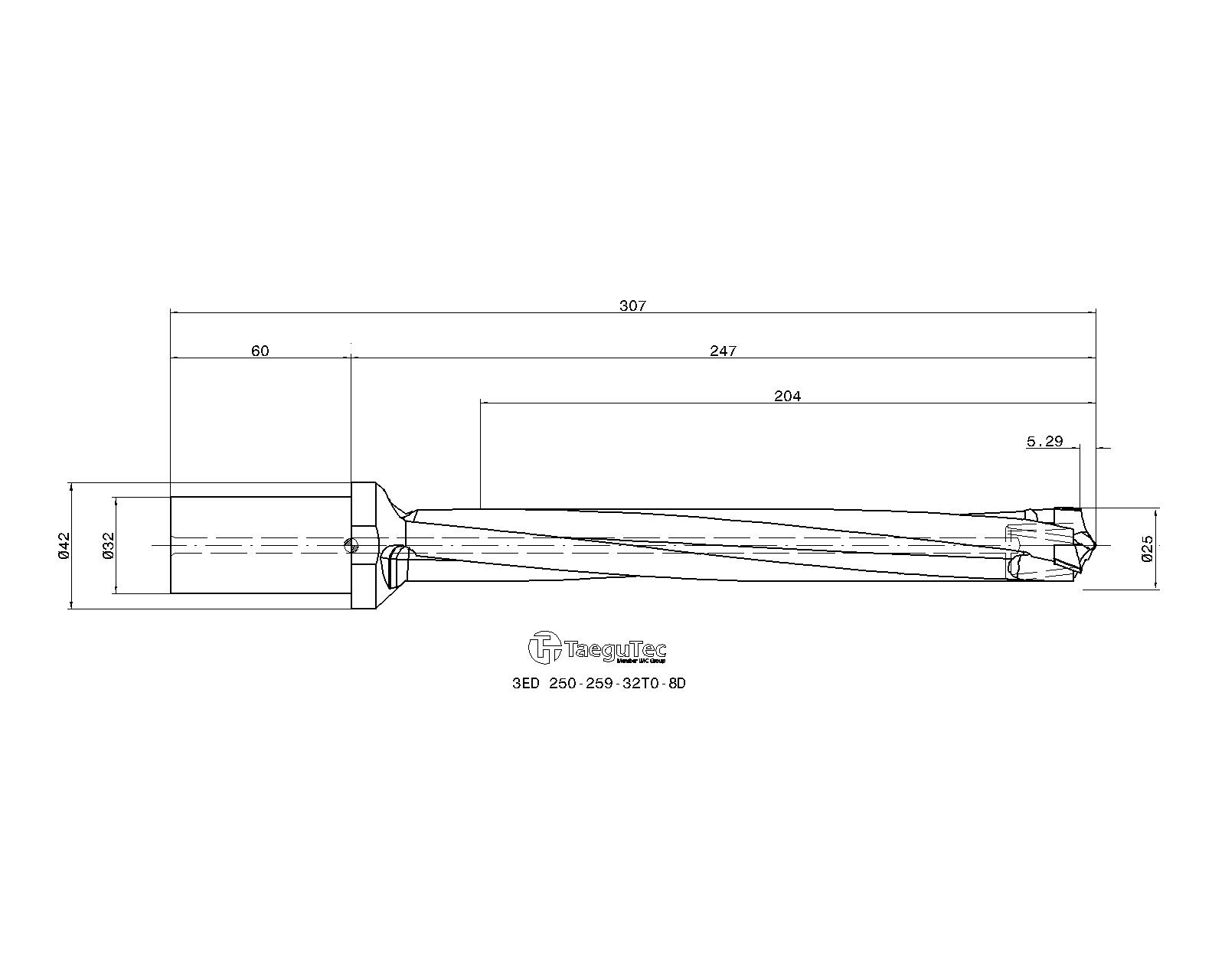

Item Designation: 3ED 250-259-32T0-8D

Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL	SSC		MIID	ClssID	Machines	Zeff	Min Tol	Max Tol	Shank	CICT	DC	ULDR	CCFMS	CCTMS	IIC	LTA	GICAT	GIREM	giic
HEAD TYPE ~	25.00	25.90	32.00	42.00	204.0	247.00	60.0	307.00	5.29	25	Y ~	3ED-25-P+	72550E1361C6C ~	~	3~	0~	0~	C ~	1~	25.00~	0.00~	11 ~	ZYL ~	IS$$234134683012820 ~	241.71~	6245080		0

Catalog No	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	Add to Assembly
6245080		6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6245080&cat=6245080&itemDesc=3ED 250-259-32T0-8D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6245080', '3ED 250-259-32T0-8D' , 'DXF' , '6245080 - 3ED 250-259-32T0-8D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required

Spare Parts
	6323869	K 3ED D24-D25	Clamping key
