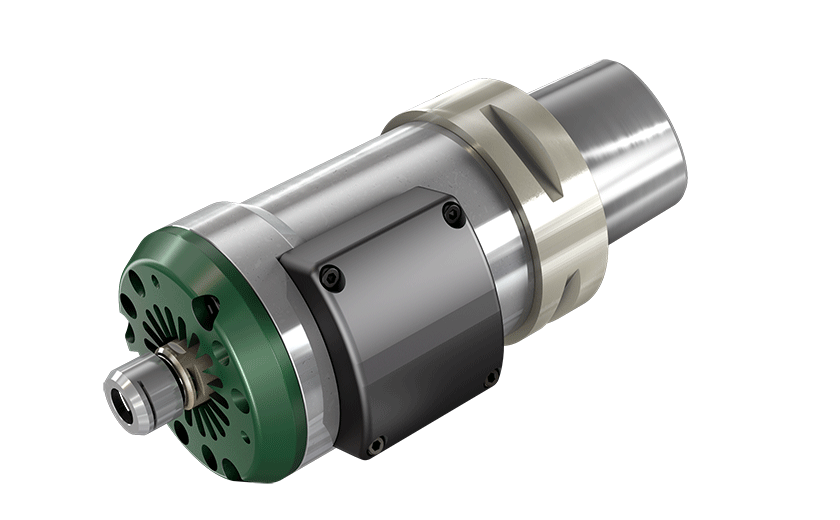

Family Designation: TJS-GJET-C# Coolant driven high-speed compact spindles with C-ADAPTER shanks
For ER-SPR collets use "AA" type only

For ER-SPR collets use "AA" type only

Item Designation: TJS GJET C5

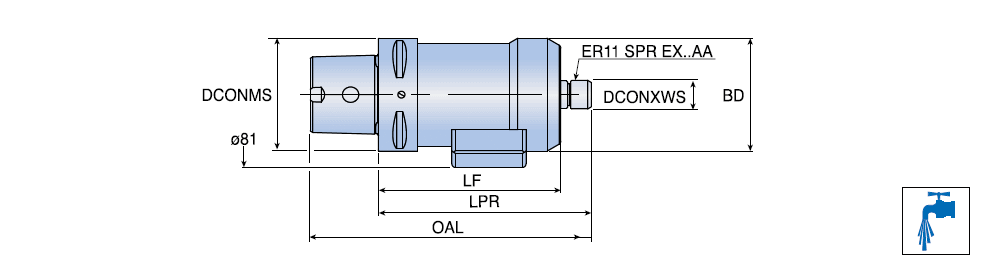

DCONMS LF LPR DCONXWS  OAL BD S3 ClssID LTA GICATGIREMgiic
50.00112.00129.007.00129.0063.001.50ER11 ~71EAD3871D313 ~122.40~6321044 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6321044 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6321044&cat=6321044&itemDesc=TJS GJET C5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6321044', 'TJS GJET C5' , 'DXF' , '6321044 - TJS GJET C5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6321044&itemDesc=TJS GJET C5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
3D Representation

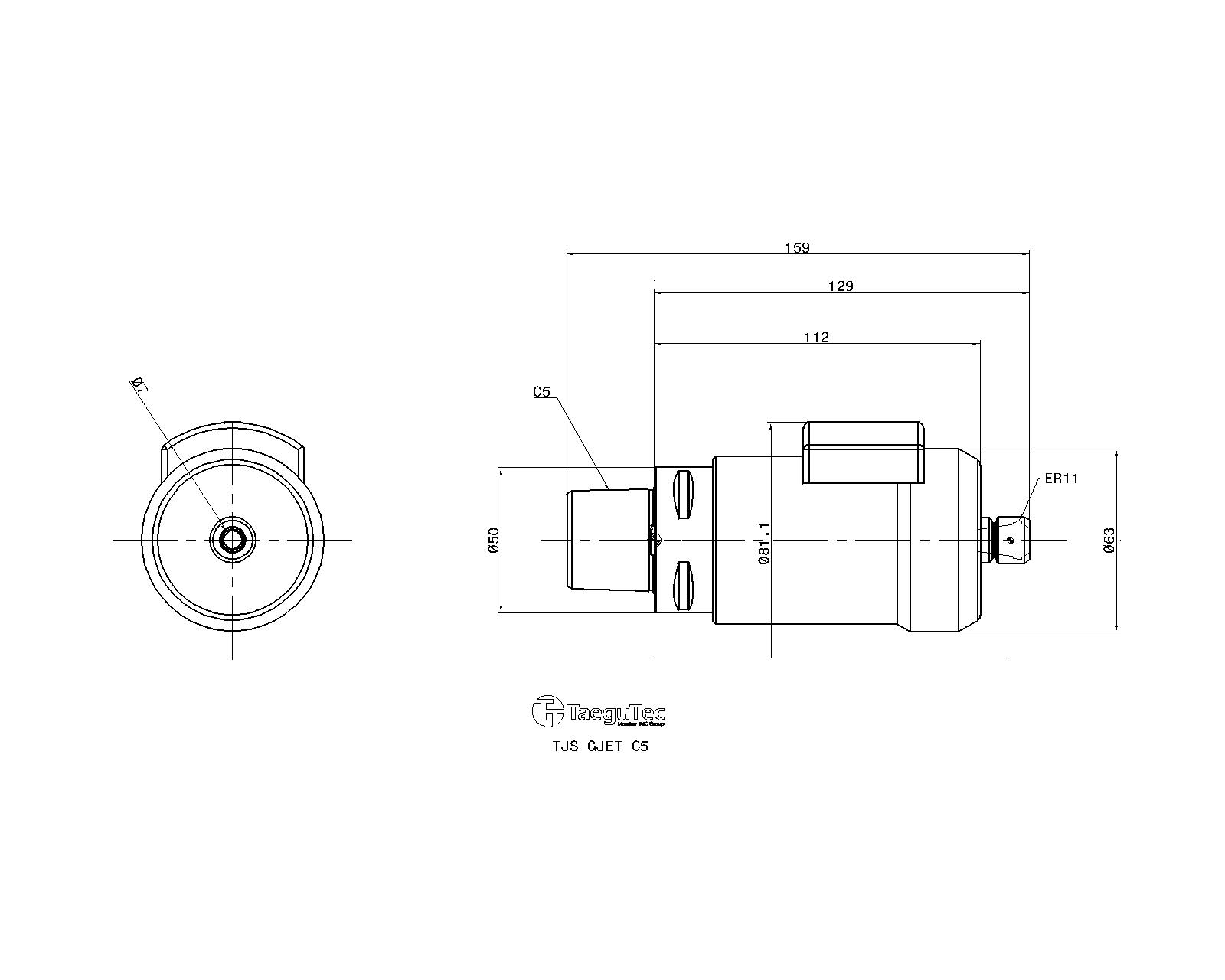

2D Representation
