UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

79750 : Excellent finishing operations

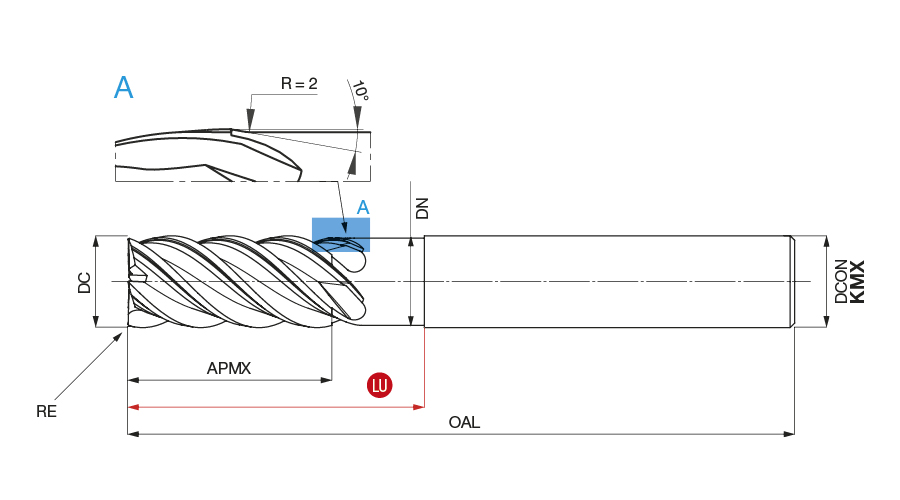

Designation	DC	DCONMS	DN	OAL	LU	APMX	RE	NOF	GICAT	giic	Grade
797500600KMX	6.00	6.00	5.60	55.00	19.00	13.00	0.10	5	1810817	1	IC900
797500601KMX	6.00	6.00	5.60	61.00	25.00	10.00	0.10	5	1810820	1	IC900
797500800KMX	8.00	8.00	7.50	61.00	25.00	17.00	0.10	5	1810822	1	IC900
797500801KMX	8.00	8.00	7.50	69.00	33.00	13.00	0.10	5	1810824	1	IC900
797501000KMX	10.00	10.00	9.50	72.00	32.00	22.00	0.10	5	1810827	1	IC900
797501001KMX	10.00	10.00	9.50	82.00	42.00	17.00	0.10	5	1810828	1	IC900
797501200KMX	12.00	12.00	11.50	83.00	38.00	26.00	0.20	5	1810830	1	IC900
797501201KMX	12.00	12.00	11.50	95.00	50.00	20.00	0.20	5	1810832	1	IC900
797501600KMX	16.00	16.00	15.50	100.00	50.00	34.00	0.20	5	1810834	1	IC900
797501601KMX	16.00	16.00	15.50	114.00	66.00	26.00	0.20	5	1810836	1	IC900
797502000KMX	20.00	20.00	19.50	112.00	62.00	42.00	0.20	5	1810838	1	IC900
797502001KMX	20.00	20.00	19.50	132.00	82.00	32.00	0.20	5	1810840	1	IC900

Click here for the Cutting Parameters for this family
