UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

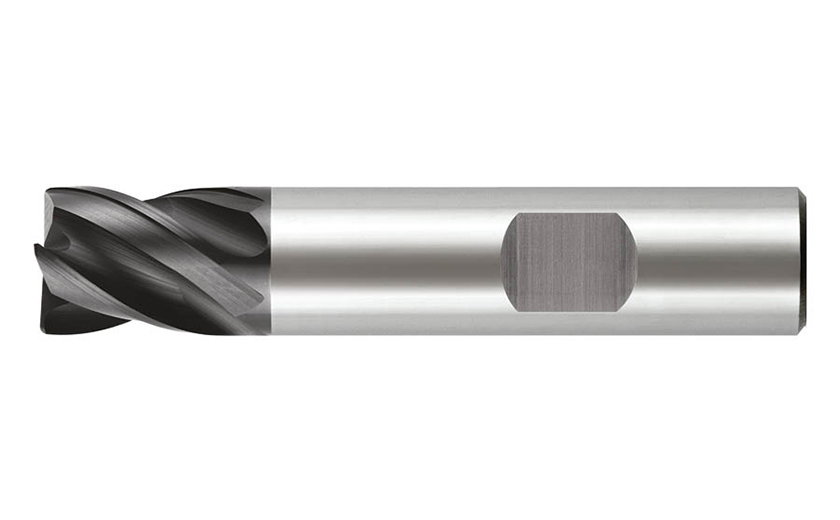

79705ST4 : When increased stability is required

Designation	GICODE	DC	DCONMS	OAL	APMX	RE	NOF	GICAT	giic	Grade
79705ST40200KMX		2.00	6.00	45.00	2.50	0.20	4	1920546	1	IC908
79705ST40250KMX	Y	2.50	6.00	45.00	3.00	0.20	4	1923740	0
79705ST40300KMX	Y	3.00	6.00	45.00	3.50	0.20	4	1923738	0
79705ST40350KMX	Y	3.50	6.00	45.00	4.00	0.20	4	1923735	0
79705ST40400KMX	Y	4.00	6.00	45.00	4.50	0.20	4	1923733	0
79705ST40450KMX	Y	4.50	6.00	45.00	5.00	0.20	4	1923730	0
79705ST40500KMX		5.00	6.00	45.00	5.50	0.20	4	1920547	1	IC908
79705ST40600KMX	Y	6.00	6.00	45.00	6.50	0.20	4	1923726	0
79705ST40800KMXW		8.00	8.00	52.00	9.00	0.30	4	1827522	0
79705ST41000KMXW		10.00	10.00	60.00	11.00	0.50	4	1827523	0
79705ST41200KMXW		12.00	12.00	69.00	13.00	0.50	4	1827524	0
79705ST41600KMXW		16.00	16.00	80.00	18.00	1.00	4	1827525	0

Click here for the Cutting Parameters for this family
