UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

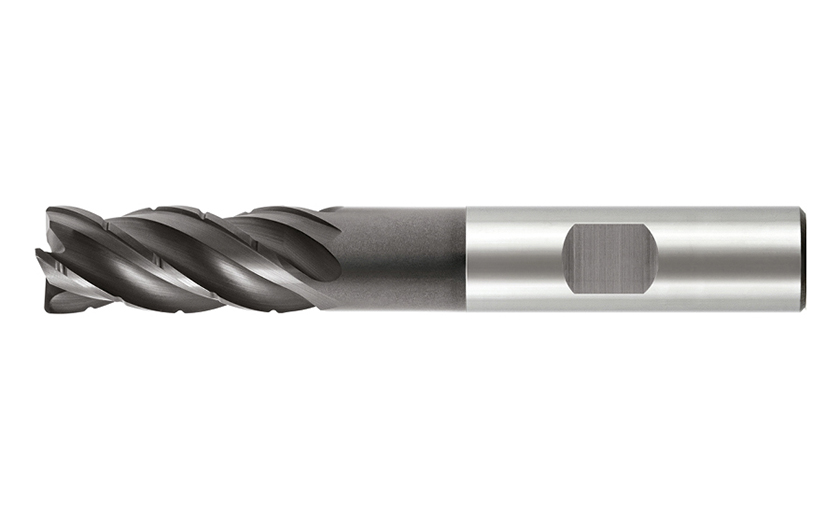

79710CS4 : Interrupted Cut Reduced Chip Size Slotting up to 2DC in the version with coolant channels on the shank

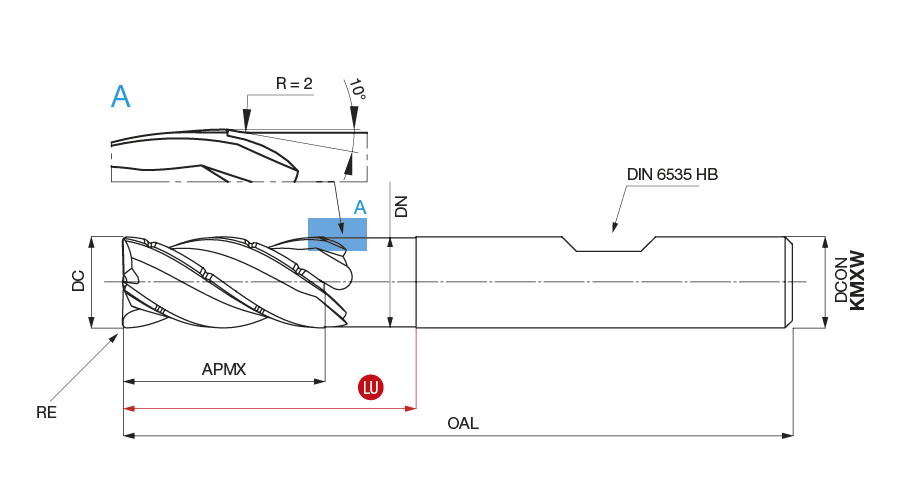

Designation	DC	DCONMS	DN	OAL	LU	APMX	RE	NOF	GICAT	giic	Grade
79710CS40800KMXW	8.00	8.00	7.80	63.00	26.00	18.00	0.30	4	1802857	1	IC900
79710CS40800KMXWG	8.00	8.00	7.80	63.00	26.00	18.00	0.30	4	1825580	1	IC900
79710CS40801KMXW	8.00	8.00	7.80	68.00	32.00	18.00	0.30	4	1802863	1	IC900
79710CS40801KMXWG	8.00	8.00	7.80	68.00	32.00	18.00	0.30	4	1825582	1	IC900
79710CS41000KMXW	10.00	10.00	9.80	72.00	32.00	22.00	0.50	4	1802864	1	IC900
79710CS41000KMXWG	10.00	10.00	9.80	72.00	32.00	22.00	0.50	4	1825587	1	IC900
79710CS41001KMXW	10.00	10.00	9.80	80.00	40.00	22.00	0.50	4	1802869	1	IC900
79710CS41001KMXWG	10.00	10.00	9.80	80.00	40.00	22.00	0.50	4	1825589	1	IC900
79710CS41200KMXW	12.00	12.00	11.70	83.00	38.00	26.00	0.50	4	1802873	1	IC900
79710CS41200KMXWG	12.00	12.00	11.70	83.00	38.00	26.00	0.50	4	1825590	1	IC900
79710CS41201KMXW	12.00	12.00	11.70	95.00	50.00	26.00	0.50	4	1802884	1	IC900
79710CS41201KMXWG	12.00	12.00	11.70	95.00	50.00	26.00	0.50	4	1825592	1	IC900
79710CS41400KMXW	14.00	14.00	13.70	83.00	38.00	30.00	0.50	4	1831390	1	IC900
79710CS41400KMXWG	14.00	14.00	13.70	83.00	38.00	30.00	0.50	4	1831376	1	IC900
79710CS41401KMXW	14.00	14.00	13.70	102.00	57.00	30.00	0.50	4	1831395	1	IC900
79710CS41401KMXWG	14.00	14.00	13.70	102.00	57.00	30.00	0.50	4	1831397	1	IC900
79710CS41600KMXW	16.00	16.00	15.70	100.00	50.00	34.00	1.00	4	1802885	1	IC900
79710CS41600KMXWG	16.00	16.00	15.70	100.00	50.00	34.00	1.00	4	1825593	1	IC900
79710CS41601KMXW	16.00	16.00	15.70	112.00	64.00	34.00	1.00	4	1802894	1	IC900
79710CS41601KMXWG	16.00	16.00	15.70	112.00	64.00	34.00	1.00	4	1825594	1	IC900
79710CS42000KMXW	20.00	20.00	19.70	112.00	62.00	42.00	1.00	4	1802904	1	IC900
79710CS42000KMXWG	20.00	20.00	19.70	112.00	62.00	42.00	1.00	4	1825606	1	IC900
79710CS42001KMXW	20.00	20.00	19.70	125.00	75.00	42.00	1.00	4	1802934	1	IC900
79710CS42001KMXWG	20.00	20.00	19.70	125.00	75.00	42.00	1.00	4	1825608	1	IC900
