UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

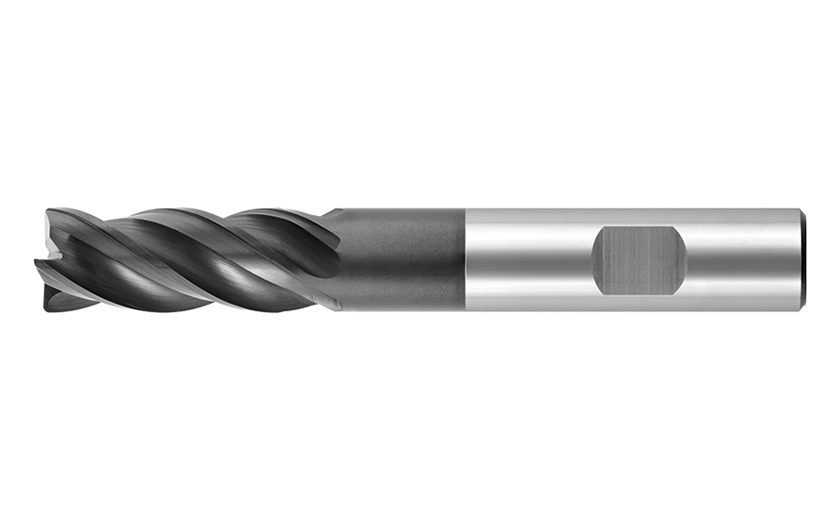

79710IC4 : Internal Coolant for:temperature control in the cutting area Optimal Chip Evacuation Slotting up to 1,5DC

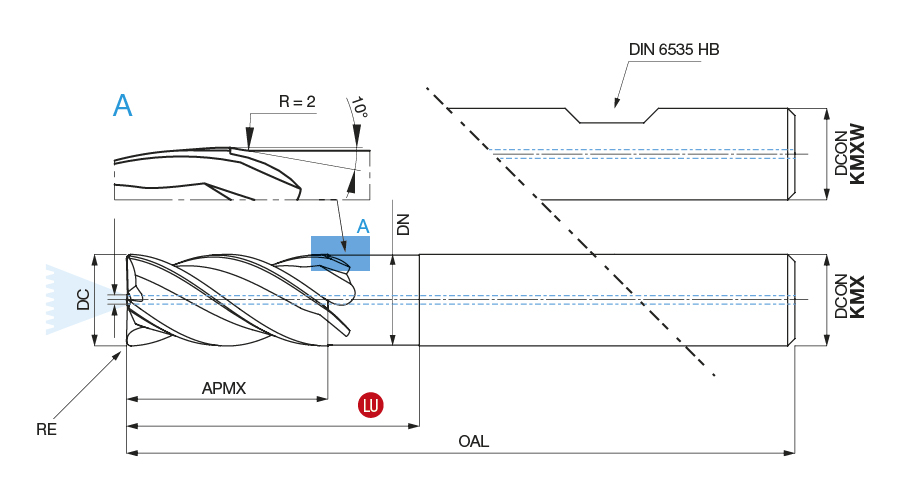

Designation	DC	DCONMS	DN	OAL	LU	APMX	RE	IC	NOF	GICAT
79710IC40600KMX	6.00	6.00	5.90	52.00	20.00	14.00	0.20	1.00	4	1809086
79710IC40601KMX	6.00	6.00	5.90	57.00	25.00	14.00	0.20	1.00	4	1809088
79710IC40800KMXW	8.00	8.00	7.80	63.00	26.00	18.00	0.30	1.30	4	1809090
79710IC40801KMXW	8.00	8.00	7.80	68.00	32.00	18.00	0.30	1.30	4	1809092
79710IC41000KMXW	10.00	10.00	9.80	72.00	32.00	22.00	0.50	2.00	4	1809094
79710IC41001KMXW	10.00	10.00	9.80	80.00	40.00	22.00	0.50	2.00	4	1809096
79710IC41200KMXW	12.00	12.00	11.70	83.00	38.00	26.00	0.50	2.00	4	1809098
79710IC41201KMXW	12.00	12.00	11.70	95.00	50.00	26.00	0.50	2.00	4	1809100
79710IC41600KMXW	16.00	16.00	15.70	100.00	50.00	34.00	1.00	2.00	4	1809102
79710IC41601KMXW	16.00	16.00	15.70	112.00	64.00	34.00	1.00	2.00	4	1809104
79710IC42000KMXW	20.00	20.00	19.70	112.00	62.00	42.00	1.00	3.00	4	1809106
79710IC42001KMXW	20.00	20.00	19.70	125.00	75.00	42.00	1.00	3.00	4	1809108

Click here for the Cutting Parameters for this family
