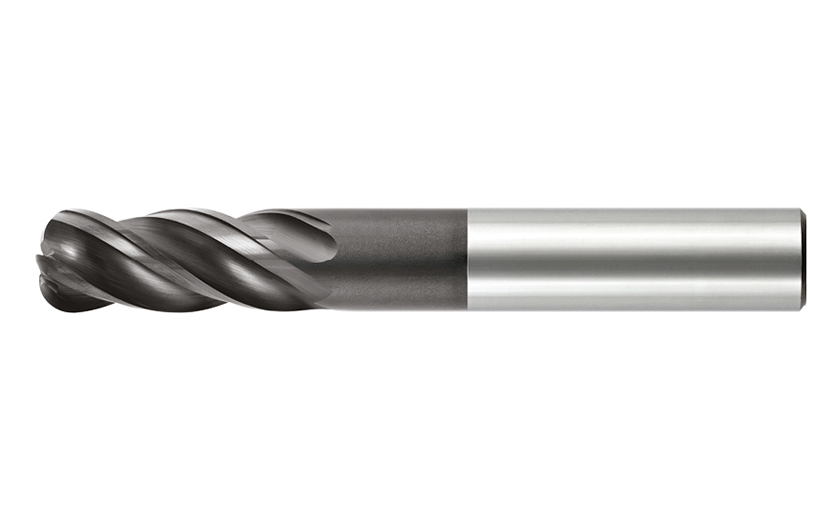

79710R : Radii in accordance with the Aerospace sector requirements. Slotting up to 1,5DC

SKIN POWER PLUS

QUALITY STANDARD UOP

STRAIGHT DIN1835A

WELDON ON REQUEST

NORMAL AND LONG

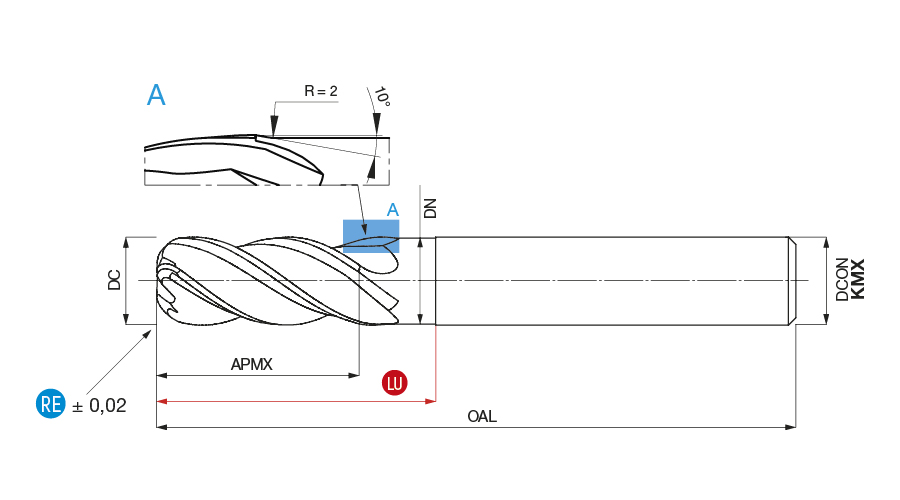

Designation	GICODE	DC	DCONMS	DN	OAL	LU	APMX	RE	NOF							GICAT	GIREM	giic
79710R050500KMX		5.00	6.00	4.90	52.00	16.00	13.00	0.50	4							1816300		0
79710R050501KMX		5.00	6.00	4.90	57.00	20.00	13.00	0.50	4							1816509		0
79710R050600KMX		6.00	6.00	5.90	52.00	20.00	14.00	0.50	4							1816553		0
79710R050601KMX		6.00	6.00	5.90	57.00	25.00	14.00	0.50	4							1816554		0
79710R080600KMX		6.00	6.00	5.90	52.00	20.00	14.00	0.80	4							1816566		0
79710R080601KMX		6.00	6.00	5.90	57.00	25.00	14.00	0.80	4							1816567		0
79710R100600KMX		6.00	6.00	5.90	52.00	20.00	14.00	1.00	4							1816569		0
79710R100601KMX		6.00	6.00	5.90	57.00	25.00	14.00	1.00	4							1816589		0
79710R150600KMX		6.00	6.00	5.90	52.00	20.00	14.00	1.50	4							1816590		0
79710R150601KMX		6.00	6.00	5.90	57.00	25.00	14.00	1.50	4							1816594		0
79710R200600KMX		6.00	6.00	5.90	52.00	20.00	14.00	2.00	4							1816595		0
79710R200601KMX		6.00	6.00	5.90	57.00	25.00	14.00	2.00	4							1816605		0
79710R050800KMX		8.00	8.00	7.80	63.00	26.00	18.00	0.50	4							1816471		0
79710R050801KMX		8.00	8.00	7.80	68.00	32.00	18.00	0.50	4							1816511		0
79710R080800KMX		8.00	8.00	7.80	63.00	26.00	18.00	0.80	4							1816625		0
79710R080801KMX		8.00	8.00	7.80	68.00	32.00	18.00	0.80	4							1816626		0
79710R100800KMX		8.00	8.00	7.80	63.00	26.00	18.00	1.00	4							1816630		0
79710R100801KMX		8.00	8.00	7.80	68.00	32.00	18.00	1.00	4							1816631		0
79710R150800KMX		8.00	8.00	7.80	63.00	26.00	18.00	1.50	4							1816642		0
79710R150801KMX		8.00	8.00	7.80	68.00	32.00	18.00	1.50	4							1816644		0
79710R200800KMX		8.00	8.00	7.80	63.00	26.00	18.00	2.00	4							1816663		0
79710R200801KMX		8.00	8.00	7.80	68.00	32.00	18.00	2.00	4							1816664		0
79710R250800KMX		8.00	8.00	7.80	63.00	26.00	18.00	2.50	4							1816669		0
79710R250801KMX		8.00	8.00	7.80	68.00	32.00	18.00	2.50	4							1816670		0
79710R300800KMX		8.00	8.00	7.80	63.00	26.00	18.00	3.00	4							1816671		0
79710R300801KMX		8.00	8.00	7.80	68.00	32.00	18.00	3.00	4							1816682		0
79710R081000KMX		10.00	10.00	9.80	72.00	32.00	22.00	0.80	4							1816684		0
79710R081001KMX		10.00	10.00	9.80	80.00	40.00	22.00	0.80	4							1816685		0
79710R101000KMX		10.00	10.00	9.80	72.00	32.00	22.00	1.00	4							1816686		0
79710R101001KMX		10.00	10.00	9.80	80.00	40.00	22.00	1.00	4							1816698		0
79710R151000KMX		10.00	10.00	9.80	72.00	32.00	22.00	1.50	4							1816699		0
79710R151001KMX		10.00	10.00	9.80	80.00	40.00	22.00	1.50	4							1816703		0
79710R201000KMX		10.00	10.00	9.80	72.00	32.00	22.00	2.00	4							1816704		0
79710R201001KMX		10.00	10.00	9.80	80.00	40.00	22.00	2.00	4							1816713		0
79710R251000KMX		10.00	10.00	9.80	72.00	32.00	22.00	2.50	4							1816714		0
79710R251001KMX		10.00	10.00	9.80	80.00	40.00	22.00	2.50	4							1816724		0
79710R301000KMX		10.00	10.00	9.80	72.00	32.00	22.00	3.00	4							1816725		0
79710R301001KMX		10.00	10.00	9.80	80.00	40.00	22.00	3.00	4							1816726		0
79710R081200KMX		12.00	12.00	11.70	83.00	38.00	26.00	0.80	4							1816735		0
79710R081201KMX		12.00	12.00	11.70	95.00	50.00	26.00	0.80	4							1816736		0
79710R101200KMX		12.00	12.00	11.70	83.00	38.00	26.00	1.00	4							1816737		0
79710R101201KMX		12.00	12.00	11.70	95.00	50.00	26.00	1.00	4							1816748		0
79710R151200KMX		12.00	12.00	11.70	83.00	38.00	26.00	1.50	4							1816760		0
79710R151201KMX		12.00	12.00	11.70	95.00	50.00	26.00	1.50	4							1816771		0
79710R201200KMX		12.00	12.00	11.70	83.00	38.00	26.00	2.00	4							1816772		0
79710R201201KMX		12.00	12.00	11.70	95.00	50.00	26.00	2.00	4							1816775		0
79710R251200KMX		12.00	12.00	11.70	83.00	38.00	26.00	2.50	4							1816776		0
79710R251201KMX		12.00	12.00	11.70	95.00	50.00	26.00	2.50	4							1816799		0
79710R301200KMX		12.00	12.00	11.70	83.00	38.00	26.00	3.00	4							1816800		0
79710R301201KMX		12.00	12.00	11.70	95.00	50.00	26.00	3.00	4							1816801		0
79710R351200KMX		12.00	12.00	11.70	83.00	38.00	26.00	3.50	4							1816803		0
79710R351201KMX		12.00	12.00	11.70	95.00	50.00	26.00	3.50	4							1816812		0
79710R401200KMX		12.00	12.00	11.70	83.00	38.00	26.00	4.00	4							1816813		0
79710R401201KMX		12.00	12.00	11.70	95.00	50.00	26.00	4.00	4							1816814		0
79710R081400KMX		14.00	14.00	13.70	83.00	38.00	30.00	0.80	4							1816826		0
79710R081401KMX		14.00	14.00	13.70	102.00	57.00	30.00	0.80	4							1816827		0
79710R151400KMX		14.00	14.00	13.70	83.00	38.00	30.00	1.50	4							1816836		0
79710R151401KMX		14.00	14.00	13.70	102.00	57.00	30.00	1.50	4							1816837		0
79710R301400KMX		14.00	14.00	13.70	83.00	38.00	30.00	3.00	4							1816838		0
79710R301401KMX		14.00	14.00	13.70	102.00	57.00	30.00	3.00	4							1816848		0
79710R151600KMX		16.00	16.00	15.70	100.00	50.00	34.00	1.50	4							1816849		0
79710R151601KMX		16.00	16.00	15.70	112.00	64.00	34.00	1.50	4							1816860		0
79710R201600KMX		16.00	16.00	15.70	100.00	50.00	34.00	2.00	4							1816861		0
79710R201601KMX		16.00	16.00	15.70	112.00	64.00	34.00	2.00	4							1816870		0
79710R251600KMX		16.00	16.00	15.70	100.00	50.00	34.00	2.50	4							1816871		0
79710R251601KMX		16.00	16.00	15.70	112.00	64.00	34.00	2.50	4							1816872		0
79710R301600KMX		16.00	16.00	15.70	100.00	50.00	34.00	3.00	4							1816880		0
79710R301601KMX		16.00	16.00	15.70	112.00	64.00	34.00	3.00	4							1816881		0
79710R351600KMX		16.00	16.00	15.70	100.00	50.00	34.00	3.50	4							1816890		0
79710R351601KMX		16.00	16.00	15.70	112.00	64.00	34.00	3.50	4							1816891		0
79710R401600KMX		16.00	16.00	15.70	100.00	50.00	34.00	4.00	4							1816899		0
79710R401601KMX		16.00	16.00	15.70	112.00	64.00	34.00	4.00	4							1816900		0
79710R501600KMX		16.00	16.00	15.70	100.00	50.00	34.00	5.00	4							1816901		0
79710R501601KMX		16.00	16.00	15.70	112.00	64.00	34.00	5.00	4							1816909		0
79710R152000KMX		20.00	20.00	19.70	112.00	62.00	42.00	1.50	4							1816910		0
79710R152001KMX		20.00	20.00	19.70	125.00	75.00	42.00	1.50	4							1816918		0
79710R202000KMX		20.00	20.00	19.70	112.00	62.00	42.00	2.00	4							1816920		0
79710R202001KMX		20.00	20.00	19.70	125.00	75.00	42.00	2.00	4							1816921		0
79710R252000KMX		20.00	20.00	19.70	112.00	62.00	42.00	2.50	4							1816922		0
79710R252001KMX		20.00	20.00	19.70	125.00	75.00	42.00	2.50	4							1816923		0
79710R302000KMX		20.00	20.00	19.70	112.00	62.00	42.00	3.00	4							1816924		0
79710R302001KMX		20.00	20.00	19.70	125.00	75.00	42.00	3.00	4							1816925		0
79710R352000KMX		20.00	20.00	19.70	112.00	62.00	42.00	3.50	4							1816926		0
79710R352001KMX		20.00	20.00	19.70	125.00	75.00	42.00	3.50	4							1816927		0
79710R402000KMX		20.00	20.00	19.70	112.00	62.00	42.00	4.00	4							1816928		0
79710R402001KMX		20.00	20.00	19.70	125.00	75.00	42.00	4.00	4							1816929		0
79710R502000KMX		20.00	20.00	19.70	112.00	62.00	42.00	5.00	4							1816930		0
79710R502001KMX		20.00	20.00	19.70	125.00	75.00	42.00	5.00	4							1816931		0
79710R602000KMX		20.00	20.00	19.70	112.00	62.00	42.00	6.00	4							1831324		0
79710R602001KMX		20.00	20.00	19.70	125.00	75.00	42.00	6.00	4							1831328		0
79710R6352000KMX		20.00	20.00	19.70	112.00	62.00	42.00	6.35	4							1831331		0
79710R6352001KMX		20.00	20.00	19.70	125.00	75.00	42.00	6.35	4							1831334		0
79710R302500KMX		25.00	25.00	24.70	125.00	69.00	50.00	3.00	4							1816932		0
79710R302501KMX		25.00	25.00	24.70	151.00	95.00	50.00	3.00	4							1816933		0
79710R352500KMX		25.00	25.00	24.70	125.00	69.00	50.00	3.50	4							1816934		0
79710R352501KMX		25.00	25.00	24.70	151.00	95.00	50.00	3.50	4							1816935		0
79710R402500KMX		25.00	25.00	24.70	125.00	69.00	50.00	4.00	4							1816936		0
79710R402501KMX		25.00	25.00	24.70	151.00	95.00	50.00	4.00	4							1816937		0
79710R502500KMX		25.00	25.00	24.70	125.00	69.00	50.00	5.00	4							1816938		0
79710R502501KMX		25.00	25.00	24.70	151.00	95.00	50.00	5.00	4							1816939		0
79710R602500KMX		25.00	25.00	24.70	125.00	69.00	50.00	6.00	4							1816940		0
79710R602501KMX		25.00	25.00	24.70	151.00	95.00	50.00	6.00	4							1816941		0
79710R6352500KMX		25.00	25.00	24.70	125.00	69.00	50.00	6.35	4							1831340		0
79710R6352501KMX		25.00	25.00	24.70	151.00	95.00	50.00	6.35	4							1831343		0
