UOP Cutting Tools - Metal Working Tools - Milling -

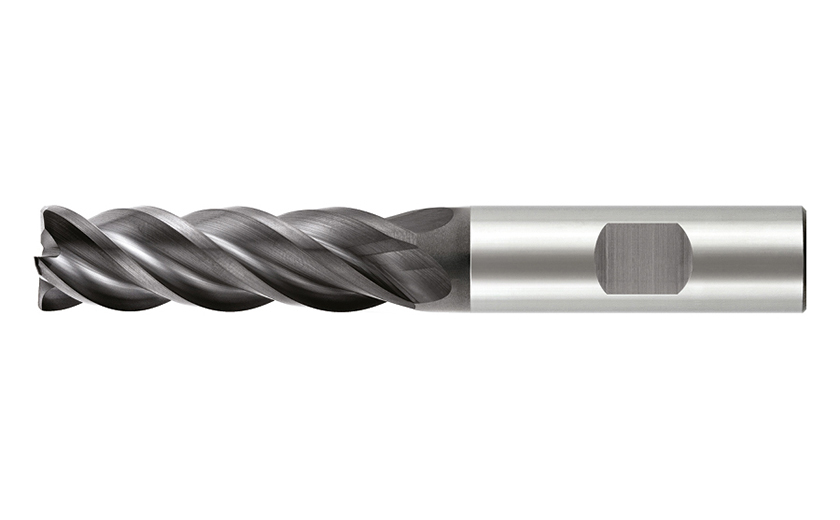

79710MC : High reliability and high chip volume rate even on low-powermachines. Slotting up to 3DC

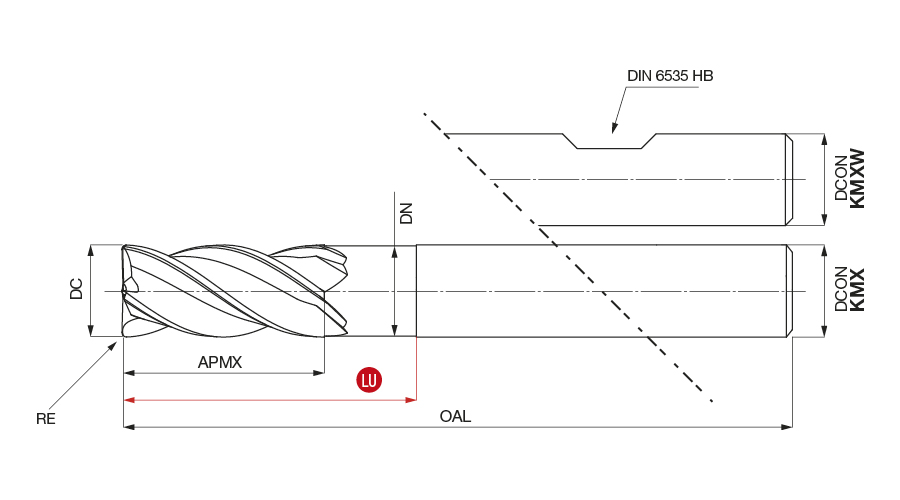

Designation	GICODE	DC	DCONMS	DN	OAL	LU	APMX	RE	NOF	GICAT
79710MC0600KMX		6.00	6.00	6.00	57.00	7.00	7.00	0.20	4	1830070
79710MC0601KMX		6.00	6.00	6.00	57.00	14.00	14.00	0.20	4	1830071
79710MC0602KMX		6.00	6.00	5.90	57.00	20.00	14.00	0.20	4	1830072
79710MC0603KMX		6.00	6.00	6.00	62.00	25.00	20.00	0.20	4	1830073
79710MC0800KMXW	Y	8.00	8.00	8.00	63.00	9.00	9.00	0.30	4	1830074
79710MC0801KMXW		8.00	8.00	8.00	63.00	18.00	18.00	0.30	4	1830298
79710MC0802KMXW		8.00	8.00	7.80	63.00	26.00	18.00	0.30	4	1830299
79710MC0803KMXW		8.00	8.00	8.00	70.00	26.00	26.00	0.30	4	1830301
79710MC1000KMXW		10.00	10.00	10.00	72.00	11.00	11.00	0.50	4	1830302
79710MC1001KMXW		10.00	10.00	10.00	72.00	22.00	22.00	0.50	4	1830314
79710MC1002KMXW		10.00	10.00	9.80	72.00	32.00	22.00	0.50	4	1830319
79710MC1003KMXW		10.00	10.00	10.00	83.00	33.00	33.00	0.50	4	1830320
79710MC1200KMXW		12.00	12.00	12.00	83.00	13.00	13.00	0.50	4	1830321
79710MC1201KMXW		12.00	12.00	12.00	83.00	26.00	26.00	0.50	4	1830322
79710MC1202KMXW		12.00	12.00	11.70	83.00	38.00	26.00	0.50	4	1830324
79710MC1203KMXW		12.00	12.00	12.00	96.00	39.00	39.00	0.50	4	1830326
79710MC1600KMXW		16.00	16.00	16.00	100.00	18.00	18.00	1.00	4	1830339
79710MC1601KMXW		16.00	16.00	16.00	100.00	34.00	34.00	1.00	4	1830340
79710MC1602KMXW		16.00	16.00	15.70	100.00	50.00	34.00	1.00	4	1830354
79710MC1603KMXW		16.00	16.00	16.00	116.00	52.00	52.00	1.00	4	1830357
79710MC2000KMXW		20.00	20.00	20.00	112.00	22.00	22.00	1.00	4	1830369
79710MC2001KMXW		20.00	20.00	20.00	112.00	42.00	42.00	1.00	4	1830372
79710MC2002KMXW		20.00	20.00	19.70	112.00	62.00	42.00	1.00	4	1830374
79710MC2003KMXW		20.00	20.00	20.00	135.00	65.00	65.00	1.00	4	1830375

Click here for the Cutting Parameters for this family

Milling
Main Application
