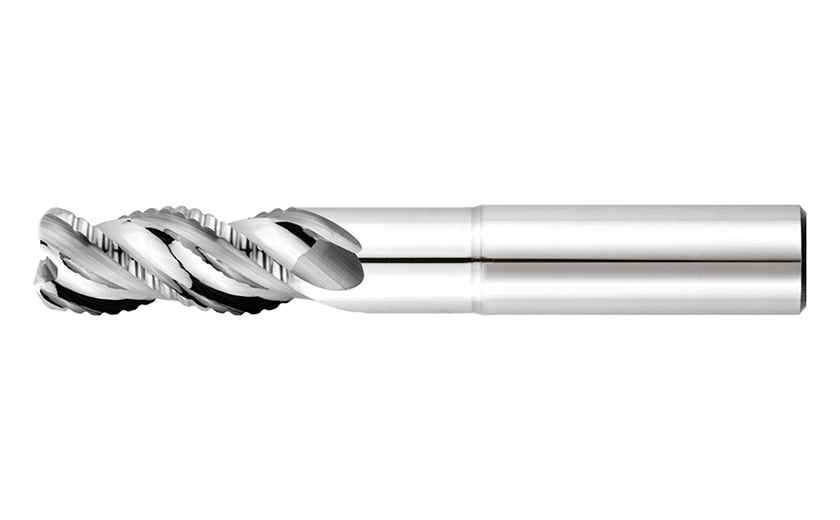

797ALUCBIC : Optimal chip control in high metal removal rate machining. Vibrationless.

QUALITY STANDARD UOP

STRAIGHT DIN1835A

NORMAL AND LONG

Designation	GICODE	DC	DCONMS	DN	OAL	LU	APMX	RE	IC	NOF		GICAT	GIREM	giic
797ALUCBICR040601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.40	1.00	3		1835777		0
797ALUCBICR040801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.40	1.30	3		1835778		0
797ALUCBICR041001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.40	2.00	3		1835779		0
797ALUCBICR041200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.40	2.00	3		1830798		0
797ALUCBICR041201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.40	2.00	3		1830822		0
797ALUCBICR041202KM		12.00	12.00	11.30	118.00	72.00	18.00	0.40	2.00	3		1841167		0
797ALUCBICR161200KM		12.00	12.00	11.30	94.00	48.00	26.00	1.60	2.00	3		1830804		0
797ALUCBICR161201KM		12.00	12.00	11.30	106.00	60.00	18.00	1.60	2.00	3		1830838		0
797ALUCBICR201200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.00	2.00	3		1830805		0
797ALUCBICR201201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.00	2.00	3		1830840		0
797ALUCBICR251200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.50	2.00	3		1830820		0
797ALUCBICR251201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.50	2.00	3		1830853		0
797ALUCBICR321200KM		12.00	12.00	11.30	94.00	48.00	26.00	3.20	2.00	3		1841197		0
797ALUCBICR321201KM		12.00	12.00	11.30	106.00	60.00	18.00	3.20	2.00	3		1841199		0
797ALUCBICR321202KM		12.00	12.00	11.30	118.00	72.00	18.00	3.20	2.00	3		1841170		0
797ALUCBICR081400KM		14.00	14.00	13.20	102.00	56.00	31.00	0.80	2.00	3		1835780		0
797ALUCBICR081401KM		14.00	14.00	13.20	116.00	70.00	21.00	0.80	2.00	3		1835781		0
797ALUCBICR201400KM		14.00	14.00	13.20	102.00	56.00	31.00	2.00	2.00	3		1835783		0
797ALUCBICR201401KM		14.00	14.00	13.20	116.00	70.00	21.00	2.00	2.00	3		1835784		0
797ALUCBICR301400KM		14.00	14.00	13.20	102.00	56.00	31.00	3.00	2.00	3		1835785		0
797ALUCBICR301401KM		14.00	14.00	13.20	116.00	70.00	21.00	3.00	2.00	3		1835786		0
797ALUCBICR081600KM		16.00	16.00	15.20	113.00	64.00	35.00	0.80	2.00	3		1830857		0
797ALUCBICR081601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.80	2.00	3		1830889		0
797ALUCBICR081602KM		16.00	16.00	15.20	145.00	96.00	24.00	0.80	2.00	3		1841172		0
797ALUCBICR08162DKM		16.00	16.00	15.20	81.00	35.00	24.00	0.80	2.00	3		1845256		0
797ALUCBICR08163DKM		16.00	16.00	15.20	96.00	48.00	35.00	0.80	2.00	3		1845258		0
797ALUCBICR161600KM		16.00	16.00	15.20	113.00	64.00	35.00	1.60	2.00	3		1830858		0
797ALUCBICR161601KM		16.00	16.00	15.20	129.00	80.00	24.00	1.60	2.00	3		1830890		0
797ALUCBICR201600KM		16.00	16.00	15.20	113.00	64.00	35.00	2.00	2.00	3		1830864		0
797ALUCBICR201601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.00	2.00	3		1831186		0
797ALUCBICR251600KM		16.00	16.00	15.20	113.00	64.00	35.00	2.50	2.00	3		1830866		0
797ALUCBICR251601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.50	2.00	3		1831196		0
797ALUCBICR321600KM		16.00	16.00	15.20	113.00	64.00	35.00	3.20	2.00	3		1830869		0
797ALUCBICR321601KM		16.00	16.00	15.20	129.00	80.00	24.00	3.20	2.00	3		1831199		0
797ALUCBICR321602KM		16.00	16.00	15.20	145.00	96.00	24.00	3.20	2.00	3		1841175		0
797ALUCBICR32162DKM		16.00	16.00	15.20	81.00	35.00	24.00	3.20	2.00	3		1845260		0
797ALUCBICR32163DKM		16.00	16.00	15.20	96.00	48.00	35.00	3.20	2.00	3		1845262		0
797ALUCBICR401600KM		16.00	16.00	15.20	113.00	64.00	35.00	4.00	2.00	3		1830882		0
797ALUCBICR401601KM		16.00	16.00	15.20	129.00	80.00	24.00	4.00	2.00	3		1831208		0
797ALUCBICR501600KM		16.00	16.00	15.20	113.00	64.00	35.00	5.00	2.00	3		1830884		0
797ALUCBICR501601KM		16.00	16.00	15.20	129.00	80.00	24.00	5.00	2.00	3		1831225		0
797ALUCBICR082000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.80	3.00	3		1831234		0
797ALUCBICR082001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.80	3.00	3		1831244		0
797ALUCBICR082002KM		20.00	20.00	19.00	172.00	120.00	30.00	0.80	3.00	3		1841177		0
797ALUCBICR08202DKM		20.00	20.00	19.00	94.00	44.00	30.00	0.80	3.00	3		1845264		0
797ALUCBICR08203DKM		20.00	20.00	19.00	108.00	60.00	44.00	0.80	3.00	3		1845266		0
797ALUCBICR162000KM		20.00	20.00	19.00	131.00	80.00	44.00	1.60	3.00	3		1831236		0
797ALUCBICR162001KM		20.00	20.00	19.00	151.00	100.00	30.00	1.60	3.00	3		1831247		0
797ALUCBICR202000KM		20.00	20.00	19.00	131.00	80.00	44.00	2.00	3.00	3		1831237		0
797ALUCBICR202001KM		20.00	20.00	19.00	151.00	100.00	30.00	2.00	3.00	3		1831248		0
797ALUCBICR322000KM		20.00	20.00	19.00	131.00	80.00	44.00	3.20	3.00	3		1831238		0
797ALUCBICR322001KM		20.00	20.00	19.00	151.00	100.00	30.00	3.20	3.00	3		1831249		0
797ALUCBICR322002KM		20.00	20.00	19.00	172.00	120.00	30.00	3.20	3.00	3		1841180		0
797ALUCBICR32202DKM		20.00	20.00	19.00	94.00	44.00	30.00	3.20	3.00	3		1845268		0
797ALUCBICR32203DKM		20.00	20.00	19.00	108.00	60.00	44.00	3.20	3.00	3		1845270		0
797ALUCBICR402000KM		20.00	20.00	19.00	131.00	80.00	44.00	4.00	3.00	3		1831239		0
797ALUCBICR402001KM		20.00	20.00	19.00	151.00	100.00	30.00	4.00	3.00	3		1831250		0
797ALUCBICR502000KM		20.00	20.00	19.00	131.00	80.00	44.00	5.00	3.00	3		1831242		0
797ALUCBICR502001KM		20.00	20.00	19.00	151.00	100.00	30.00	5.00	3.00	3		1831251		0
797ALUCBICR602000KM		20.00	20.00	19.00	131.00	80.00	44.00	6.00	3.00	3		1831243		0
797ALUCBICR602001KM		20.00	20.00	19.00	151.00	100.00	30.00	6.00	3.00	3		1831252		0
797ALUCBICR082500KM		25.00	25.00	23.50	157.00	100.00	55.00	0.80	3.00	3		1831253		0
797ALUCBICR082501KM		25.00	25.00	23.50	185.00	125.00	38.00	0.80	3.00	3		1841187		0
797ALUCBICR082502KM		25.00	25.00	23.50	210.00	150.00	38.00	0.80	3.00	3		1841182		0
797ALUCBICR08252DKM		25.00	25.00	23.50	108.00	54.00	38.00	0.80	3.00	3		1845272		0
797ALUCBICR08253DKM		25.00	25.00	23.50	131.00	75.00	55.00	0.80	3.00	3		1845275		0
797ALUCBICR162500KM		25.00	25.00	23.50	157.00	100.00	55.00	1.60	3.00	3		1831254		0
797ALUCBICR202500KM		25.00	25.00	23.50	157.00	100.00	55.00	2.00	3.00	3		1831255		0
797ALUCBICR202501KM		25.00	25.00	23.50	185.00	125.00	38.00	2.00	3.00	3		1841189		0
797ALUCBICR322500KM		25.00	25.00	23.50	157.00	100.00	55.00	3.20	3.00	3		1831256		0
797ALUCBICR322501KM		25.00	25.00	23.50	185.00	125.00	38.00	3.20	3.00	3		1841191		0
797ALUCBICR322502KM		25.00	25.00	23.50	210.00	150.00	38.00	3.20	3.00	3		1841185		0
797ALUCBICR32252DKM		25.00	25.00	23.50	108.00	54.00	38.00	3.20	3.00	3		1845277		0
797ALUCBICR32253DKM		25.00	25.00	23.50	131.00	75.00	55.00	3.20	3.00	3		1845279		0
797ALUCBICR402500KM		25.00	25.00	23.50	157.00	100.00	55.00	4.00	3.00	3		1835787		0
797ALUCBICR502500KM		25.00	25.00	23.50	157.00	100.00	55.00	5.00	3.00	3		1835788		0
797ALUCBICR602500KM		25.00	25.00	23.50	157.00	100.00	55.00	6.00	3.00	3		1835789		0
797ALUCBICR6352500KM		25.00	25.00	23.50	157.00	100.00	55.00	6.35	3.00	3		1835790		0

Click here for the Cutting Parameters for this family
