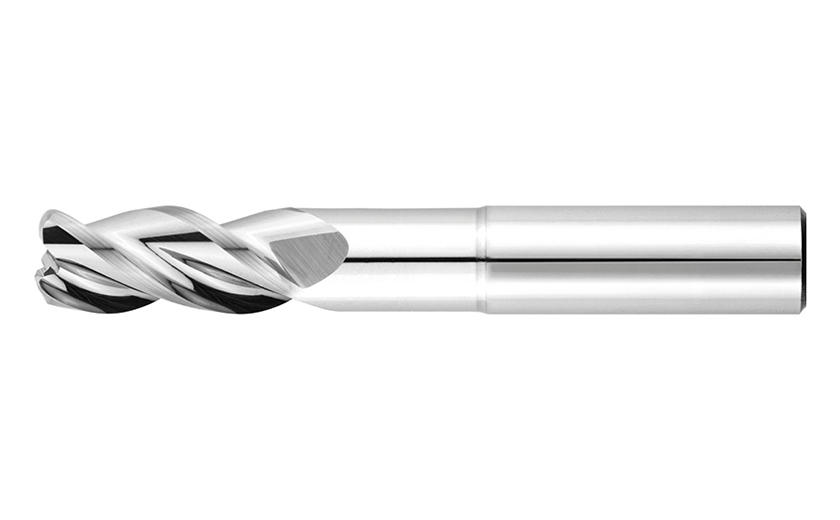

797ALU : Highly stable process even with overhang up to 5DC. Vibrationless.

QUALITY STANDARD UOP

STRAIGHT DIN1835A

NORMAL AND LONG

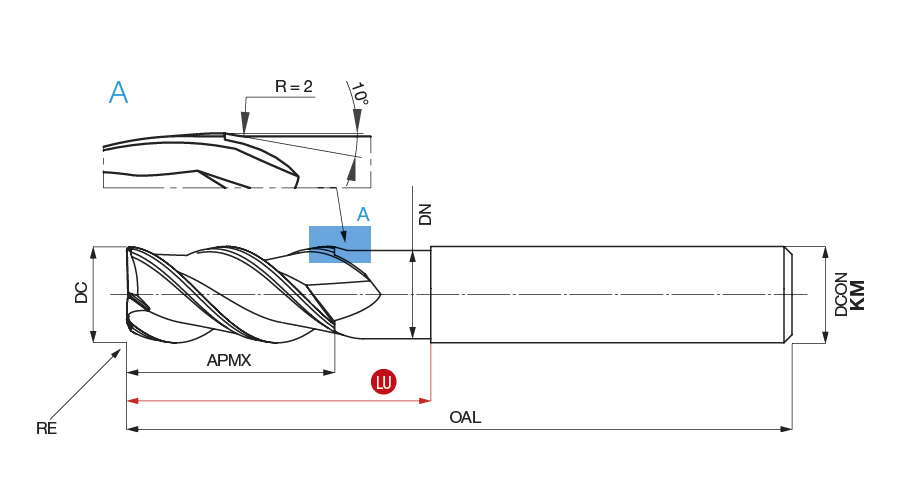

Designation	GICODE	DC	DCONMS	DN	OAL	LU	APMX	RE	NOF		GICAT	GIREM	giic
797ALUR010200KM		2.00	6.00	2.00	35.00	6.50	5.00	0.10	3		1830867		0
797ALUR010300KM		3.00	6.00	2.80	38.00	10.00	7.00	0.10	3		1830863		0
797ALUR020400KM		4.00	6.00	3.75	42.00	13.50	10.00	0.20	3		1830861		0
797ALUR020500KM		5.00	6.00	4.70	46.00	18.50	12.00	0.20	3		1830859		0
797ALUR020600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.20	3		1830841		0
797ALUR020601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.20	3		1830821		0
797ALUR040600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.40	3		1830837		0
797ALUR040601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.40	3		1830818		0
797ALUR080600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.80	3		1830824		0
797ALUR080601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.80	3		1830806		0
797ALUR020800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.20	3		1830802		0
797ALUR020801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.20	3		1830770		0
797ALUR040800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.40	3		1830786		0
797ALUR040801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.40	3		1830740		0
797ALUR080800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.80	3		1830783		0
797ALUR080801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.80	3		1830720		0
797ALUR001000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.00	3		1830718		0
797ALUR001001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.00	3		1830670		0
797ALUR021000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.20	3		1830716		0
797ALUR021001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.20	3		1830626		0
797ALUR041000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.40	3		1830711		0
797ALUR041001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.40	3		1830624		0
797ALUR081000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.80	3		1830706		0
797ALUR081001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.80	3		1830620		0
797ALUR161000KM		10.00	10.00	9.50	81.00	40.00	22.00	1.60	3		1830673		0
797ALUR161001KM		10.00	10.00	9.50	91.00	50.00	15.00	1.60	3		1830608		0
797ALUR001200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.00	3		1830604		0
797ALUR001201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.00	3		1830550		0
797ALUR021200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.20	3		1830592		0
797ALUR021201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.20	3		1830548		0
797ALUR041200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.40	3		1830579		0
797ALUR041201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.40	3		1830546		0
797ALUR081200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.80	3		1830577		0
797ALUR081201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.80	3		1830543		0
797ALUR161200KM		12.00	12.00	11.30	94.00	48.00	26.00	1.60	3		1830574		0
797ALUR161201KM		12.00	12.00	11.30	106.00	60.00	18.00	1.60	3		1830449		0
797ALUR201200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.00	3		1830571		0
797ALUR201201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.00	3		1830437		0
797ALUR251200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.50	3		1830565		0
797ALUR251201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.50	3		1830432		0
797ALUR001600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.00	3		1830420		0
797ALUR001601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.00	3		1830891		0
797ALUR021600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.20	3		1830405		0
797ALUR021601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.20	3		1830893		0
797ALUR041600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.40	3		1830403		0
797ALUR041601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.40	3		1830895		0
797ALUR081600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.80	3		1830393		0
797ALUR081601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.80	3		1830906		0
797ALUR161600KM		16.00	16.00	15.20	116.00	64.00	35.00	1.60	3		1830379		0
797ALUR161601KM		16.00	16.00	15.20	129.00	80.00	24.00	1.60	3		1830908		0
797ALUR201600KM		16.00	16.00	15.20	116.00	64.00	35.00	2.00	3		1830373		0
797ALUR201601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.00	3		1830910		0
797ALUR251600KM		16.00	16.00	15.20	116.00	64.00	35.00	2.50	3		1830358		0
797ALUR251601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.50	3		1830923		0
797ALUR321600KM		16.00	16.00	15.20	116.00	64.00	35.00	3.20	3		1830353		0
797ALUR321601KM		16.00	16.00	15.20	129.00	80.00	24.00	3.20	3		1830927		0
797ALUR401600KM		16.00	16.00	15.20	116.00	64.00	35.00	4.00	3		1830325		0
797ALUR401601KM		16.00	16.00	15.20	129.00	80.00	24.00	4.00	3		1830929		0
797ALUR501600KM		16.00	16.00	15.20	116.00	64.00	35.00	5.00	3		1830318		0
797ALUR501601KM		16.00	16.00	15.20	129.00	80.00	24.00	5.00	3		1830940		0
797ALUR002000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.00	3		1830942		0
797ALUR002001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.00	3		1831020		0
797ALUR022000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.20	3		1830944		0
797ALUR022001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.20	3		1831030		0
797ALUR042000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.40	3		1830956		0
797ALUR042001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.40	3		1831033		0
797ALUR082000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.80	3		1830958		0
797ALUR082001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.80	3		1831044		0
797ALUR162000KM		20.00	20.00	19.00	131.00	80.00	44.00	1.60	3		1830968		0
797ALUR162001KM		20.00	20.00	19.00	151.00	100.00	30.00	1.60	3		1831055		0
797ALUR202000KM		20.00	20.00	19.00	131.00	80.00	44.00	2.00	3		1830970		0
797ALUR202001KM		20.00	20.00	19.00	151.00	100.00	30.00	2.00	3		1831057		0
797ALUR322000KM		20.00	20.00	19.00	131.00	80.00	44.00	3.20	3		1830981		0
797ALUR322001KM		20.00	20.00	19.00	151.00	100.00	30.00	3.20	3		1831070		0
797ALUR402000KM		20.00	20.00	19.00	131.00	80.00	44.00	4.00	3		1831002		0
797ALUR402001KM		20.00	20.00	19.00	151.00	100.00	30.00	4.00	3		1831072		0
797ALUR502000KM		20.00	20.00	19.00	131.00	80.00	44.00	5.00	3		1831015		0
797ALUR502001KM		20.00	20.00	19.00	151.00	100.00	30.00	5.00	3		1831083		0
797ALUR602000KM		20.00	20.00	19.00	131.00	80.00	44.00	6.00	3		1831018		0
797ALUR602001KM		20.00	20.00	19.00	151.00	100.00	30.00	6.00	3		1831085		0
797ALUR002500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.00	3		1831087		0
797ALUR002501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.00	3		1831150		0
797ALUR022500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.20	3		1831098		0
797ALUR022501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.20	3		1831152		0
797ALUR042500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.40	3		1831100		0
797ALUR042501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.40	3		1831161		0
797ALUR162500KM		25.00	25.00	23.50	151.00	100.00	55.00	1.60	3		1831102		0
797ALUR162501KM		25.00	25.00	23.50	182.00	125.00	38.00	1.60	3		1831164		0
797ALUR202500KM		25.00	25.00	23.50	151.00	100.00	55.00	2.00	3		1831111		0
797ALUR202501KM		25.00	25.00	23.50	182.00	125.00	38.00	2.00	3		1831175		0
797ALUR322500KM		25.00	25.00	23.50	151.00	100.00	55.00	3.20	3		1831113		0
797ALUR322501KM		25.00	25.00	23.50	182.00	125.00	38.00	3.20	3		1831184		0
797ALUR402500KM		25.00	25.00	23.50	151.00	100.00	55.00	4.00	3		1831123		0
797ALUR402501KM		25.00	25.00	23.50	182.00	125.00	38.00	4.00	3		1831187		0
797ALUR502500KM		25.00	25.00	23.50	151.00	100.00	55.00	5.00	3		1831125		0
797ALUR502501KM		25.00	25.00	23.50	182.00	125.00	38.00	5.00	3		1831198		0
797ALUR602500KM		25.00	25.00	23.50	151.00	100.00	55.00	6.00	3		1831127		0
797ALUR602501KM		25.00	25.00	23.50	182.00	125.00	38.00	6.00	3		1831216		0
797ALUR642500KM		25.00	25.00	23.50	151.00	100.00	55.00	6.40	3		1831138		0
797ALUR642501KM		25.00	25.00	23.50	182.00	125.00	38.00	6.40	3		1831226		0

Click here for the Cutting Parameters for this family
