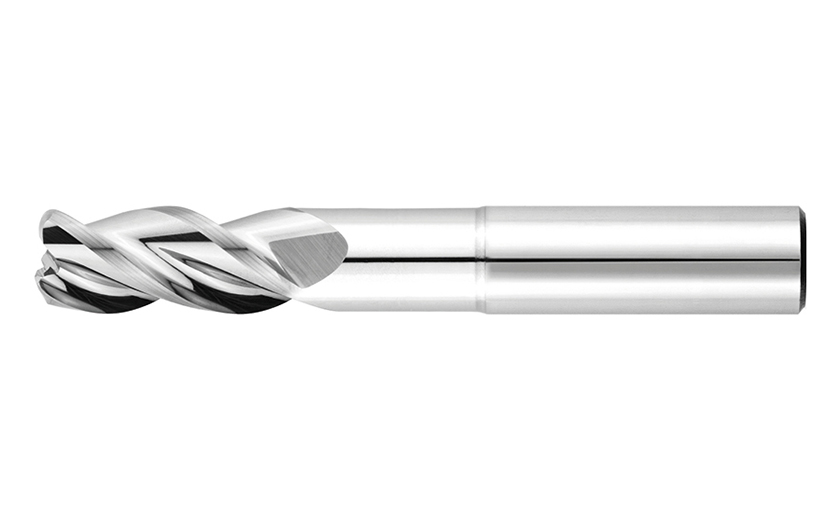

797ALUIC : Highly stable process even with overhang up to 5CD. Vibrationless.

QUALITY STANDARD UOP

STRAIGHT DIN1835A

NORMAL AND LONG

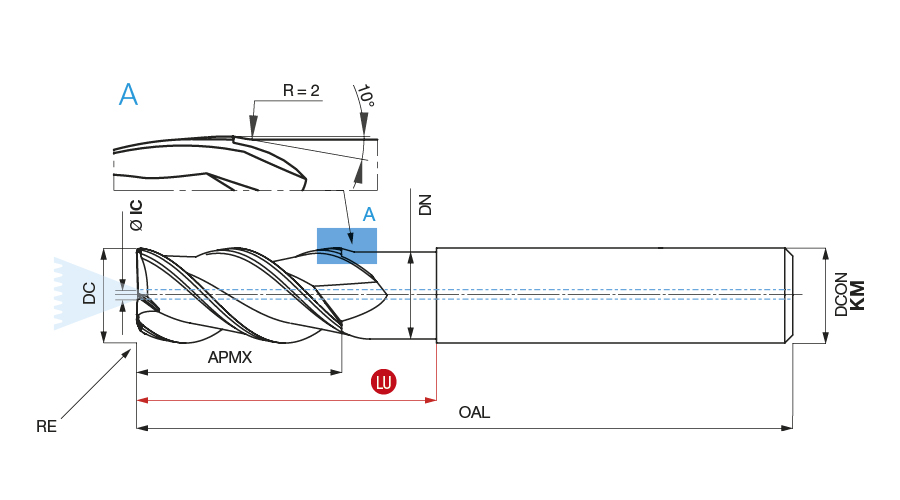

Designation	GICODE	DC	DCONMS	DN	OAL	LU	APMX	RE	IC	NOF		GICAT	GIREM	giic
797ALUICR020600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.20	1.00	3		1831399		0
797ALUICR020601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.20	1.00	3		1831402		0
797ALUICR040600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.40	1.00	3		1831400		0
797ALUICR040601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.40	1.00	3		1831405		0
797ALUICR080600KM		6.00	6.00	5.70	50.00	24.00	14.00	0.80	1.00	3		1831401		0
797ALUICR080601KM		6.00	6.00	5.70	56.00	30.00	9.00	0.80	1.00	3		1831406		0
797ALUICR020800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.20	1.30	3		1831407		0
797ALUICR020801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.20	1.30	3		1831410		0
797ALUICR040800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.40	1.30	3		1831408		0
797ALUICR040801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.40	1.30	3		1831411		0
797ALUICR080800KM		8.00	8.00	7.60	68.00	32.00	18.00	0.80	1.30	3		1831409		0
797ALUICR080801KM		8.00	8.00	7.60	76.00	40.00	12.00	0.80	1.30	3		1831412		0
797ALUICR001000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.00	2.00	3		1831413		0
797ALUICR021000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.20	2.00	3		1831414		0
797ALUICR021001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.20	2.00	3		1831420		0
797ALUICR041000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.40	2.00	3		1831415		0
797ALUICR041001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.40	2.00	3		1831423		0
797ALUICR081000KM		10.00	10.00	9.50	81.00	40.00	22.00	0.80	2.00	3		1831416		0
797ALUICR081001KM		10.00	10.00	9.50	91.00	50.00	15.00	0.80	2.00	3		1831424		0
797ALUICR161000KM		10.00	10.00	9.50	81.00	40.00	22.00	1.60	2.00	3		1831417		0
797ALUICR161001KM		10.00	10.00	9.50	91.00	50.00	15.00	1.60	2.00	3		1831426		0
797ALUICR001200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.00	2.00	3		1831427		0
797ALUICR001201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.00	2.00	3		1831435		0
797ALUICR021200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.20	2.00	3		1831428		0
797ALUICR021201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.20	2.00	3		1831436		0
797ALUICR041200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.40	2.00	3		1831429		0
797ALUICR041201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.40	2.00	3		1831437		0
797ALUICR081200KM		12.00	12.00	11.30	94.00	48.00	26.00	0.80	2.00	3		1831431		0
797ALUICR081201KM		12.00	12.00	11.30	106.00	60.00	18.00	0.80	2.00	3		1831438		0
797ALUICR161200KM		12.00	12.00	11.30	94.00	48.00	26.00	1.60	2.00	3		1831432		0
797ALUICR161201KM		12.00	12.00	11.30	106.00	60.00	18.00	1.60	2.00	3		1831439		0
797ALUICR201200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.00	2.00	3		1831433		0
797ALUICR201201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.00	2.00	3		1831440		0
797ALUICR251200KM		12.00	12.00	11.30	94.00	48.00	26.00	2.50	2.00	3		1831434		0
797ALUICR251201KM		12.00	12.00	11.30	106.00	60.00	18.00	2.50	2.00	3		1831441		0
797ALUICR001600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.00	2.00	3		1831442		0
797ALUICR001601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.00	2.00	3		1831504		0
797ALUICR021600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.20	2.00	3		1831443		0
797ALUICR021601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.20	2.00	3		1831505		0
797ALUICR041600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.40	2.00	3		1831444		0
797ALUICR041601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.40	2.00	3		1831506		0
797ALUICR081600KM		16.00	16.00	15.20	116.00	64.00	35.00	0.80	2.00	3		1831445		0
797ALUICR081601KM		16.00	16.00	15.20	129.00	80.00	24.00	0.80	2.00	3		1831507		0
797ALUICR161600KM		16.00	16.00	15.20	116.00	64.00	35.00	1.60	2.00	3		1831446		0
797ALUICR161601KM		16.00	16.00	15.20	129.00	80.00	24.00	1.60	2.00	3		1831508		0
797ALUICR201600KM		16.00	16.00	15.20	116.00	64.00	35.00	2.00	2.00	3		1831447		0
797ALUICR201601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.00	2.00	3		1831509		0
797ALUICR251600KM		16.00	16.00	15.20	116.00	64.00	35.00	2.50	2.00	3		1831448		0
797ALUICR251601KM		16.00	16.00	15.20	129.00	80.00	24.00	2.50	2.00	3		1831510		0
797ALUICR321600KM		16.00	16.00	15.20	116.00	64.00	35.00	3.20	2.00	3		1831449		0
797ALUICR321601KM		16.00	16.00	15.20	129.00	80.00	24.00	3.20	2.00	3		1831511		0
797ALUICR401600KM		16.00	16.00	15.20	116.00	64.00	35.00	4.00	2.00	3		1831450		0
797ALUICR401601KM		16.00	16.00	15.20	129.00	80.00	24.00	4.00	2.00	3		1831512		0
797ALUICR501600KM		16.00	16.00	15.20	116.00	64.00	35.00	5.00	2.00	3		1831451		0
797ALUICR501601KM		16.00	16.00	15.20	129.00	80.00	24.00	5.00	2.00	3		1831513		0
797ALUICR002000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.00	3.00	3		1831514		0
797ALUICR002001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.00	3.00	3		1831524		0
797ALUICR022000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.20	3.00	3		1831515		0
797ALUICR022001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.20	3.00	3		1831525		0
797ALUICR042000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.40	3.00	3		1831516		0
797ALUICR042001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.40	3.00	3		1831526		0
797ALUICR082000KM		20.00	20.00	19.00	131.00	80.00	44.00	0.80	3.00	3		1831517		0
797ALUICR082001KM		20.00	20.00	19.00	151.00	100.00	30.00	0.80	3.00	3		1831527		0
797ALUICR162000KM		20.00	20.00	19.00	131.00	80.00	44.00	1.60	3.00	3		1831518		0
797ALUICR162001KM		20.00	20.00	19.00	151.00	100.00	30.00	1.60	3.00	3		1831528		0
797ALUICR202000KM		20.00	20.00	19.00	131.00	80.00	44.00	2.00	3.00	3		1831519		0
797ALUICR202001KM		20.00	20.00	19.00	151.00	100.00	30.00	2.00	3.00	3		1831529		0
797ALUICR322000KM		20.00	20.00	19.00	131.00	80.00	44.00	3.20	3.00	3		1831520		0
797ALUICR322001KM		20.00	20.00	19.00	151.00	100.00	30.00	3.20	3.00	3		1831530		0
797ALUICR402000KM		20.00	20.00	19.00	131.00	80.00	44.00	4.00	3.00	3		1831521		0
797ALUICR402001KM		20.00	20.00	19.00	151.00	100.00	30.00	4.00	3.00	3		1831531		0
797ALUICR502000KM		20.00	20.00	19.00	131.00	80.00	44.00	5.00	3.00	3		1831522		0
797ALUICR502001KM		20.00	20.00	19.00	151.00	100.00	30.00	5.00	3.00	3		1831532		0
797ALUICR602000KM		20.00	20.00	19.00	131.00	80.00	44.00	6.00	3.00	3		1831523		0
797ALUICR602001KM		20.00	20.00	19.00	151.00	100.00	30.00	6.00	3.00	3		1831533		0
797ALUICR002500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.00	3.00	3		1831534		0
797ALUICR002501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.00	3.00	3		1831544		0
797ALUICR022500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.20	3.00	3		1831535		0
797ALUICR022501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.20	3.00	3		1831546		0
797ALUICR042500KM		25.00	25.00	23.50	151.00	100.00	55.00	0.40	3.00	3		1831536		0
797ALUICR042501KM		25.00	25.00	23.50	182.00	125.00	38.00	0.40	3.00	3		1831548		0
797ALUICR162500KM		25.00	25.00	23.50	151.00	100.00	55.00	1.60	3.00	3		1831537		0
797ALUICR162501KM		25.00	25.00	23.50	182.00	125.00	38.00	1.60	3.00	3		1831550		0
797ALUICR202500KM		25.00	25.00	23.50	151.00	100.00	55.00	2.00	3.00	3		1831538		0
797ALUICR202501KM		25.00	25.00	23.50	182.00	125.00	38.00	2.00	3.00	3		1831551		0
797ALUICR322500KM		25.00	25.00	23.50	151.00	100.00	55.00	3.20	3.00	3		1831539		0
797ALUICR322501KM		25.00	25.00	23.50	182.00	125.00	38.00	3.20	3.00	3		1831553		0
797ALUICR402500KM		25.00	25.00	23.50	151.00	100.00	55.00	4.00	3.00	3		1831540		0
797ALUICR402501KM		25.00	25.00	23.50	182.00	125.00	38.00	4.00	3.00	3		1831554		0
797ALUICR502500KM		25.00	25.00	23.50	151.00	100.00	55.00	5.00	3.00	3		1831541		0
797ALUICR502501KM		25.00	25.00	23.50	182.00	125.00	38.00	5.00	3.00	3		1831555		0
797ALUICR602500KM		25.00	25.00	23.50	151.00	100.00	55.00	6.00	3.00	3		1831542		0
797ALUICR602501KM		25.00	25.00	23.50	182.00	125.00	38.00	6.00	3.00	3		1831556		0
797ALUICR642500KM		25.00	25.00	23.50	151.00	100.00	55.00	6.40	3.00	3		1831543		0
797ALUICR642501KM		25.00	25.00	23.50	182.00	125.00	38.00	6.40	3.00	3		1831557		0

Click here for the Cutting Parameters for this family
