UOP Cutting Tools - Metal Working Tools - Milling -

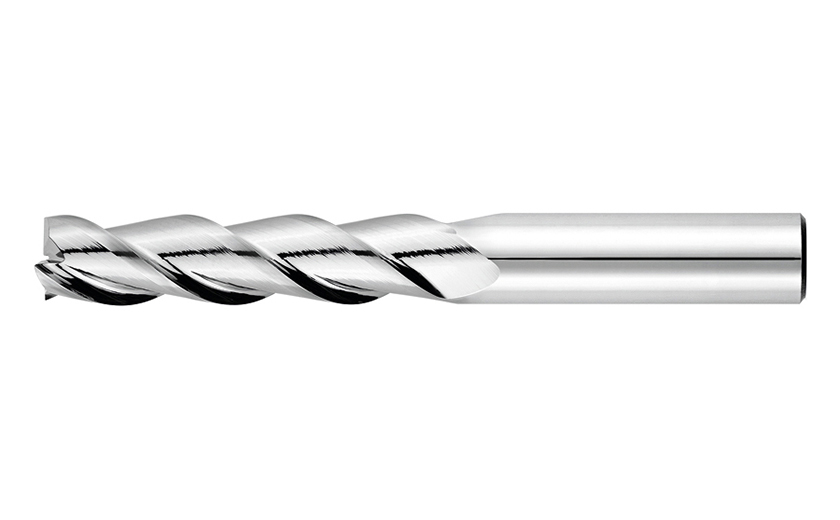

797ALULFFIC : Highly stable process even with an axial width of cut up to 6DC. Vibrationless.

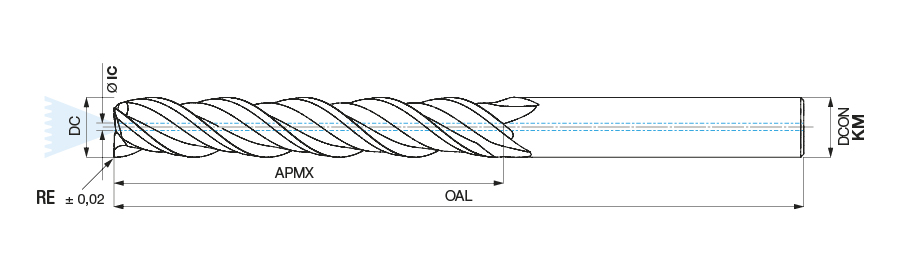

Designation	DC	DCONMS	OAL	APMX	RE	IC	NOF	GICAT	giic	Grade
797ALULFFICR020600KM	6.00	6.00	68.00	24.00	0.20	1.00	3	2194114	0
797ALULFFICR020601KM	6.00	6.00	74.00	30.00	0.20	1.00	3	2194115	0
797ALULFFICR020602KM	6.00	6.00	80.00	36.00	0.20	1.00	3	2195077	0
797ALULFFICR020800KM	8.00	8.00	78.00	32.00	0.20	1.30	3	2194116	0
797ALULFFICR020801KM	8.00	8.00	86.00	40.00	0.20	1.30	3	2194117	0
797ALULFFICR020802KM	8.00	8.00	94.00	48.00	0.20	1.30	3	2195079	1	999999
797ALULFFICR021000KM	10.00	10.00	95.00	42.00	0.20	2.00	3	2194118	0
797ALULFFICR021001KM	10.00	10.00	105.00	52.00	0.20	2.00	3	2194121	1	IC08
797ALULFFICR021002KM	10.00	10.00	115.00	62.00	0.20	2.00	3	2195080	0
797ALULFFICR021200KM	12.00	12.00	110.00	50.00	0.20	2.00	3	2194125	0
797ALULFFICR021201KM	12.00	12.00	122.00	62.00	0.20	2.00	3	2194128	0
797ALULFFICR021202KM	12.00	12.00	134.00	74.00	0.20	2.00	3	2195081	0
797ALULFFICR021400KM	14.00	14.00	121.00	58.00	0.20	2.00	3	2194720	0
797ALULFFICR021401KM	14.00	14.00	135.00	72.00	0.20	2.00	3	2194721	0
797ALULFFICR021402KM	14.00	14.00	149.00	86.00	0.20	2.00	3	2195082	0
797ALULFFICR021600KM	16.00	16.00	134.00	66.00	0.20	2.00	3	2194131	0
797ALULFFICR021601KM	16.00	16.00	150.00	82.00	0.20	2.00	3	2194134	0
797ALULFFICR021602KM	16.00	16.00	166.00	98.00	0.20	2.00	3	2195083	0
797ALULFFICR022000KM	20.00	20.00	158.00	83.00	0.20	3.00	3	2194137	1	IC08
797ALULFFICR022001KM	20.00	20.00	178.00	103.00	0.20	3.00	3	2194141	0
797ALULFFICR022002KM	20.00	20.00	198.00	123.00	0.20	3.00	3	2195084	0
797ALULFFICR022500KM	25.00	25.00	190.00	103.00	0.20	3.00	3	2194145	0
797ALULFFICR022501KM	25.00	25.00	215.00	128.00	0.20	3.00	3	2194149	0
797ALULFFICR022502KM	25.00	25.00	240.00	153.00	0.20	3.00	3	2195085	1	IC900

Click here for the Cutting Parameters for this family

Milling
Main Application
