UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

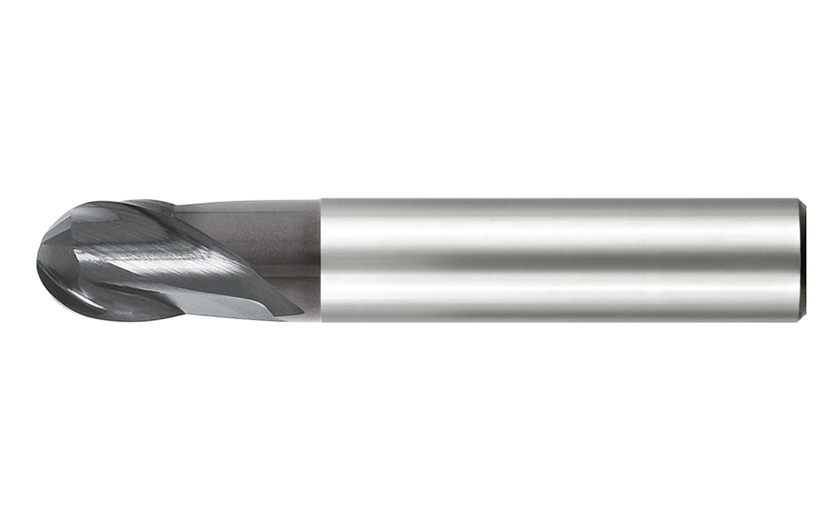

81105 : Ball-nosed two flute end mills

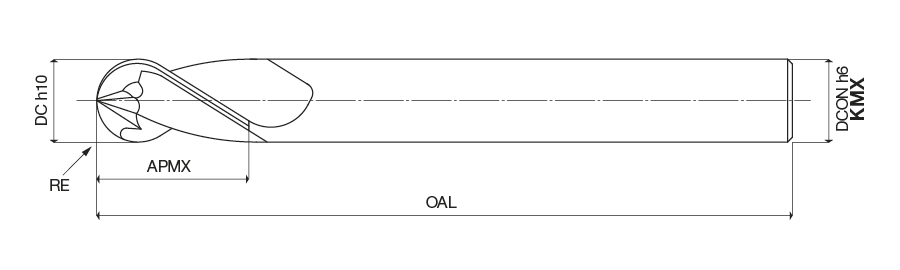

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
811050100KMX	1.00	3.00	38.00	3.00	2	1871102
811050150KMX	1.50	3.00	38.00	3.00	2	1871111
811050200KMX	2.00	3.00	38.00	3.00	2	1871119
811050250KMX	2.50	3.00	38.00	3.00	2	1871128
811050301KMX	3.00	4.00	50.00	6.00	2	1871136
811050350KMX	3.50	4.00	50.00	6.00	2	1871144
811050400KMX	4.00	5.00	54.00	6.00	2	1871150
811050500KMX	5.00	6.00	54.00	6.00	2	1871158
811050600KMX	6.00	7.00	54.00	6.00	2	1871165
811050700KMX	7.00	8.00	58.00	8.00	2	1871173
811050800KMX	8.00	9.00	58.00	8.00	2	1871178
811050900KMX	9.00	10.00	66.00	10.00	2	1871188
811051000KMX	10.00	11.00	66.00	10.00	2	1871192
811051200KMX	12.00	12.00	73.00	12.00	2	1871200
811051400KMX	14.00	14.00	75.00	14.00	2	1871207
811051600KMX	16.00	16.00	82.00	16.00	2	1871212
811051800KMX	18.00	18.00	84.00	18.00	2	1871218
811052000KMX	20.00	20.00	92.00	20.00	2	1871222

Click here for the Cutting Parameters for this family
