UOP Cutting Tools - Metal Working Tools - Milling - - 85105
×




Milling
Main Application

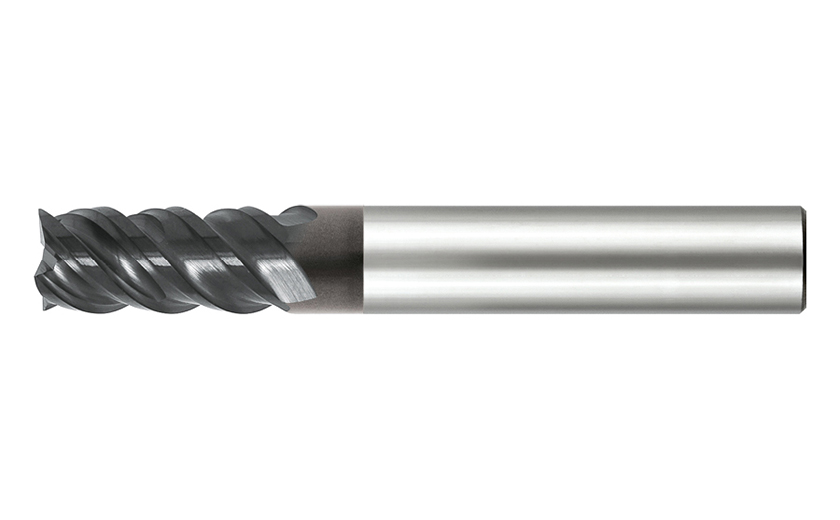

85105 : Four flute DOUBLE ACTION end mills


 SKIN3  FINISHING CUTTING EDGE PROFILE H  LAMBDA 50  WELDON ON REQUEST  UNI DIN 6527 ISO  NORMAL

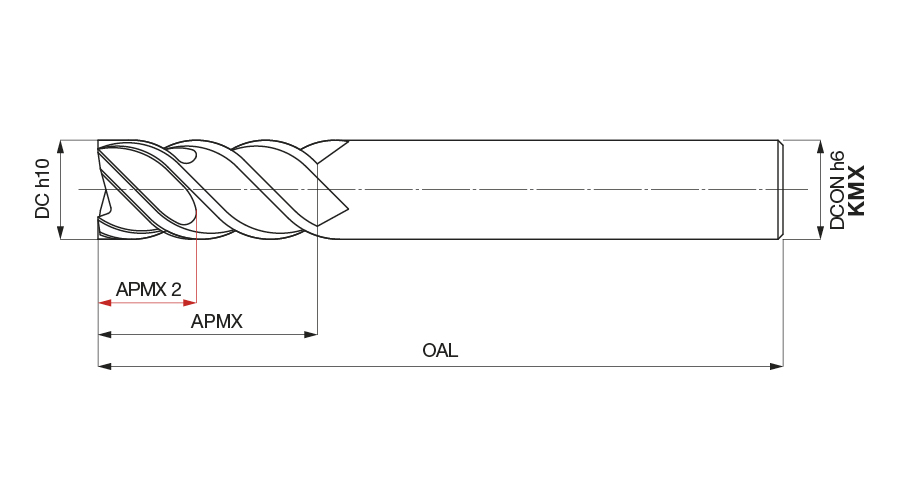

  DesignationGICODEDCAPMX_2APMXOALDCONMSNOFGICATGIREMgiic
  851050400KMX  4.006.0011.0057.006.0041871307 0
  851050500KMX  5.007.0013.0057.006.0041871317 0
  851050600KMX  6.007.0013.0057.006.0041871327 0
  851050800KMX  8.0010.0019.0063.008.0041871336 0
  851051000KMX  10.0011.0022.0072.0010.0041871346 0
  851051200KMX  12.0013.0026.0083.0012.0041871355 0
  851051400KMX  14.0013.0026.0083.0014.0041871366 0
  851051600KMX  16.0016.0032.0092.0016.0041871375 0
  851051800KMX  18.0016.0032.0092.0018.0041871386 0
  851052000KMX  20.0019.0038.00104.0020.0041871392 0
  851052500KMX  25.0023.0045.00125.0025.0041871400 0
Click here for the Cutting Parameters for this family
