Milling
Main Application

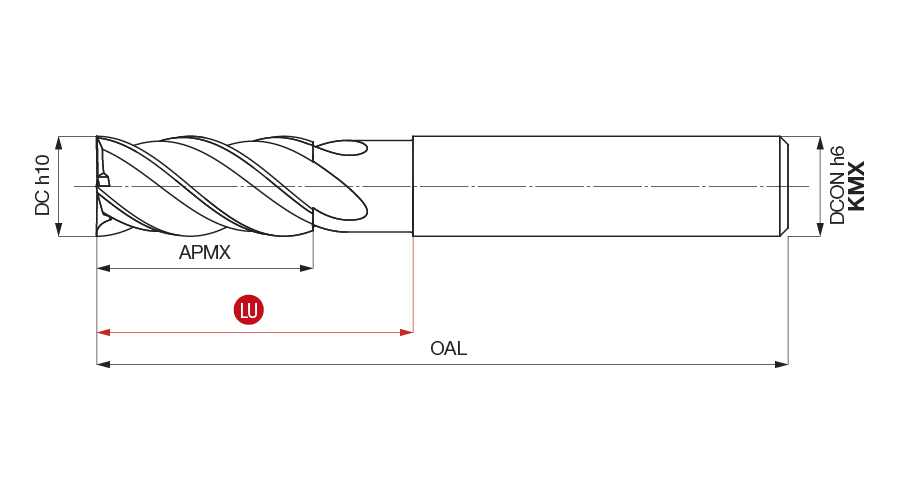

85505 : Four flute HEAVY DUTY end mills


 SKIN3  FINISHING CUTTING EDGE PROFILE H  LAMBDA 40  QUALITY STANDARD UOP  NORMAL
  DesignationGICODEDCLUAPMXOALDCONMSNOFGICATGIREMgiic
  855050300KMX Y 3.0015.0011.0060.006.0041883484 0
  855050400KMX Y 4.0016.0011.0060.006.0041883485 0
  855050500KMX Y 5.0018.0011.0060.006.0041883486 0
  855050600KMX Y 6.0022.0013.0060.006.0041883487 0
  855050800KMX  8.0030.0019.0072.008.0041883488 0
  855051000KMX Y 10.0032.0022.0072.0010.0041883489 0
  855051200KMX Y 12.0038.0026.0083.0012.0041883490 0
  855051400KMX Y 14.0041.0028.0083.0014.0041883491 0
  855051600KMX Y 16.0042.0032.0092.0016.0041883492 0
  855052000KMX Y 20.0052.0038.00104.0020.0041883493 0
  855052500KMX  25.0063.0045.00125.0025.0041883494 0
Click here for the Cutting Parameters for this family
