Milling
Main Application

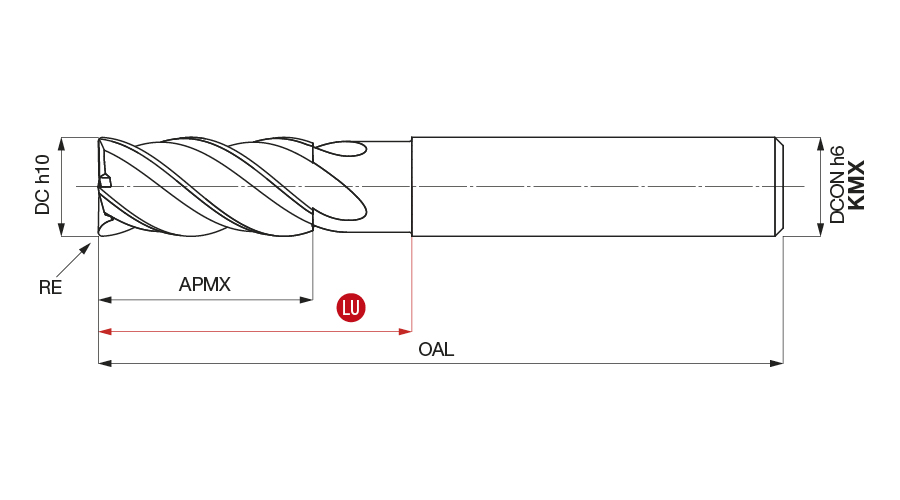

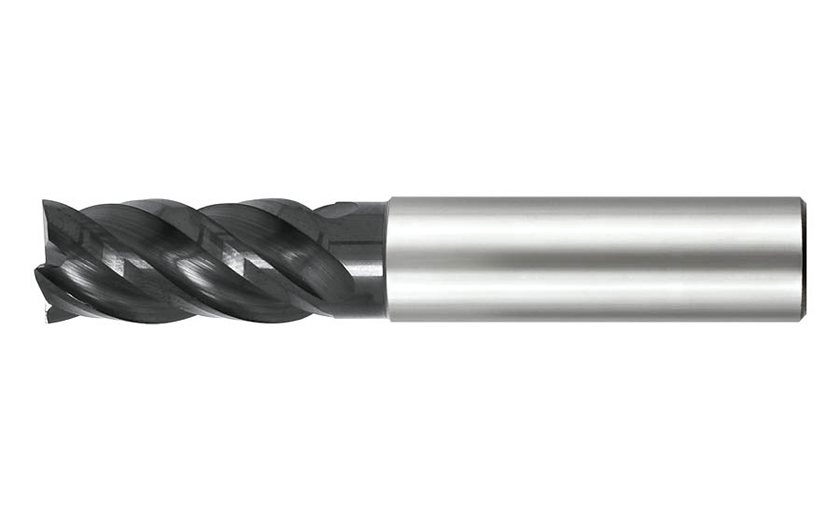

85510 : Four flute HEAVY DUTY end mills


 SKIN3  FINISHING CUTTING EDGE PROFILE H  LAMBDA 40  QUALITY STANDARD UOP  NORMAL
  DesignationGICODEDCLUAPMXOALDCONMSNOFGICATGIREMgiic
  855100300KMX  3.0015.0011.0060.006.0041883506 0
  855100400KMX  4.0016.0011.0060.006.0041883507 0
  855100500KMX  5.0018.0011.0060.006.0041883508 0
  855100600KMX  6.0022.0013.0060.006.0041883509 0
  855100800KMX  8.0030.0019.0072.008.0041883510 0
  855101000KMX  10.0032.0022.0072.0010.0041883511 0
  855101200KMX  12.0038.0026.0083.0012.0041883512 0
  855101400KMX  14.0041.0028.0083.0014.0041883513 0
  855101600KMX  16.0042.0032.0092.0016.0041883619 0
  855102000KMX  20.0052.0038.00104.0020.0041883515 0
  855102500KMX  25.0063.0045.00125.0025.0041883516 0
Click here for the Cutting Parameters for this family
