UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

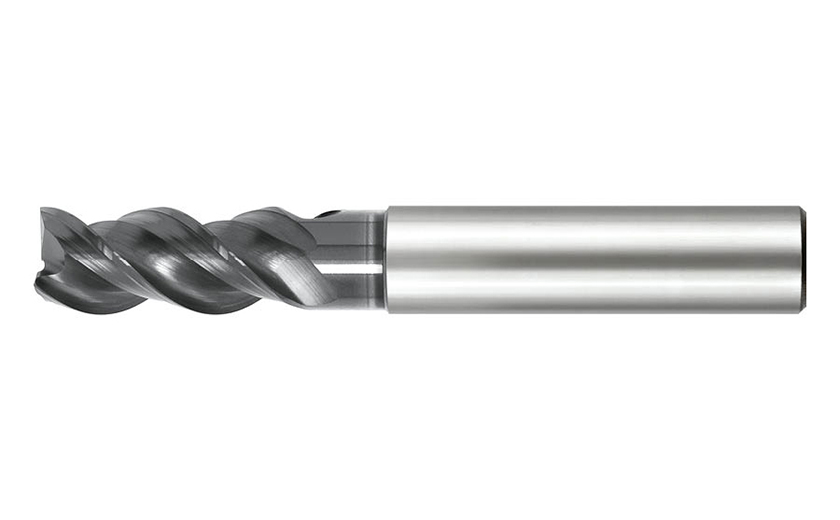

85710 : Trochoidal method operations

Designation	DC	LU	APMX	OAL	RE	DCONMS	NOF	GICAT
857100300KMX	3.00	15.00	11.00	60.00	0.20	6.00	3	1883554
857100400KMX	4.00	16.00	11.00	60.00	0.20	6.00	3	1883555
857100500KMX	5.00	18.00	11.00	60.00	0.20	6.00	3	1883556
857100600KMX	6.00	22.00	13.00	60.00	0.20	6.00	3	1883557
857100800KMX	8.00	30.00	19.00	72.00	0.30	8.00	3	1883558
857101000KMX	10.00	32.00	22.00	72.00	0.50	10.00	3	1883559
857101200KMX	12.00	38.00	26.00	83.00	0.50	12.00	3	1883560
857101400KMX	14.00	41.00	28.00	83.00	1.00	14.00	3	1883561
857101600KMX	16.00	42.00	32.00	92.00	1.00	16.00	3	1883562
857102000KMX	20.00	52.00	38.00	104.00	1.00	20.00	3	1883563
857102500KMX	25.00	63.00	45.00	125.00	1.00	25.00	3	1883564

Click here for the Cutting Parameters for this family
