UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

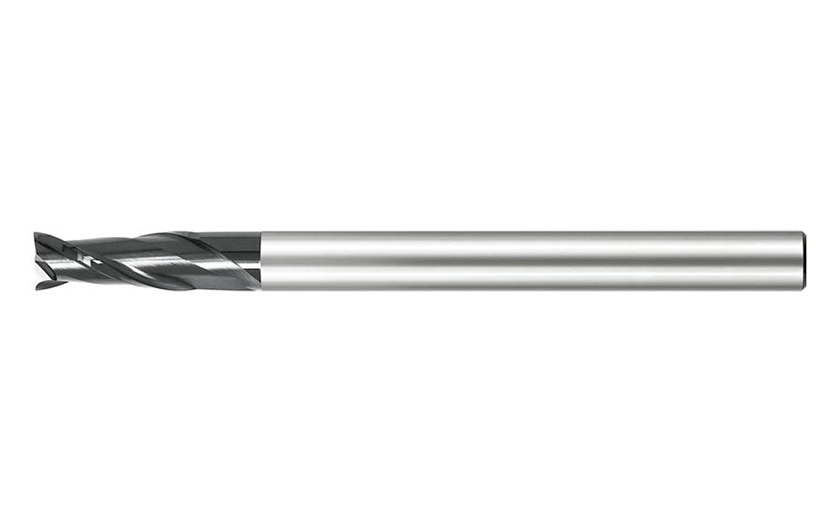

89105 : Flat end, two flute end mills

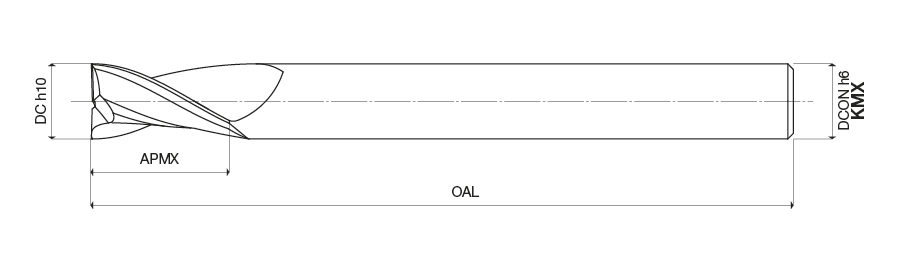

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
891050401KMX	4.00	8.00	100.00	4.00	2	1871917
891050400KMX	4.00	16.00	150.00	4.00	2	1871909
891050601KMX	6.00	10.00	100.00	6.00	2	1871930
891050600KMX	6.00	16.00	150.00	6.00	2	1871924
891050801KMX	8.00	14.00	100.00	8.00	2	1871942
891050800KMX	8.00	20.00	150.00	8.00	2	1871936
891051001KMX	10.00	18.00	100.00	10.00	2	1871954
891051000KMX	10.00	25.00	150.00	10.00	2	1871947
891051202KMX	12.00	22.00	100.00	12.00	2	1871970
891051200KMX	12.00	30.00	150.00	12.00	2	1871959
891051201KMX	12.00	30.00	200.00	12.00	2	1871966
891051600KMX	16.00	32.00	150.00	16.00	2	1871977
891051601KMX	16.00	32.00	200.00	16.00	2	1871984
891052000KMX	20.00	40.00	150.00	20.00	2	1871988

Click here for the Cutting Parameters for this family
