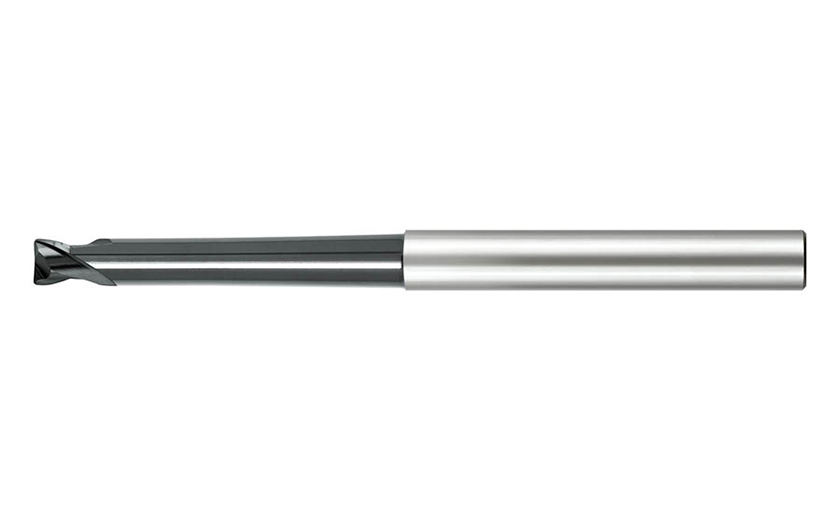

89110 : Two flute toric end mills

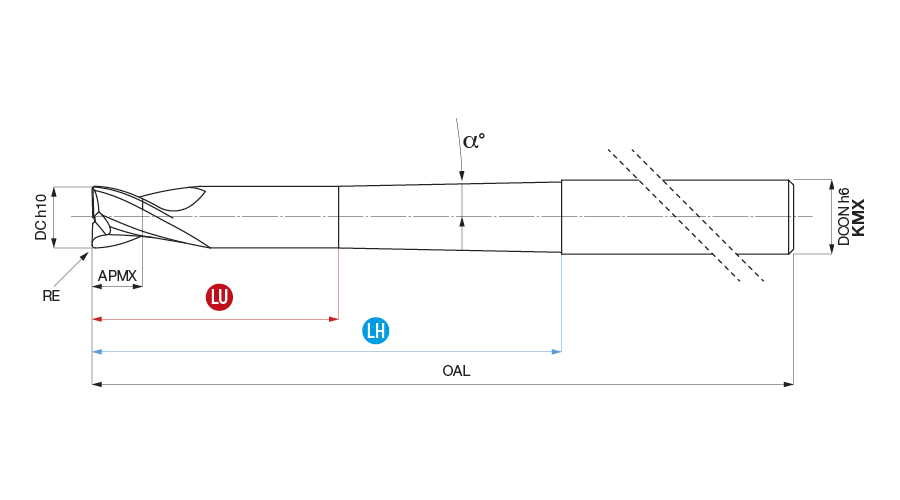

Designation	DC	APMX	LU	LH	OAL	RE	DCONMS	NOF	GICAT
891100100KMX	1.00	2.00	4.00	40.0	80.00	0.25	6.00	2	1871996
891100200KMX	2.00	2.00	8.00	40.0	80.00	0.50	6.00	2	1872001
891100300KMX	3.00	2.00	12.00	40.0	80.00	0.50	6.00	2	1872007
891100400KMX	4.00	3.00	16.00	40.0	80.00	0.50	6.00	2	1872016
891100510KMX	5.00	3.00	20.00	40.0	80.00	1.00	6.00	2	1872023
891100610KMX	6.00	4.00	0.00	0.0	80.00	1.00	6.00	2	1872029
891100611KMX	6.00	4.00	25.00	50.0	100.00	1.00	6.00	2	1872034
891100810KMX	8.00	4.00	0.00	0.0	100.00	1.00	8.00	2	1872040
891100811KMX	8.00	4.00	32.00	60.0	120.00	1.00	10.00	2	1872044
891101010KMX	10.00	6.00	0.00	0.0	120.00	1.00	10.00	2	1872049
891101011KMX	10.00	6.00	40.00	80.0	160.00	1.00	12.00	2	1872056
891101015KMX	10.00	6.00	0.00	0.0	120.00	1.50	10.00	2	1872061
891101016KMX	10.00	6.00	40.00	80.0	160.00	1.50	12.00	2	1872066
891101210KMX	12.00	8.00	0.00	0.0	160.00	1.00	12.00	2	1872070
891101211KMX	12.00	8.00	50.00	100.0	200.00	1.00	16.00	2	1872075
891101220KMX	12.00	8.00	0.00	0.0	160.00	2.00	12.00	2	1872080
891101221KMX	12.00	8.00	50.00	100.0	200.00	2.00	16.00	2	1872085
891101625KMX	16.00	8.00	0.00	0.0	200.00	2.50	16.00	2	1872088
891101650KMX	16.00	8.00	0.00	0.0	200.00	5.00	16.00	2	1872091
