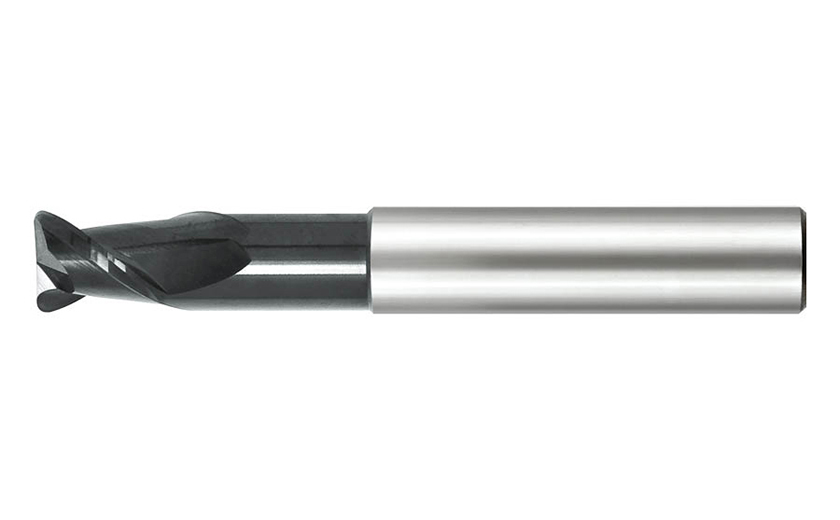

89115 : Two flute toric end mills

Designation	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT
891150300KMX	3.00	2.80	4.00	9.00	57.00	0.50	6.00	2	1872096
891150400KMX	4.00	3.70	5.00	12.00	57.00	0.50	6.00	2	1872100
891150500KMX	5.00	4.60	6.00	15.00	57.00	0.50	6.00	2	1872104
891150600KMX	6.00	5.50	7.00	20.00	57.00	1.00	6.00	2	1872108
891150601KMX	6.00	5.50	7.00	33.00	70.00	1.00	6.00	2	1872112
891150800KMX	8.00	7.40	9.00	26.00	63.00	1.00	8.00	2	1872115
891150801KMX	8.00	7.40	9.00	43.00	80.00	1.00	8.00	2	1872118
891151000KMX	10.00	9.20	11.00	31.00	72.00	1.50	10.00	2	1872123
891151001KMX	10.00	9.20	11.00	43.00	84.00	1.50	10.00	2	1872126
891151200KMX	12.00	11.00	12.00	37.00	83.00	1.50	12.00	2	1872130
891151201KMX	12.00	11.00	12.00	51.00	97.00	1.50	12.00	2	1872133
891151600KMX	16.00	15.00	16.00	43.00	92.00	2.00	16.00	2	1872136
891151601KMX	16.00	15.00	16.00	71.00	120.00	2.00	16.00	2	1872139
891152000KMX	20.00	19.00	20.00	53.00	104.00	2.00	20.00	2	1872142
891152001KMX	20.00	19.00	20.00	79.00	130.00	2.00	20.00	2	1872145
891152500KMX	25.00	24.00	25.00	64.00	121.00	2.50	25.00	2	1872148
891152501KMX	25.00	24.00	25.00	93.00	150.00	2.50	25.00	2	1872151
