UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

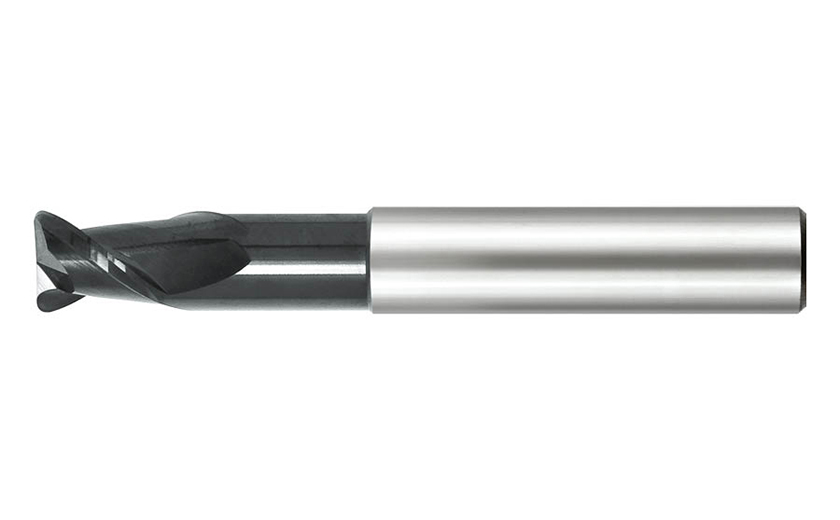

89120 : Two flute toric end mills

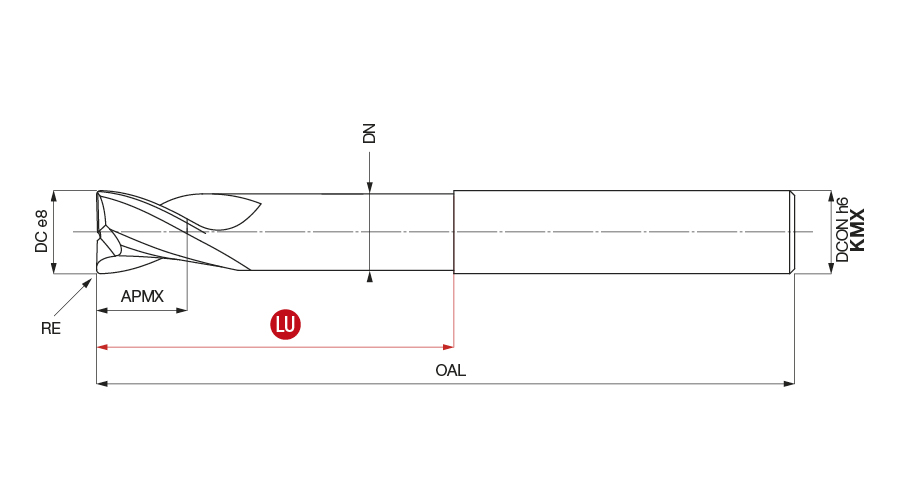

Designation	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT
891200300KMX	3.00	2.80	4.00	9.00	57.00	0.50	6.00	2	1872154
891200400KMX	4.00	3.70	5.00	12.00	57.00	0.50	6.00	2	1872158
891200500KMX	5.00	4.60	6.00	15.00	57.00	0.50	6.00	2	1872162
891200600KMX	6.00	5.50	7.00	20.00	57.00	1.00	6.00	2	1872166
891200601KMX	6.00	5.50	7.00	33.00	70.00	1.00	6.00	2	1872170
891200800KMX	8.00	7.40	9.00	26.00	63.00	1.00	8.00	2	1872173
891200801KMX	8.00	7.40	9.00	43.00	80.00	1.00	8.00	2	1872177
891201000KMX	10.00	9.20	11.00	31.00	72.00	1.50	10.00	2	1872181
891201001KMX	10.00	9.20	11.00	43.00	84.00	1.50	10.00	2	1872184
891201200KMX	12.00	11.00	12.00	37.00	83.00	1.50	12.00	2	1872187
891201201KMX	12.00	11.00	12.00	51.00	97.00	1.50	12.00	2	1872190
891201600KMX	16.00	15.00	16.00	43.00	92.00	2.00	16.00	2	1872193
891201601KMX	16.00	15.00	16.00	71.00	120.00	2.00	16.00	2	1872196
891202000KMX	20.00	19.00	20.00	53.00	104.00	2.00	20.00	2	1872199
891202001KMX	20.00	19.00	20.00	79.00	130.00	2.00	20.00	2	1872202
891202500KMX	25.00	24.00	25.00	64.00	121.00	2.50	25.00	2	1872205
891202501KMX	25.00	24.00	25.00	93.00	150.00	2.50	25.00	2	1872208

Click here for the Cutting Parameters for this family
