UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

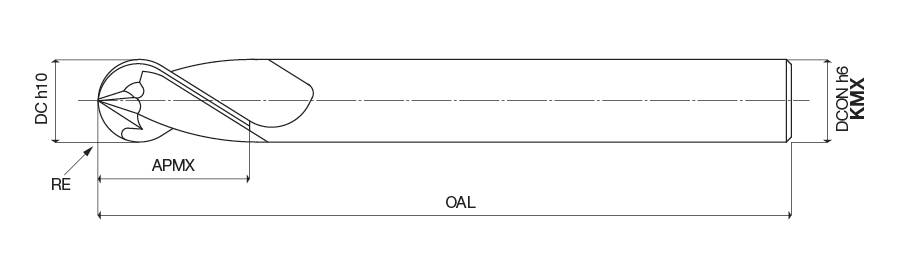

89125 : Two flute ball-nosed end mills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
891250401KMX	4.00	8.00	100.00	4.00	2	1872219
891250400KMX	4.00	16.00	150.00	4.00	2	1872211
891250601KMX	6.00	10.00	100.00	6.00	2	1872232
891250600KMX	6.00	16.00	150.00	6.00	2	1872226
891250801KMX	8.00	14.00	100.00	8.00	2	1872246
891250800KMX	8.00	20.00	150.00	8.00	2	1872239
891251001KMX	10.00	18.00	100.00	10.00	2	1872254
891251000KMX	10.00	25.00	150.00	10.00	2	1872251
891251202KMX	12.00	22.00	100.00	12.00	2	1872274
891251200KMX	12.00	30.00	150.00	12.00	2	1872260
891251201KMX	12.00	30.00	200.00	12.00	2	1872267
891251600KMX	16.00	32.00	150.00	16.00	2	1872279
891251601KMX	16.00	32.00	200.00	16.00	2	1872285
891252000KMX	20.00	40.00	150.00	20.00	2	1872290
891252001KMX	20.00	40.00	200.00	20.00	2	1872295

Click here for the Cutting Parameters for this family
