UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

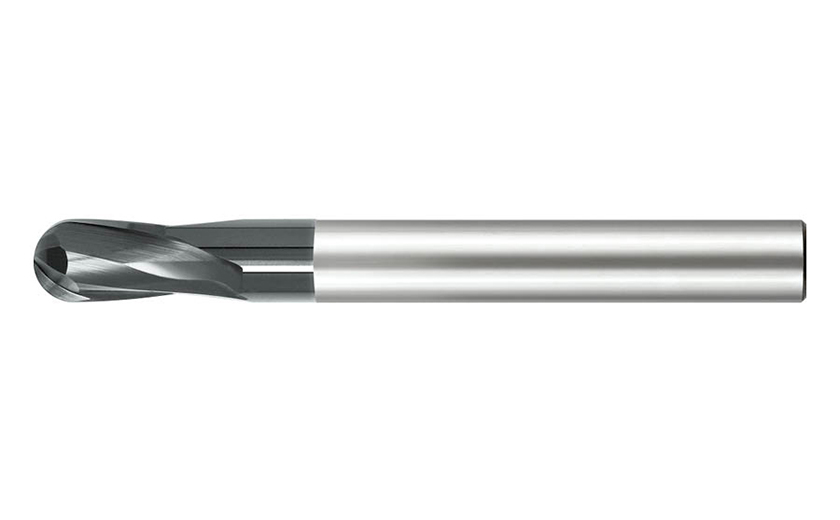

89135 : Two flute ball-nosed end mills

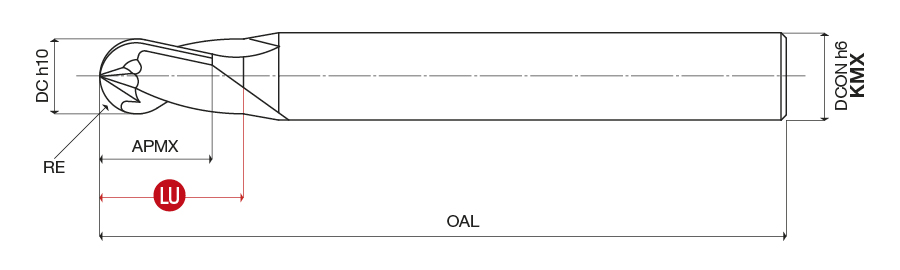

Designation	DC	APMX	LU	OAL	RE	DCONMS	NOF	GICAT
891350100KMX	1.00	2.50	4.00	50.00	0.50	4.00	2	1872582
891350150KMX	1.50	2.50	4.00	50.00	0.75	4.00	2	1872586
891350200KMX	2.00	3.00	4.00	50.00	1.00	6.00	2	1872590
891350250KMX	2.50	3.00	4.00	50.00	1.25	6.00	2	1872595
891350300KMX	3.00	5.00	7.00	60.00	1.50	6.00	2	1872598
891350400KMX	4.00	6.00	8.00	70.00	2.00	6.00	2	1872603
891350500KMX	5.00	8.00	10.00	80.00	2.50	6.00	2	1872608
891350600KMX	6.00	9.00	0.00	90.00	3.00	6.00	2	1872612
891350700KMX	7.00	11.00	13.00	100.00	3.50	8.00	2	1872616
891350800KMX	8.00	12.00	0.00	100.00	4.00	8.00	2	1872619
891351000KMX	10.00	15.00	0.00	100.00	5.00	10.00	2	1872623
891351200KMX	12.00	18.00	0.00	110.00	6.00	12.00	2	1872627
891351600KMX	16.00	24.00	0.00	140.00	8.00	16.00	2	1872631
891352000KMX	20.00	30.00	0.00	160.00	10.00	20.00	2	1872634

Click here for the Cutting Parameters for this family
