UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

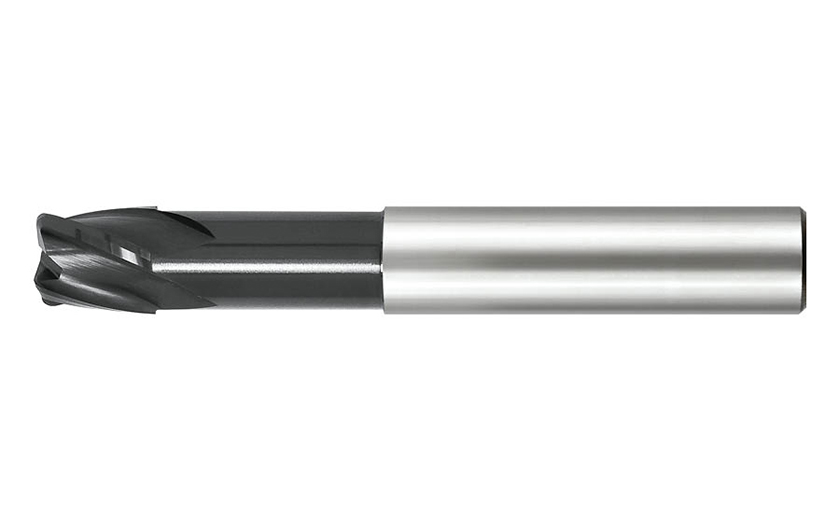

89160 : Four flute toric end mills

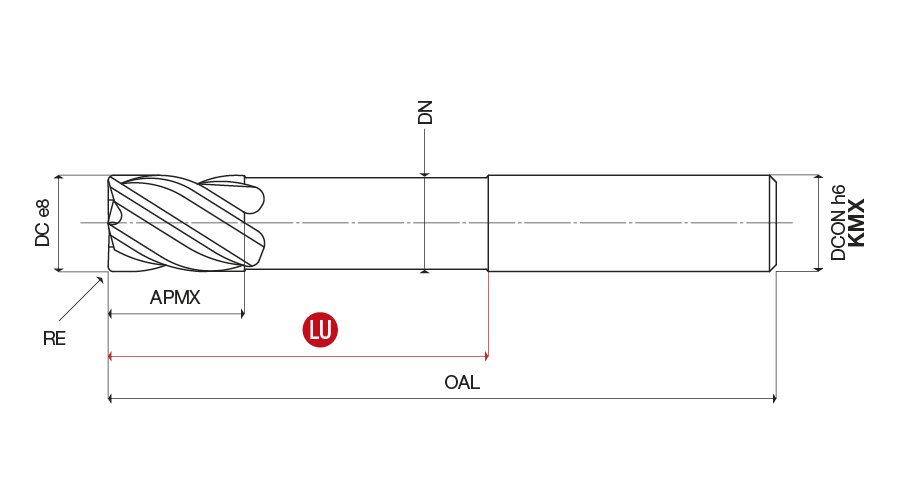

Designation	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT
891600300KMX	3.00	2.80	4.00	9.00	57.00	0.50	6.00	4	1872891
891600400KMX	4.00	3.70	5.00	12.00	57.00	0.50	6.00	4	1872897
891600500KMX	5.00	4.60	6.00	15.00	57.00	0.50	6.00	4	1872904
891600600KMX	6.00	5.50	7.00	20.00	57.00	1.00	6.00	4	1872909
891600601KMX	6.00	5.50	7.00	33.00	70.00	1.00	6.00	4	1872914
891600800KMX	8.00	7.40	9.00	26.00	63.00	1.00	8.00	4	1872918
891600801KMX	8.00	7.40	9.00	43.00	80.00	1.00	8.00	4	1872923
891601000KMX	10.00	9.20	11.00	31.00	72.00	1.50	10.00	4	1872927
891601001KMX	10.00	9.20	11.00	43.00	84.00	1.50	10.00	4	1872932
891601200KMX	12.00	11.00	12.00	37.00	83.00	1.50	12.00	4	1872935
891601201KMX	12.00	11.00	12.00	51.00	97.00	1.50	12.00	4	1872939
891601600KMX	16.00	15.00	16.00	43.00	92.00	2.00	16.00	4	1872942
891601601KMX	16.00	15.00	16.00	71.00	120.00	2.00	16.00	4	1872946
891602000KMX	20.00	19.00	20.00	53.00	104.00	2.00	20.00	4	1872949
891602001KMX	20.00	19.00	20.00	79.00	130.00	2.00	20.00	4	1872952
891602500KMX	25.00	24.00	25.00	64.00	125.00	2.50	25.00	4	1872955
891602501KMX	25.00	24.00	25.00	93.00	150.00	2.50	25.00	4	1872958

Click here for the Cutting Parameters for this family
