UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

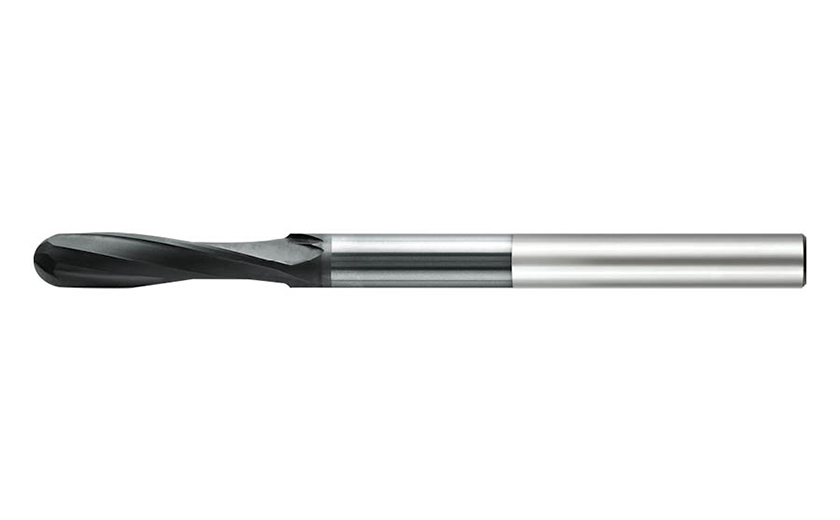

90105 : Two flute ball-nosed end mills

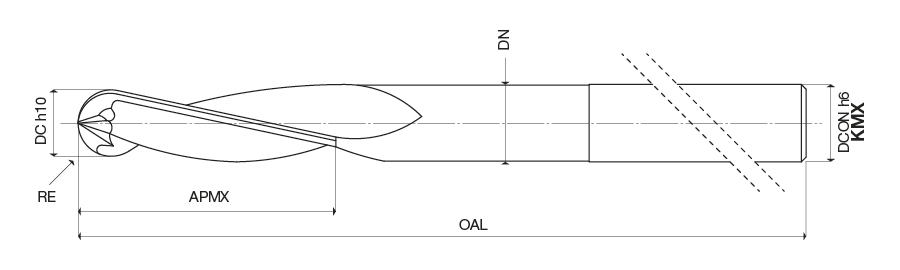

Designation	DC	DN	APMX	OAL	RE	DCONMS	NOF	GICAT
901050210KMD	2.00	1.90	10.00	80.00	1.00	4.00	2	1873049
901050220KMD	2.00	1.90	20.00	100.00	1.00	4.00	2	1873051
901050310KMD	3.00	2.90	10.00	80.00	1.50	4.00	2	1873053
901050320KMD	3.00	2.90	20.00	100.00	1.50	4.00	2	1873055
901050420KMD	4.00	3.90	20.00	100.00	2.00	4.00	2	1873057
901050430KMD	4.00	3.90	30.00	110.00	2.00	4.00	2	1873059
901050530KMD	5.00	4.90	30.00	100.00	2.50	6.00	2	1873061
901050540KMD	5.00	4.90	40.00	110.00	2.50	6.00	2	1873063
901050630KMD	6.00	5.80	30.00	110.00	3.00	6.00	2	1873065
901050640KMD	6.00	5.80	40.00	160.00	3.00	6.00	2	1873067
901050840KMD	8.00	7.80	40.00	110.00	4.00	8.00	2	1873071
901050850KMD	8.00	7.80	50.00	160.00	4.00	8.00	2	1873073
901051040KMD	10.00	9.80	40.00	110.00	5.00	10.00	2	1873077
901051050KMD	10.00	9.80	50.00	160.00	5.00	10.00	2	1873079
901051250KMD	12.00	11.80	50.00	160.00	6.00	12.00	2	1873081

Click here for the Cutting Parameters for this family
