UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

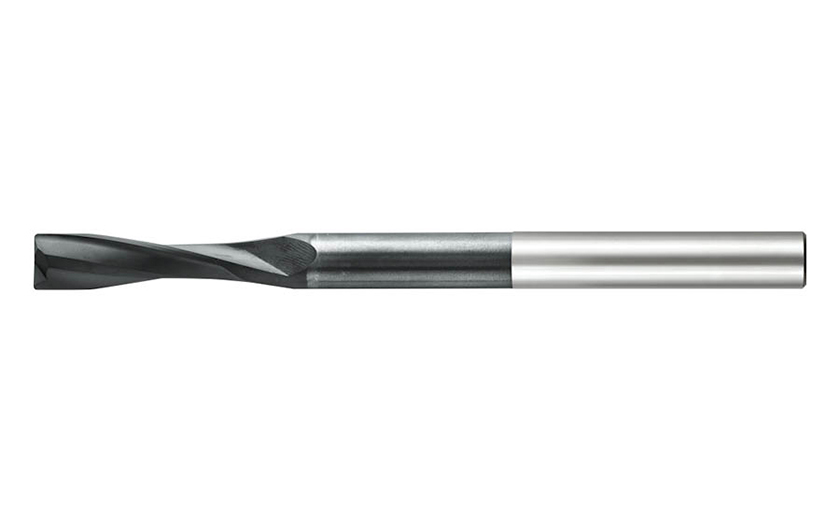

90107 : Two flute toric end mills

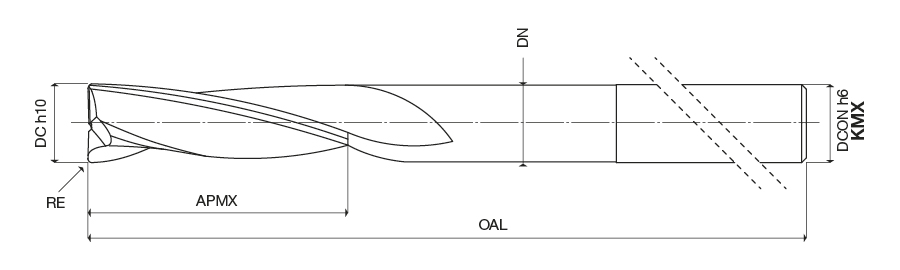

Designation	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT
901070212KMD	2.00	1.90	10.00	40.0	80.00	0.20	4.00	2	1873085
901070222KMD	2.00	1.90	20.00	60.0	100.00	0.20	4.00	2	1873087
901070313KMD	3.00	2.90	10.00	40.0	80.00	0.30	4.00	2	1873089
901070323KMD	3.00	2.90	20.00	60.0	100.00	0.30	4.00	2	1873091
901070425KMD	4.00	3.90	20.00	60.0	100.00	0.50	4.00	2	1873093
901070435KMD	4.00	3.90	30.00	70.0	110.00	0.50	4.00	2	1873095
901070535KMD	5.00	4.90	30.00	50.0	100.00	0.50	6.00	2	1873097
901070545KMD	5.00	4.90	40.00	60.0	110.00	0.50	6.00	2	1873099
901070635KMD	6.00	5.80	30.00	60.0	110.00	0.50	6.00	2	1873101
901070645KMD	6.00	5.80	40.00	110.0	160.00	0.50	6.00	2	1873103
901070845KMD	8.00	7.80	40.00	60.0	110.00	0.50	8.00	2	1873105
901070855KMD	8.00	7.80	50.00	110.0	160.00	0.50	8.00	2	1873107
901071040KMD	10.00	9.80	40.00	50.0	110.00	1.00	10.00	2	1873109
901071050KMD	10.00	9.80	50.00	100.0	160.00	1.00	10.00	2	1873111
901071250KMD	12.00	11.80	50.00	100.0	160.00	1.00	12.00	2	1873113

Click here for the Cutting Parameters for this family
