UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

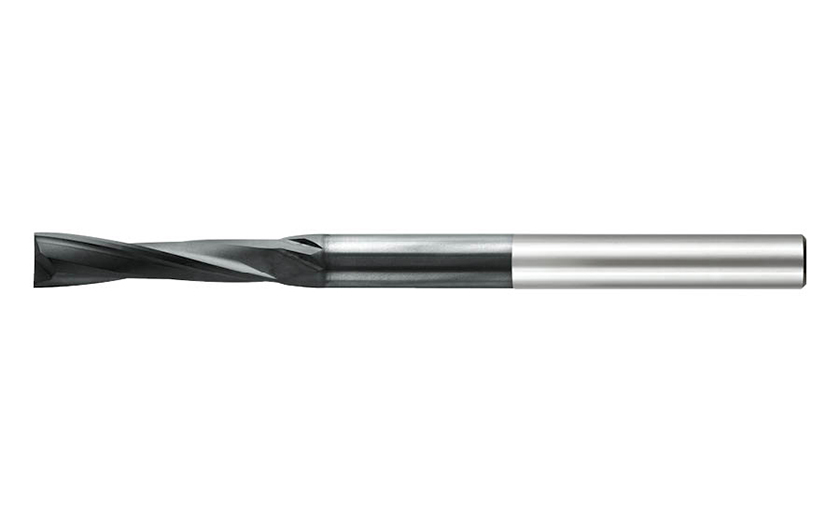

90110 : Flat end, two flute end mills

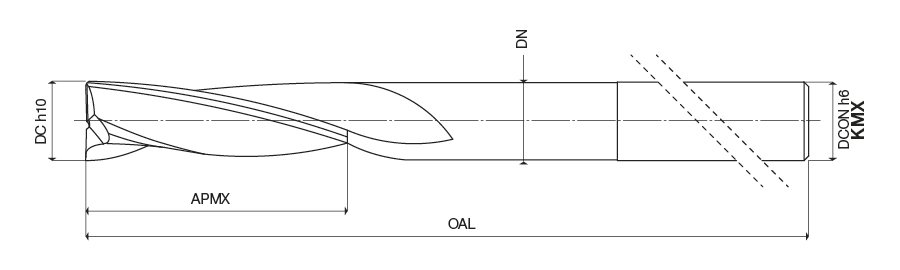

Designation	DC	DN	APMX	OAL	DCONMS	NOF	GICAT	giic	Grade
901100210KMD	2.00	1.90	10.00	80.00	4.00	2	1873115	0
901100220KMD	2.00	1.90	20.00	100.00	4.00	2	1873117	0
901100310KMD	3.00	2.90	10.00	80.00	4.00	2	1873119	0
901100320KMD	3.00	2.90	20.00	100.00	4.00	2	1873121	0
901100420KMD	4.00	3.90	20.00	100.00	4.00	2	1873123	0
901100430KMD	4.00	3.90	30.00	110.00	4.00	2	1873125	1	999999
901100530KMD	5.00	4.90	30.00	100.00	6.00	2	1873127	0
901100540KMD	5.00	4.90	40.00	110.00	6.00	2	1873129	0
901100630KMD	6.00	5.80	30.00	110.00	6.00	2	1873131	1	IC908
901100640KMD	6.00	5.80	40.00	160.00	6.00	2	1873133	0
901100840KMD	8.00	7.80	40.00	110.00	8.00	2	1873135	0
901100850KMD	8.00	7.80	50.00	160.00	8.00	2	1873137	0
901101040KMD	10.00	9.80	40.00	110.00	10.00	2	1873139	0
901101050KMD	10.00	9.80	50.00	160.00	10.00	2	1873141	0
901101250KMD	12.00	11.80	50.00	160.00	12.00	2	1873143	0

Click here for the Cutting Parameters for this family
