UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

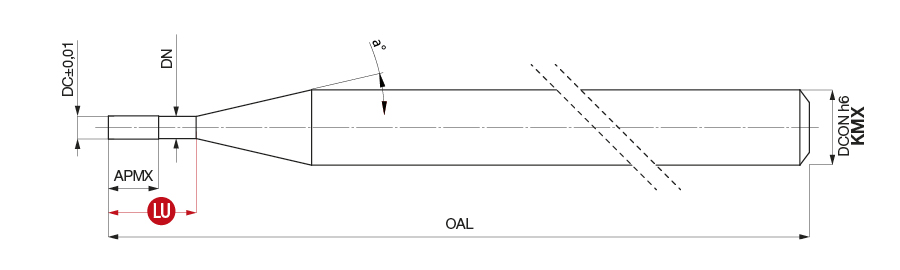

89133 : Micro end mills

Designation	DC	DN	APMX	LU	OAL	DCONMS	NOF	GICAT
891330040KMX	0.40	0.38	0.80	2.00	40.00	3.00	2	1872545
891330050KMX	0.50	0.48	1.00	2.00	40.00	3.00	2	1872548
891330060KMX	0.60	0.58	1.20	2.50	40.00	3.00	2	1872551
891330070KMX	0.70	0.68	1.40	2.50	40.00	3.00	2	1872554
891330080KMX	0.80	0.78	1.60	3.00	40.00	3.00	2	1872557
891330090KMX	0.90	0.88	2.00	3.50	40.00	3.00	2	1872560
891330100KMX	1.00	0.98	2.50	4.00	40.00	4.00	2	1872563
891330110KMX	1.10	1.08	2.50	4.00	40.00	4.00	2	1872566
891330120KMX	1.20	1.18	4.00	5.50	40.00	4.00	2	1872569
891330130KMX	1.30	1.28	4.00	5.50	40.00	4.00	2	1872572
891330140KMX	1.40	1.38	4.00	5.50	40.00	4.00	2	1872575
891330150KMX	1.50	1.48	4.00	5.50	40.00	4.00	2	1872578

Click here for the Cutting Parameters for this family
