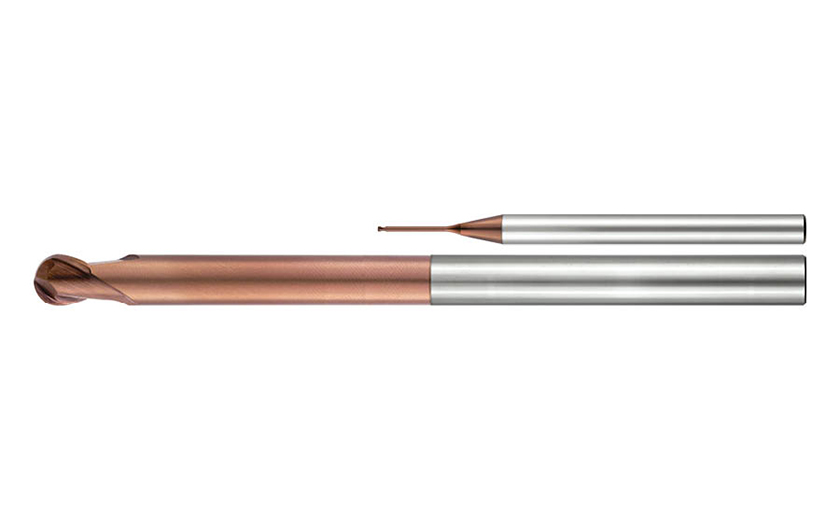

89230 : MICRO end mills, ball-nosed

EVO MICRO

HSC

LAMBDA 30

QUALITY STANDARD UOP

SHORT, NORMAL AND LONG

Designation	GICODE	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT	GIREM	giic
892300050KMX		0.50	0.48	1.00	4.00	50.00	0.25	4.00	2	1885964		0
892300051KMX		0.50	0.48	1.00	6.00	50.00	0.25	4.00	2	1885965		0
892300052KMX		0.50	0.48	0.35	4.00	50.00	0.25	4.00	2	1885966		0
892300053KMX		0.50	0.48	0.35	6.00	50.00	0.25	4.00	2	1885967		0
892300060KMX		0.60	0.58	1.00	4.00	50.00	0.30	4.00	2	1885970		0
892300061KMX		0.60	0.58	1.00	6.00	50.00	0.30	4.00	2	1885971		0
892300062KMX		0.60	0.58	0.40	4.00	50.00	0.30	4.00	2	1885980		0
892300063KMX		0.60	0.58	0.40	8.00	50.00	0.30	4.00	2	1885974		0
892300080KMX		0.80	0.77	1.00	4.00	50.00	0.40	4.00	2	1885976		0
892300081KMX		0.80	0.77	1.00	6.00	50.00	0.40	4.00	2	1885982		0
892300082KMX		0.80	0.77	0.50	2.00	50.00	0.40	4.00	2	1885984		0
892300083KMX		0.80	0.77	0.50	6.00	50.00	0.40	4.00	2	1885987		0
892300084KMX		0.80	0.77	0.50	10.00	50.00	0.40	4.00	2	1885989		0
892300100KMX		1.00	0.95	1.00	5.00	58.00	0.50	6.00	2	1885990		0
892300101KMX		1.00	0.95	1.00	10.00	58.00	0.50	6.00	2	1885999		0
892300102KMX		1.00	0.95	0.80	3.00	50.00	0.50	4.00	2	1885996		0
892300103KMX		1.00	0.95	0.80	4.00	50.00	0.50	4.00	2	1886000		0
892300104KMX		1.00	0.95	0.80	6.00	50.00	0.50	4.00	2	1886001		0
892300105KMX		1.00	0.95	0.80	8.00	50.00	0.50	4.00	2	1886002		0
892300106KMX		1.00	0.95	0.80	10.00	50.00	0.50	4.00	2	1886003		0
892300107KMX		1.00	0.95	0.80	12.00	55.00	0.50	4.00	2	1886004		0
892300108KMX		1.00	0.95	0.80	16.00	55.00	0.50	4.00	2	1886005		0
892300109KMX		1.00	0.95	0.80	20.00	60.00	0.50	4.00	2	1886006		0
892300120KMX		1.20	1.15	1.10	8.00	50.00	0.60	4.00	2	1885930		0
892300121KMX		1.20	1.15	1.10	12.00	55.00	0.60	4.00	2	1886007		0
892300140KMX		1.40	1.34	1.30	8.00	50.00	0.70	4.00	2	1886008		0
892300141KMX		1.40	1.34	1.30	16.00	55.00	0.70	4.00	2	1886009		0
892300150KMX		1.50	1.44	1.50	8.00	58.00	0.75	6.00	2	1886010		0
892300151KMX		1.50	1.44	1.50	12.00	58.00	0.75	6.00	2	1886011		0
892300152KMX		1.50	1.44	1.35	8.00	50.00	0.75	4.00	2	1886012		0
892300153KMX		1.50	1.44	1.35	12.00	55.00	0.75	4.00	2	1886013		0
892300154KMX		1.50	1.44	1.35	20.00	60.00	0.75	4.00	2	1886014		0
892300160KMX		1.60	1.54	1.40	12.00	55.00	0.80	4.00	2	1886015		0
892300161KMX		1.60	1.54	1.40	20.00	60.00	0.80	4.00	2	1886016		0
892300180KMX		1.80	1.73	1.60	12.00	55.00	0.90	4.00	2	1886017		0
892300181KMX		1.80	1.73	1.60	20.00	60.00	0.90	4.00	2	1886018		0
892300200KMX		2.00	1.92	2.00	10.00	58.00	1.00	6.00	2	1886019		0
892300201KMX		2.00	1.92	1.70	6.00	50.00	1.00	4.00	2	1886020		0
892300202KMX		2.00	1.92	1.70	8.00	50.00	1.00	4.00	2	1886021		0
892300203KMX		2.00	1.92	1.70	10.00	50.00	1.00	4.00	2	1886022		0
892300204KMX		2.00	1.92	1.70	12.00	55.00	1.00	4.00	2	1886023		0
892300205KMX		2.00	1.92	1.70	16.00	55.00	1.00	4.00	2	1886024		0
892300206KMX		2.00	1.92	1.70	20.00	60.00	1.00	4.00	2	1886025		0
892300207KMX		2.00	1.92	1.70	25.00	65.00	1.00	4.00	2	1886035		0
892300208KMX		2.00	1.92	1.70	30.00	70.00	1.00	4.00	2	1886036		0
892300212KMX		2.00	1.92	2.00	12.00	58.00	1.00	6.00	2	1886037		0
892300216KMX		2.00	1.92	2.00	16.00	65.00	1.00	6.00	2	1886038		0
892300220KMX		2.00	1.92	2.00	20.00	65.00	1.00	6.00	2	1886039		0
892300250KMX		2.50	2.40	2.00	13.00	58.00	1.25	6.00	2	1886040		0
892300308KMX		3.00	2.85	3.00	8.00	58.00	1.50	6.00	2	1886041		0
892300310KMX		3.00	2.85	2.50	10.00	58.00	1.50	6.00	2	1886043		0
892300312KMX		3.00	2.85	3.00	12.00	58.00	1.50	6.00	2	1886132		0
892300316KMX		3.00	2.85	3.00	16.00	65.00	1.50	6.00	2	1886046		0
892300320KMX		3.00	2.85	4.00	20.00	65.00	1.50	6.00	2	1886049		0
892300325KMX		3.00	2.85	2.50	25.00	70.00	1.50	6.00	2	1886133		0
892300335KMX		3.00	2.85	2.50	35.00	80.00	1.50	6.00	2	1886052		0
892300400KMX		4.00	3.90	3.00	16.00	60.00	2.00	6.00	2	1886134		0
892300401KMX		4.00	3.90	3.00	35.00	80.00	2.00	6.00	2	1886135		0
892300402KMX		4.00	3.90	3.00	50.00	100.00	2.00	6.00	2	1886057		0
892300412KMX		4.00	3.90	4.50	12.00	58.00	2.00	6.00	2	1886060		0
892300416KMX		4.00	3.90	4.50	16.00	58.00	2.00	6.00	2	1886065		0
892300420KMX		4.00	3.90	5.00	20.00	65.00	2.00	6.00	2	1886136		0
892300500KMX		5.00	4.90	3.50	25.00	70.00	2.50	6.00	2	1886067		0
892300501KMX		5.00	4.90	3.50	40.00	80.00	2.50	6.00	2	1886068		0
892300600KMX		6.00	5.90	6.00	30.00	75.00	3.00	6.00	2	1886069		0
892300601KMX		6.00	5.90	6.00	50.00	100.00	3.00	6.00	2	1886137		0

Click here for the Cutting Parameters for this family
