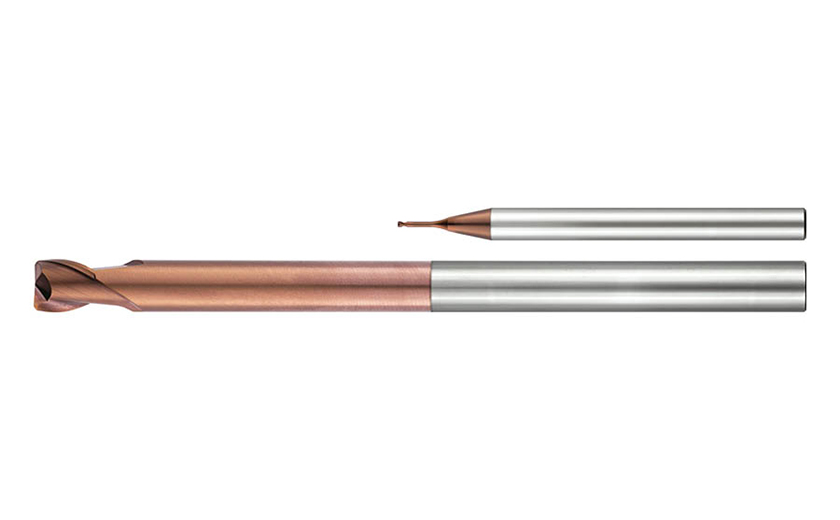

89232 : MICRO end mills, toric

EVO MICRO

HSC

LAMBDA 30

QUALITY STANDARD UOP

SHORT, NORMAL AND LONG

Designation	GICODE	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT	GIREM	giic
892320050KMX		0.50	0.48	1.00	4.00	50.00	0.10	4.00	2	1886070		0
892320051KMX		0.50	0.48	1.00	6.00	50.00	0.10	4.00	2	1886071		0
892320052KMX		0.50	0.48	0.35	4.00	50.00	0.10	4.00	2	1886074		0
892320053KMX		0.50	0.48	0.35	6.00	50.00	0.10	4.00	2	1886083		0
892320060KMX		0.60	0.58	1.00	4.00	50.00	0.10	4.00	2	1886085		0
892320061KMX		0.60	0.58	1.00	6.00	50.00	0.10	4.00	2	1886087		0
892320062KMX		0.60	0.58	0.40	4.00	50.00	0.10	4.00	2	1886088		0
892320063KMX		0.60	0.58	0.40	8.00	50.00	0.10	4.00	2	1886090		0
892320080KMX		0.80	0.77	1.00	4.00	50.00	0.10	4.00	2	1886091		0
892320081KMX		0.80	0.77	1.00	6.00	50.00	0.10	4.00	2	1886092		0
892320082KMX		0.80	0.77	0.50	2.00	50.00	0.10	4.00	2	1886093		0
892320083KMX		0.80	0.77	0.50	6.00	50.00	0.10	4.00	2	1886094		0
892320084KMX		0.80	0.77	0.50	10.00	50.00	0.10	4.00	2	1886095		0
892320100KMX		1.00	0.95	1.00	5.00	58.00	0.10	6.00	2	1886096		0
892320101KMX		1.00	0.95	1.00	10.00	58.00	0.10	6.00	2	1886097		0
892320102KMX		1.00	0.95	0.80	3.00	50.00	0.10	4.00	2	1886098		0
892320103KMX		1.00	0.95	0.80	4.00	50.00	0.10	4.00	2	1886099		0
892320104KMX		1.00	0.95	0.80	6.00	50.00	0.10	4.00	2	1886100		0
892320105KMX		1.00	0.95	0.80	8.00	50.00	0.10	4.00	2	1886101		0
892320106KMX		1.00	0.95	0.80	10.00	50.00	0.10	4.00	2	1886102		0
892320107KMX		1.00	0.95	0.80	12.00	55.00	0.10	4.00	2	1886103		0
892320108KMX		1.00	0.95	0.80	16.00	55.00	0.10	4.00	2	1886104		0
892320109KMX		1.00	0.95	0.80	20.00	60.00	0.10	4.00	2	1886105		0
892320120KMX		1.20	1.15	1.10	8.00	50.00	0.10	4.00	2	1886106		0
892320121KMX		1.20	1.15	1.10	12.00	55.00	0.10	4.00	2	1886107		0
892320141KMX		1.40	1.34	1.30	16.00	55.00	0.10	4.00	2	1886109		0
892320150KMX		1.50	1.44	1.50	8.00	58.00	0.15	6.00	2	1886110		0
892320151KMX		1.50	1.44	1.50	12.00	58.00	0.15	6.00	2	1886111		0
892320152KMX		1.50	1.44	1.35	8.00	50.00	0.15	4.00	2	1886112		0
892320153KMX		1.50	1.44	1.35	12.00	55.00	0.15	4.00	2	1886113		0
892320154KMX		1.50	1.44	1.35	20.00	60.00	0.15	4.00	2	1886114		0
892320160KMX		1.60	1.54	1.40	12.00	55.00	0.15	4.00	2	1886115		0
892320161KMX		1.60	1.54	1.40	20.00	60.00	0.15	4.00	2	1886116		0
892320180KMX		1.80	1.73	1.60	12.00	55.00	0.15	4.00	2	1886117		0
892320181KMX		1.80	1.73	1.60	20.00	60.00	0.15	4.00	2	1886118		0
892320200KMX		2.00	1.92	2.00	10.00	58.00	0.20	6.00	2	1886119		0
892320201KMX		2.00	1.92	1.70	6.00	50.00	0.20	4.00	2	1886120		0
892320202KMX		2.00	1.92	1.70	8.00	50.00	0.20	4.00	2	1886121		0
892320203KMX		2.00	1.92	1.70	10.00	50.00	0.20	4.00	2	1886122		0
892320204KMX		2.00	1.92	1.70	12.00	55.00	0.20	4.00	2	1886123		0
892320205KMX		2.00	1.92	1.70	16.00	55.00	0.20	4.00	2	1886124		0
892320206KMX		2.00	1.92	1.70	20.00	60.00	0.20	4.00	2	1886125		0
892320207KMX		2.00	1.92	1.70	25.00	65.00	0.20	4.00	2	1886126		0
892320208KMX		2.00	1.92	1.70	30.00	70.00	0.20	4.00	2	1886127		0
892320212KMX		2.00	1.92	2.00	12.00	58.00	0.20	6.00	2	1886128		0
892320216KMX		2.00	1.92	2.00	16.00	65.00	0.20	6.00	2	1886129		0
892320220KMX		2.00	1.92	2.00	20.00	65.00	0.20	6.00	2	1886130		0
892320250KMX		2.50	2.40	2.00	13.00	58.00	0.25	6.00	2	1886131		0
892320308KMX		3.00	2.85	3.00	8.00	58.00	0.30	6.00	2	1886072		0
892320310KMX		3.00	2.85	2.50	10.00	58.00	0.30	6.00	2	1886073		0
892320312KMX		3.00	2.85	3.00	12.00	58.00	0.30	6.00	2	1886157		0
892320316KMX		3.00	2.85	3.00	16.00	65.00	0.30	6.00	2	1886075		0
892320320KMX		3.00	2.85	4.00	20.00	65.00	0.30	6.00	2	1886076		0
892320325KMX		3.00	2.85	2.50	25.00	70.00	0.30	6.00	2	1886077		0
892320335KMX		3.00	2.85	2.50	35.00	80.00	0.30	6.00	2	1886078		0
892320400KMX		4.00	3.90	3.00	16.00	60.00	0.40	6.00	2	1886079		0
892320401KMX		4.00	3.90	3.00	35.00	80.00	0.40	6.00	2	1886080		0
892320402KMX		4.00	3.90	3.00	50.00	100.00	0.40	6.00	2	1886081		0
892320412KMX		4.00	3.90	4.50	12.00	58.00	0.40	6.00	2	1886082		0
892320416KMX		4.00	3.90	4.50	16.00	58.00	0.40	6.00	2	1886158		0
892320420KMX		4.00	3.90	5.00	20.00	65.00	0.40	6.00	2	1886084		0
892320500KMX		5.00	4.90	3.50	25.00	70.00	0.50	6.00	2	1886086		0
892320501KMX		5.00	4.90	3.50	40.00	80.00	0.50	6.00	2	1886159		0
892320600KMX		6.00	5.90	6.00	30.00	75.00	0.50	6.00	2	1886160		0
892320601KMX		6.00	5.90	6.00	50.00	100.00	0.50	6.00	2	1886089		0

Click here for the Cutting Parameters for this family
