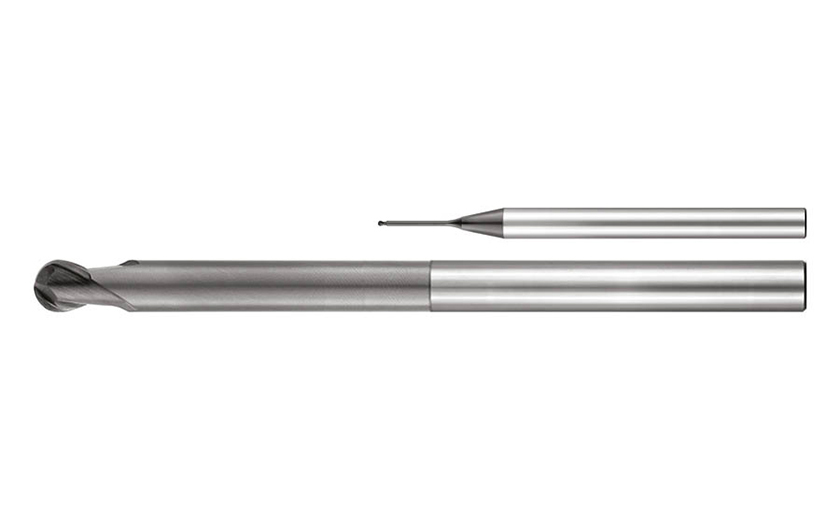

89130 : MICRO end mills, ball-nosed

SKIN3

HSC

LAMBDA 30

QUALITY STANDARD UOP

SHORT, NORMAL AND LONG

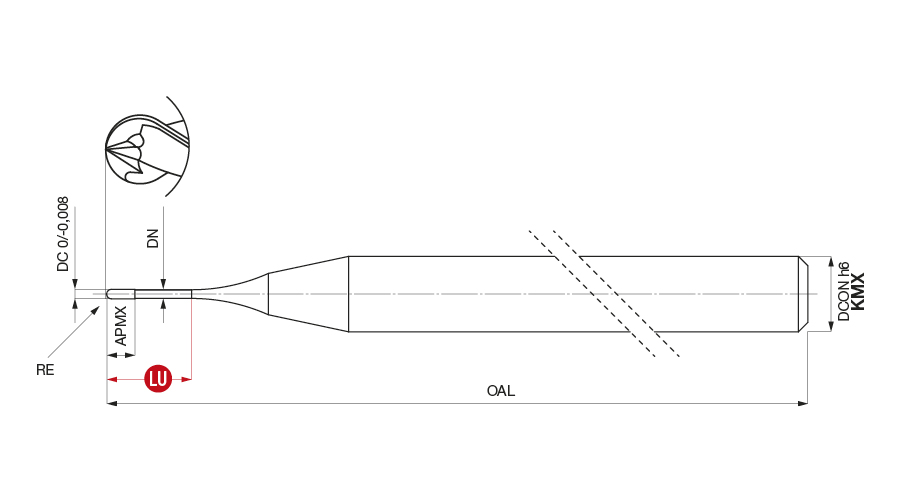

Designation	GICODE	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF						GICAT	GIREM	giic
891300050KMX		0.50	0.48	1.00	4.00	50.00	0.25	4.00	2						1872300		0
891300051KMX		0.50	0.48	1.00	6.00	50.00	0.25	4.00	2						1872304		0
891300052KMX		0.50	0.48	0.35	4.00	50.00	0.25	4.00	2						1883687		0
891300053KMX		0.50	0.48	0.35	6.00	50.00	0.25	4.00	2						1883689		0
891300060KMX		0.60	0.58	1.00	4.00	50.00	0.30	4.00	2						1872307		0
891300061KMX		0.60	0.58	1.00	6.00	50.00	0.30	4.00	2						1872311		0
891300062KMX		0.60	0.58	0.40	4.00	50.00	0.30	4.00	2						1883693		0
891300063KMX		0.60	0.58	0.40	8.00	50.00	0.30	4.00	2						1883696		0
891300080KMX		0.80	0.77	1.00	4.00	50.00	0.40	4.00	2						1872314		0
891300081KMX		0.80	0.77	1.00	6.00	50.00	0.40	4.00	2						1872318		0
891300082KMX		0.80	0.77	0.50	2.00	50.00	0.40	4.00	2						1883699		0
891300083KMX		0.80	0.77	0.50	6.00	50.00	0.40	4.00	2						1883713		0
891300084KMX		0.80	0.77	0.50	10.00	50.00	0.40	4.00	2						1883716		0
891300100KMX		1.00	0.95	1.00	5.00	58.00	0.50	6.00	2						1872321		0
891300101KMX		1.00	0.95	1.00	10.00	58.00	0.50	6.00	2						1872327		0
891300102KMX		1.00	0.95	0.80	3.00	50.00	0.50	4.00	2						1883719		0
891300103KMX		1.00	0.95	0.80	4.00	50.00	0.50	4.00	2						1883722		0
891300104KMX		1.00	0.95	0.80	6.00	50.00	0.50	4.00	2						1883725		0
891300105KMX		1.00	0.95	0.80	8.00	50.00	0.50	4.00	2						1883728		0
891300106KMX		1.00	0.95	0.80	10.00	50.00	0.50	4.00	2						1883731		0
891300107KMX		1.00	0.95	0.80	12.00	55.00	0.50	4.00	2						1883734		0
891300108KMX		1.00	0.95	0.80	16.00	55.00	0.50	4.00	2						1883737		0
891300109KMX		1.00	0.95	0.80	20.00	60.00	0.50	4.00	2						1883740		0
891300120KMX		1.20	1.15	1.10	8.00	50.00	0.60	4.00	2						1883743		0
891300121KMX		1.20	1.15	1.10	12.00	55.00	0.60	4.00	2						1883746		0
891300140KMX		1.40	1.34	1.30	8.00	50.00	0.70	4.00	2						1883749		0
891300141KMX		1.40	1.34	1.30	16.00	55.00	0.70	4.00	2						1883752		0
891300150KMX		1.50	1.44	1.50	8.00	58.00	0.75	6.00	2						1872331		0
891300151KMX		1.50	1.44	1.50	12.00	58.00	0.75	6.00	2						1872337		0
891300152KMX		1.50	1.44	1.35	8.00	50.00	0.75	4.00	2						1883763		0
891300153KMX		1.50	1.44	1.35	12.00	55.00	0.75	4.00	2						1883772		0
891300154KMX		1.50	1.44	1.35	20.00	60.00	0.75	4.00	2						1883778		0
891300160KMX		1.60	1.54	1.40	12.00	55.00	0.80	4.00	2						1883781		0
891300161KMX		1.60	1.54	1.40	20.00	60.00	0.80	4.00	2						1883784		0
891300180KMX		1.80	1.73	1.60	12.00	55.00	0.90	4.00	2						1883787		0
891300181KMX		1.80	1.73	1.60	20.00	60.00	0.90	4.00	2						1883790		0
891300200KMX		2.00	1.92	2.00	10.00	58.00	1.00	6.00	2						1872340		0
891300201KMX		2.00	1.92	1.70	6.00	50.00	1.00	4.00	2						1883793		0
891300202KMX		2.00	1.92	1.70	8.00	50.00	1.00	4.00	2						1883796		0
891300203KMX		2.00	1.92	1.70	10.00	50.00	1.00	4.00	2						1883799		0
891300204KMX		2.00	1.92	1.70	12.00	55.00	1.00	4.00	2						1883802		0
891300205KMX		2.00	1.92	1.70	16.00	55.00	1.00	4.00	2						1883805		0
891300206KMX		2.00	1.92	1.70	20.00	60.00	1.00	4.00	2						1883808		0
891300207KMX		2.00	1.92	1.70	25.00	65.00	1.00	4.00	2						1883811		0
891300208KMX		2.00	1.92	1.70	30.00	70.00	1.00	4.00	2						1883814		0
891300212KMX		2.00	1.92	2.00	12.00	58.00	1.00	6.00	2						1872347		0
891300216KMX		2.00	1.92	2.00	16.00	65.00	1.00	6.00	2						1872351		0
891300220KMX		2.00	1.92	2.00	20.00	65.00	1.00	6.00	2						1872355		0
891300250KMX		2.50	2.40	2.00	13.00	58.00	1.25	6.00	2						1872358		0
891300308KMX		3.00	2.85	3.00	8.00	58.00	1.50	6.00	2						1872363		0
891300310KMX		3.00	2.85	2.50	10.00	58.00	1.50	6.00	2						1883817		0
891300312KMX		3.00	2.85	3.00	12.00	58.00	1.50	6.00	2						1872367		0
891300316KMX		3.00	2.85	3.00	16.00	65.00	1.50	6.00	2						1872371		0
891300320KMX		3.00	2.85	4.00	20.00	65.00	1.50	6.00	2						1872375		0
891300325KMX		3.00	2.85	2.50	25.00	70.00	1.50	6.00	2						1883820		0
891300335KMX		3.00	2.85	2.50	35.00	80.00	1.50	6.00	2						1883823		0
891300400KMX		4.00	3.90	3.00	16.00	60.00	2.00	6.00	2						1883826		0
891300401KMX		4.00	3.90	3.00	35.00	80.00	2.00	6.00	2						1883829		0
891300402KMX		4.00	3.90	3.00	50.00	100.00	2.00	6.00	2						1883832		0
891300412KMX		4.00	3.90	4.50	12.00	58.00	2.00	6.00	2						1872378		0
891300416KMX		4.00	3.90	4.50	16.00	58.00	2.00	6.00	2						1872382		0
891300420KMX		4.00	3.90	5.00	20.00	65.00	2.00	6.00	2						1872386		0
891300500KMX		5.00	4.90	3.50	25.00	70.00	2.50	6.00	2						1883835		0
891300501KMX		5.00	4.90	3.50	40.00	80.00	2.50	6.00	2						1883838		0
891300600KMX		6.00	5.90	6.00	30.00	75.00	3.00	6.00	2						1883841		0
891300601KMX		6.00	5.90	6.00	50.00	100.00	3.00	6.00	2						1883844		0

Click here for the Cutting Parameters for this family
