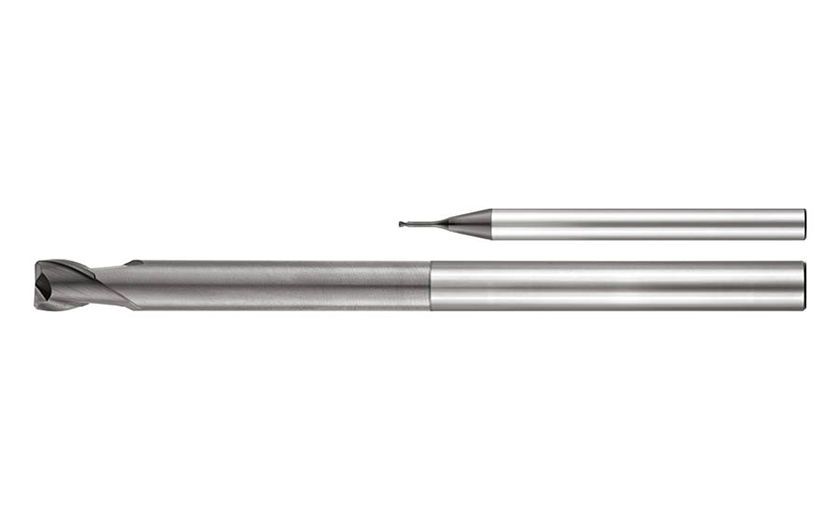

89132 : MICRO end mills, toric

SKIN3

HSC

LAMBDA 30

QUALITY STANDARD UOP

SHORT, NORMAL AND LONG

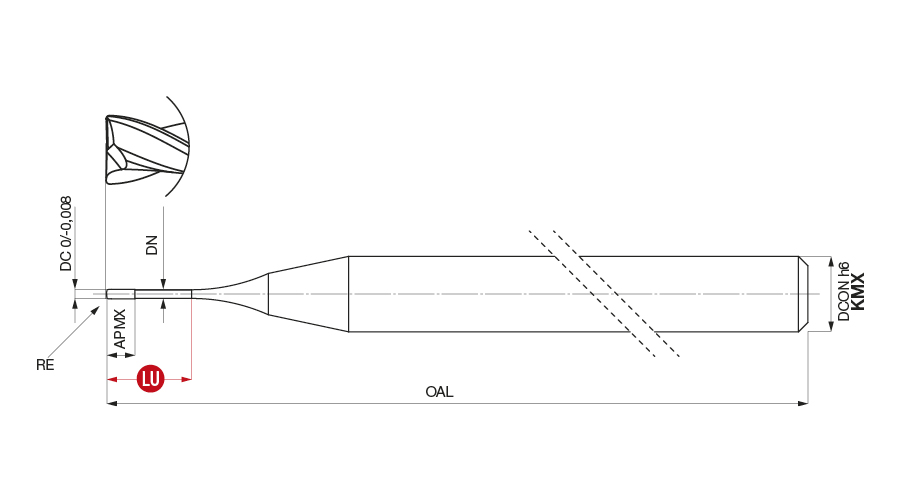

Designation	GICODE	DC	DN	APMX	LU	OAL	RE	DCONMS	NOF	GICAT	GIREM	giic
891320050KMX		0.50	0.48	1.00	4.00	50.00	0.10	4.00	2	1872477		0
891320051KMX		0.50	0.48	1.00	6.00	50.00	0.10	4.00	2	1872480		0
891320052KMX		0.50	0.48	0.35	4.00	50.00	0.10	4.00	2	1884101		0
891320053KMX		0.50	0.48	0.35	6.00	50.00	0.10	4.00	2	1884104		0
891320060KMX		0.60	0.58	1.00	4.00	50.00	0.10	4.00	2	1872483		0
891320061KMX		0.60	0.58	1.00	6.00	50.00	0.10	4.00	2	1872486		0
891320062KMX		0.60	0.58	0.40	4.00	50.00	0.10	4.00	2	1884107		0
891320063KMX		0.60	0.58	0.40	8.00	50.00	0.10	4.00	2	1884110		0
891320080KMX		0.80	0.77	1.00	4.00	50.00	0.10	4.00	2	1872489		0
891320081KMX		0.80	0.77	1.00	6.00	50.00	0.10	4.00	2	1872492		0
891320082KMX		0.80	0.77	0.50	2.00	50.00	0.10	4.00	2	1884113		0
891320083KMX		0.80	0.77	0.50	6.00	50.00	0.10	4.00	2	1884116		0
891320084KMX		0.80	0.77	0.50	10.00	50.00	0.10	4.00	2	1884119		0
891320100KMX		1.00	0.95	1.00	5.00	58.00	0.10	6.00	2	1872496		0
891320101KMX		1.00	0.95	1.00	10.00	58.00	0.10	6.00	2	1872499		0
891320102KMX		1.00	0.95	0.80	3.00	50.00	0.10	4.00	2	1884122		0
891320103KMX		1.00	0.95	0.80	4.00	50.00	0.10	4.00	2	1884125		0
891320104KMX		1.00	0.95	0.80	6.00	50.00	0.10	4.00	2	1884128		0
891320105KMX		1.00	0.95	0.80	8.00	50.00	0.10	4.00	2	1884131		0
891320106KMX		1.00	0.95	0.80	10.00	50.00	0.10	4.00	2	1884135		0
891320107KMX		1.00	0.95	0.80	12.00	55.00	0.10	4.00	2	1884140		0
891320108KMX		1.00	0.95	0.80	16.00	55.00	0.10	4.00	2	1884142		0
891320109KMX		1.00	0.95	0.80	20.00	60.00	0.10	4.00	2	1884146		0
891320120KMX		1.20	1.15	1.10	8.00	50.00	0.10	4.00	2	1884149		0
891320121KMX		1.20	1.15	1.10	12.00	55.00	0.10	4.00	2	1884152		0
891320140KMX		1.40	1.34	1.30	8.00	50.00	0.10	4.00	2	1884155		0
891320141KMX		1.40	1.34	1.30	16.00	55.00	0.10	4.00	2	1884159		0
891320150KMX		1.50	1.44	1.50	8.00	58.00	0.15	6.00	2	1872502		0
891320151KMX		1.50	1.44	1.50	12.00	58.00	0.15	6.00	2	1872505		0
891320152KMX		1.50	1.44	1.35	8.00	50.00	0.15	4.00	2	1884162		0
891320153KMX		1.50	1.44	1.35	12.00	55.00	0.15	4.00	2	1884165		0
891320154KMX		1.50	1.44	1.35	20.00	60.00	0.15	4.00	2	1884168		0
891320160KMX		1.60	1.54	1.40	12.00	55.00	0.15	4.00	2	1884171		0
891320161KMX		1.60	1.54	1.40	20.00	60.00	0.15	4.00	2	1884174		0
891320181KMX		1.80	1.73	1.60	20.00	60.00	0.15	4.00	2	1884180		0
891320200KMX		2.00	1.92	2.00	10.00	58.00	0.20	6.00	2	1872508		0
891320201KMX		2.00	1.92	1.70	6.00	50.00	0.20	4.00	2	1884183		0
891320202KMX		2.00	1.92	1.70	8.00	50.00	0.20	4.00	2	1884186		0
891320203KMX		2.00	1.92	1.70	10.00	50.00	0.20	4.00	2	1884196		0
891320204KMX		2.00	1.92	1.70	12.00	55.00	0.20	4.00	2	1884199		0
891320205KMX		2.00	1.92	1.70	16.00	55.00	0.20	4.00	2	1884202		0
891320206KMX		2.00	1.92	1.70	20.00	60.00	0.20	4.00	2	1884205		0
891320207KMX		2.00	1.92	1.70	25.00	65.00	0.20	4.00	2	1884208		0
891320208KMX		2.00	1.92	1.70	30.00	70.00	0.20	4.00	2	1884211		0
891320212KMX		2.00	1.92	2.00	12.00	58.00	0.20	6.00	2	1872512		0
891320216KMX		2.00	1.92	2.00	16.00	65.00	0.20	6.00	2	1872515		0
891320220KMX		2.00	1.92	2.00	20.00	65.00	0.20	6.00	2	1872518		0
891320250KMX		2.50	2.40	2.00	13.00	58.00	0.25	6.00	2	1872521		0
891320308KMX		3.00	2.85	3.00	8.00	58.00	0.30	6.00	2	1872524		0
891320310KMX		3.00	2.85	2.50	10.00	58.00	0.30	6.00	2	1884214		0
891320312KMX		3.00	2.85	3.00	12.00	58.00	0.30	6.00	2	1872527		0
891320316KMX		3.00	2.85	3.00	16.00	65.00	0.30	6.00	2	1872530		0
891320320KMX		3.00	2.85	4.00	20.00	65.00	0.30	6.00	2	1872533		0
891320325KMX		3.00	2.85	2.50	25.00	70.00	0.30	6.00	2	1884217		0
891320335KMX		3.00	2.85	2.50	35.00	80.00	0.30	6.00	2	1884218		0
891320400KMX		4.00	3.90	3.00	16.00	60.00	0.40	6.00	2	1884223		0
891320401KMX		4.00	3.90	3.00	35.00	80.00	0.40	6.00	2	1884226		0
891320402KMX		4.00	3.90	3.00	50.00	100.00	0.40	6.00	2	1884229		0
891320412KMX		4.00	3.90	4.50	12.00	58.00	0.40	6.00	2	1872536		0
891320416KMX		4.00	3.90	4.50	16.00	58.00	0.40	6.00	2	1872539		0
891320420KMX		4.00	3.90	5.00	20.00	65.00	0.40	6.00	2	1872542		0
891320500KMX		5.00	4.90	3.50	25.00	70.00	0.50	6.00	2	1884232		0
891320501KMX		5.00	4.90	3.50	40.00	80.00	0.50	6.00	2	1884235		0
891320600KMX		6.00	5.90	6.00	30.00	75.00	0.50	6.00	2	1884238		0
891320601KMX		6.00	5.90	6.00	50.00	100.00	0.50	6.00	2	1884241		0

Click here for the Cutting Parameters for this family
