UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

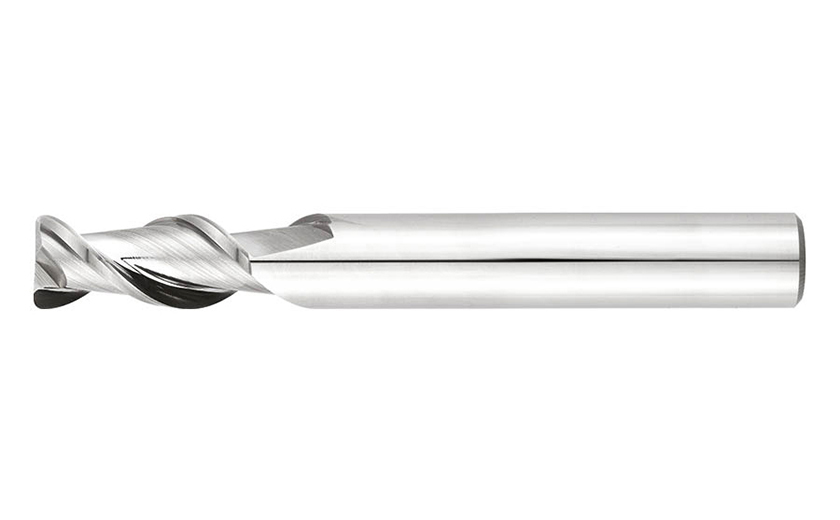

40135 : Two flute toric end mills

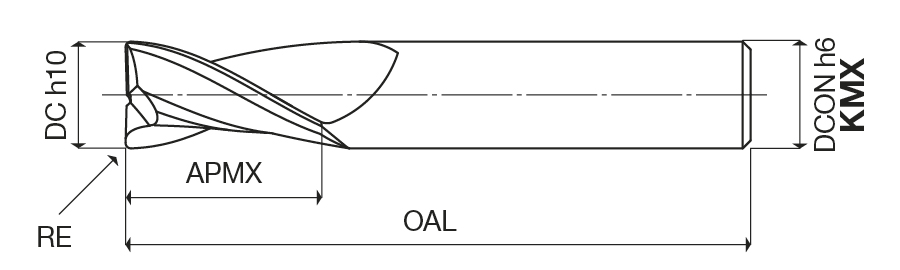

Designation	DC	RE	APMX	OAL	DCONMS	NOF	GICAT
401350300KM	3.00	0.50	8.00	57.00	6.00	2	1851603
401350400KM	4.00	0.50	11.00	57.00	6.00	2	1851606
401350500KM	5.00	0.50	13.00	57.00	6.00	2	1851609
401350600KM	6.00	0.50	13.00	57.00	6.00	2	1851612
401350800KM	8.00	0.50	19.00	63.00	8.00	2	1851615
401351000KM	10.00	1.00	22.00	72.00	10.00	2	1851618
401351200KM	12.00	1.00	26.00	83.00	12.00	2	1851621
401351400KM	14.00	1.00	26.00	83.00	14.00	2	1851624
401351600KM	16.00	1.50	32.00	92.00	16.00	2	1851627
401351800KM	18.00	1.50	32.00	92.00	18.00	2	1851630
401352000KM	20.00	2.00	38.00	104.00	20.00	2	1851633

Click here for the Cutting Parameters for this family
