UOP Cutting Tools - Metal Working Tools - Milling - - 40170
×




Milling
Main Application

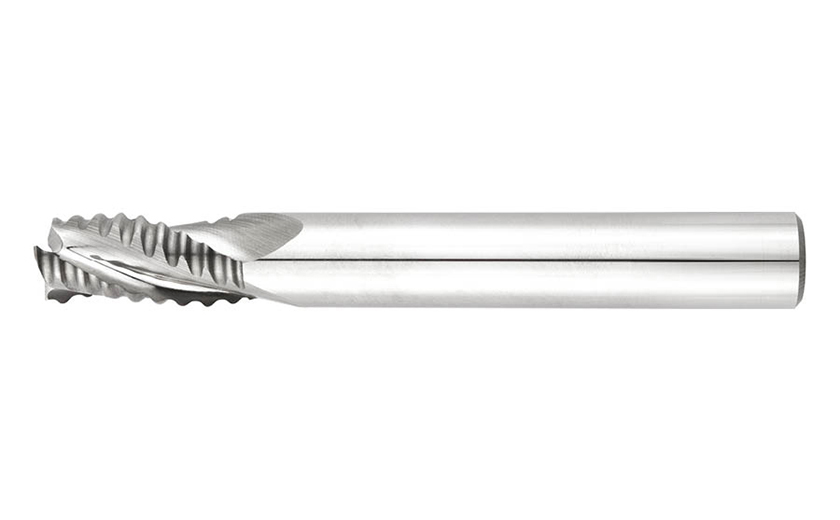

40170 : Roughing end mills. Polished flutes


 COATING ON REQUEST  NRW  LAMBDA 30  WELDON ON REQUEST  QUALITY STANDARD UOP  NORMAL

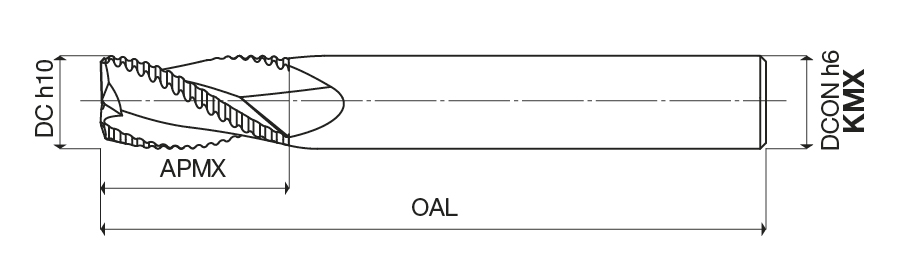

  DesignationGICODEDCAPMXOALDCONMSNOFGICATGIREMgiic
  401700600KM  6.0016.0057.006.0031851678 0
  401700700KM  7.0016.0063.008.0031851681 0
  401700800KM  8.0016.0063.008.0031851684 0
  401700900KM  9.0019.0072.0010.0031851687 0
  401701000KM  10.0022.0072.0010.0031851690 0
  401701200KM  12.0026.0083.0012.0031851693 0
  401701400KM  14.0026.0083.0014.0031851696 0
  401701600KM  16.0032.0092.0016.0031851699 0
  401701800KM  18.0032.0092.0018.0031851702 0
  401702000KM  20.0038.00104.0020.0031851705 0
  401702500KM  25.0045.00125.0025.0031851708 0
Click here for the Cutting Parameters for this family
