Milling
Main Application
Cutting Parameters
for this family
41107 :

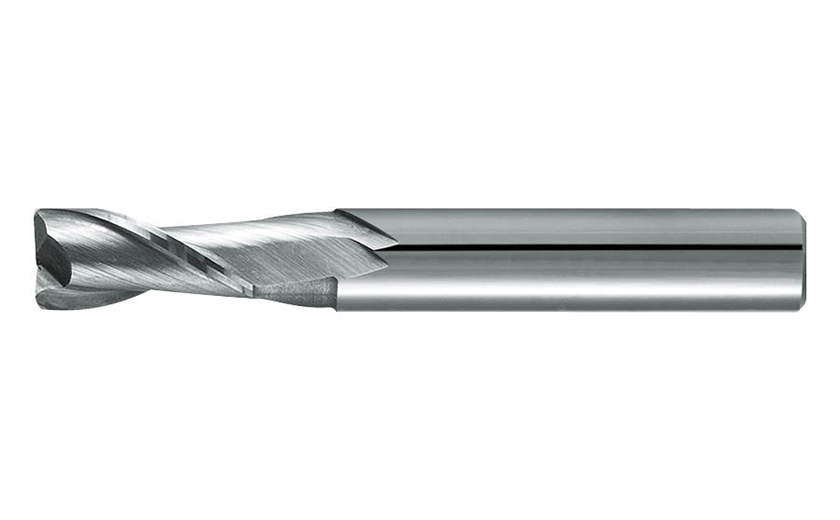

Toric two flutes end mills

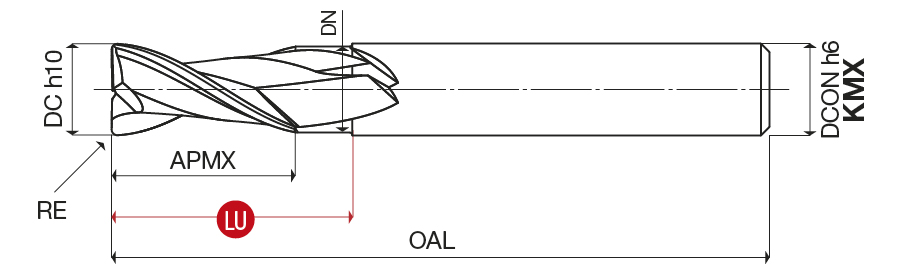

Designation
GICODE
DC
DN
APMX
LU
OAL
RE
DCONMS
NOF
GICAT
GIREM
giic
411070200KM
2.00
1.90
7.00
11.00
40.00
0.20
2.00
2
1852273
0
411070200KMX
2.00
1.90
7.00
11.00
40.00
0.20
2.00
2
1852274
0
411070300KM
3.00
2.80
8.00
12.00
40.00
0.30
3.00
2
1852276
0
411070300KMX
3.00
2.80
8.00
12.00
40.00
0.30
3.00
2
1852277
0
411070400KM
4.00
3.70
10.00
16.00
50.00
0.50
4.00
2
1852279
0
411070400KMX
4.00
3.70
10.00
16.00
50.00
0.50
4.00
2
1852280
0
411070500KM
5.00
4.60
12.00
16.00
50.00
0.50
5.00
2
1852283
0
411070500KMX
5.00
4.60
12.00
16.00
50.00
0.50
5.00
2
1852284
0
411070600KM
6.00
5.50
14.00
20.00
57.00
0.50
6.00
2
1852286
0
411070600KMX
6.00
5.50
14.00
20.00
57.00
0.50
6.00
2
1852287
0
411070800KM
8.00
7.40
16.00
22.00
63.00
1.00
8.00
2
1852289
0
411070800KMX
8.00
7.40
16.00
22.00
63.00
1.00
8.00
2
1852290
0
411071000KM
10.00
9.20
20.00
28.00
72.00
1.00
10.00
2
1852292
0
411071000KMX
10.00
9.20
20.00
28.00
72.00
1.00
10.00
2
1852293
0
411071200KM
12.00
11.00
22.00
30.00
83.00
1.00
12.00
2
1852295
0
411071200KMX
12.00
11.00
22.00
30.00
83.00
1.00
12.00
2
1852296
0
411071400KM
14.00
13.00
25.00
33.00
83.00
1.50
14.00
2
1852298
0
411071400KMX
14.00
13.00
25.00
33.00
83.00
1.50
14.00
2
1852299
0
411071600KM
16.00
15.00
32.00
42.00
92.00
1.50
16.00
2
1852301
0
411071600KMX
Y
16.00
15.00
32.00
42.00
92.00
1.50
16.00
2
1852302
0
411071800KM
18.00
17.00
32.00
42.00
92.00
2.00
18.00
2
1852304
0
411071800KMX
18.00
17.00
32.00
42.00
92.00
2.00
18.00
2
1852305
0
411072000KM
20.00
19.00
38.00
50.00
104.00
2.00
20.00
2
1852307
0
411072000KMX
20.00
19.00
38.00
50.00
104.00
2.00
20.00
2
1852308
0
Click here for the Cutting Parameters for this family
