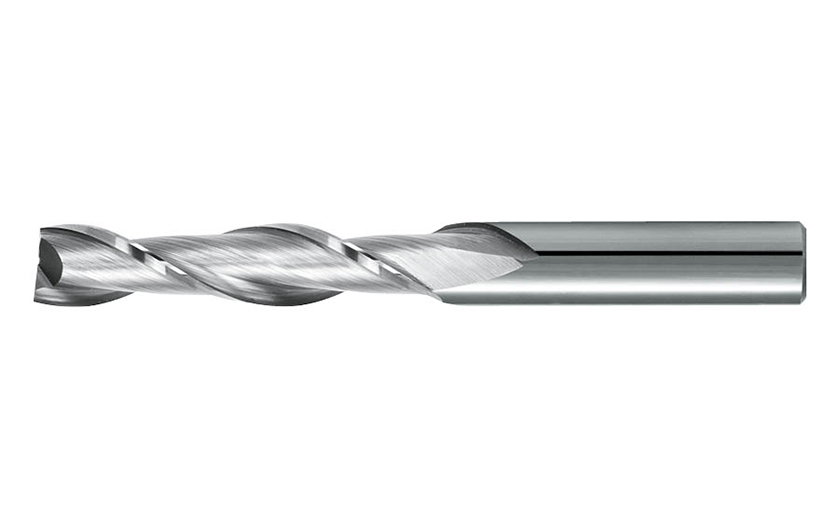

41110 : Two flutes end mills

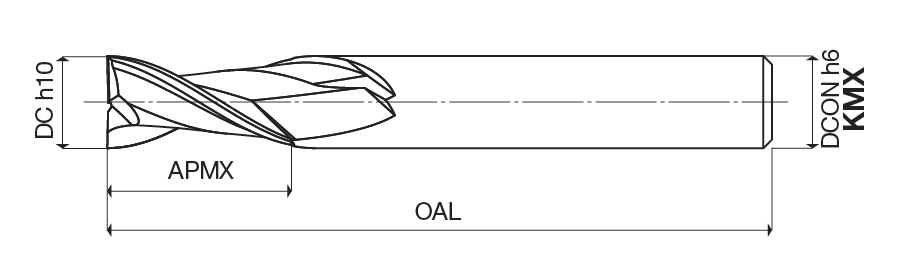

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
411100300KM	3.00	20.00	55.00	3.00	2	1852310
411100300KMX	3.00	20.00	55.00	3.00	2	1852311
411100400KM	4.00	20.00	60.00	4.00	2	1852323
411100400KMX	4.00	20.00	60.00	4.00	2	1852324
411100500KM	5.00	20.00	60.00	5.00	2	1852341
411100500KMX	5.00	20.00	60.00	5.00	2	1852342
411100600KM	6.00	24.00	65.00	6.00	2	1852357
411100600KMX	6.00	24.00	65.00	6.00	2	1852359
411100700KM	7.00	30.00	75.00	7.00	2	1852381
411100700KMX	7.00	30.00	75.00	7.00	2	1852382
411100800KM	8.00	32.00	80.00	8.00	2	1852390
411100800KMX	8.00	32.00	80.00	8.00	2	1852392
411100900KM	9.00	32.00	80.00	9.00	2	1852410
411100900KMX	9.00	32.00	80.00	9.00	2	1852412
411101000KM	10.00	32.00	80.00	10.00	2	1852420
411101000KMX	10.00	32.00	80.00	10.00	2	1852421
411101100KM	11.00	50.00	100.00	11.00	2	1852440
411101100KMX	11.00	50.00	100.00	11.00	2	1852441
411101200KM	12.00	50.00	100.00	12.00	2	1852447
411101200KMX	12.00	50.00	100.00	12.00	2	1852449
411101300KM	13.00	55.00	115.00	13.00	2	1852463
411101300KMX	13.00	55.00	115.00	13.00	2	1852465
411101400KM	14.00	55.00	115.00	14.00	2	1852471
411101400KMX	14.00	55.00	115.00	14.00	2	1852473
411101500KM	15.00	60.00	120.00	15.00	2	1852483
411101500KMX	15.00	60.00	120.00	15.00	2	1852484
411101600KM	16.00	60.00	120.00	16.00	2	1852489
411101600KMX	16.00	60.00	120.00	16.00	2	1852491
411101700KM	17.00	60.00	120.00	17.00	2	1852502
411101700KMX	17.00	60.00	120.00	17.00	2	1852503
411101800KM	18.00	60.00	120.00	18.00	2	1852508
411101800KMX	18.00	60.00	120.00	18.00	2	1852509
411101900KM	19.00	60.00	130.00	19.00	2	1852516
411101900KMX	19.00	60.00	130.00	19.00	2	1852517
411102000KM	20.00	60.00	130.00	20.00	2	1852521
411102000KMX	20.00	60.00	130.00	20.00	2	1852523

Click here for the Cutting Parameters for this family

Milling
Main Application
