UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

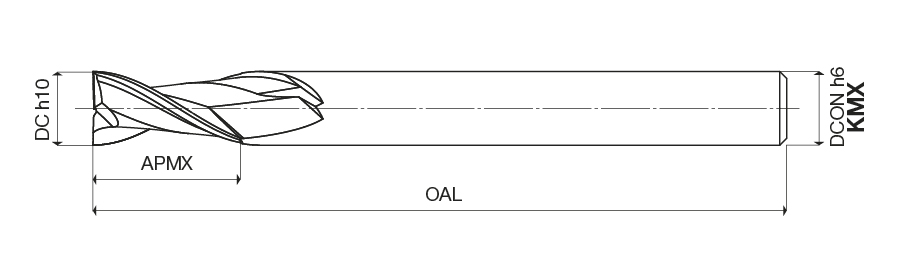

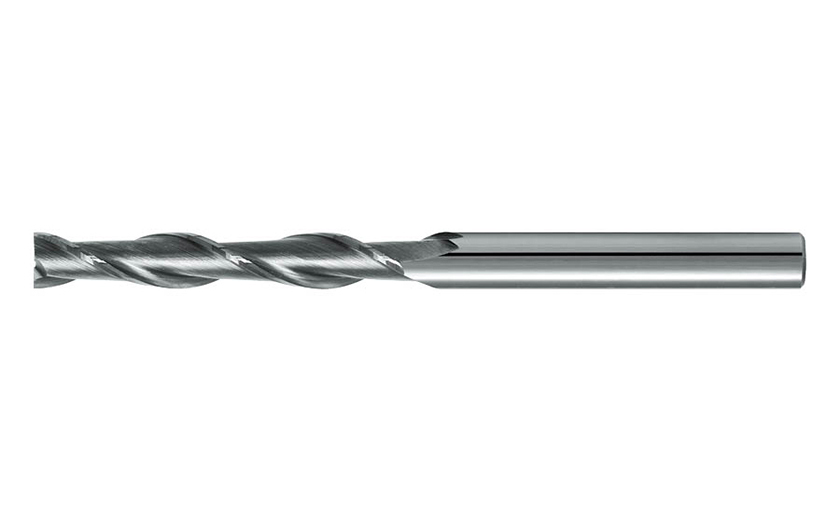

41120 : Two flute end mills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
411200300KM	3.00	25.00	70.00	3.00	2	1852531
411200300KMX	3.00	25.00	70.00	3.00	2	1852532
411200400KM	4.00	32.00	72.00	4.00	2	1852548
411200400KMX	4.00	32.00	72.00	4.00	2	1852549
411200500KM	5.00	32.00	80.00	5.00	2	1852561
411200500KMX	5.00	32.00	80.00	5.00	2	1852562
411200600KM	6.00	40.00	80.00	6.00	2	1852573
411200600KMX	6.00	40.00	80.00	6.00	2	1852574
411200700KM	7.00	42.00	100.00	7.00	2	1852586
411200700KMX	7.00	42.00	100.00	7.00	2	1852587
411200800KM	8.00	42.00	100.00	8.00	2	1852593
411200800KMX	8.00	42.00	100.00	8.00	2	1852594
411200900KM	9.00	45.00	100.00	9.00	2	1852608
411200900KMX	9.00	45.00	100.00	9.00	2	1852609
411201000KM	10.00	45.00	100.00	10.00	2	1852614
411201000KMX	10.00	45.00	100.00	10.00	2	1852616
411201100KM	11.00	70.00	130.00	11.00	2	1852628
411201100KMX	11.00	70.00	130.00	11.00	2	1852629
411201200KM	12.00	75.00	160.00	12.00	2	1852633
411201200KMX	12.00	75.00	160.00	12.00	2	1852635
411201300KM	13.00	75.00	160.00	13.00	2	1852641
411201300KMX	13.00	75.00	160.00	13.00	2	1852642
411201400KM	14.00	75.00	160.00	14.00	2	1852646
411201400KMX	14.00	75.00	160.00	14.00	2	1852647
411201500KM	15.00	75.00	160.00	15.00	2	1852653
411201500KMX	15.00	75.00	160.00	15.00	2	1852654
411201600KM	16.00	75.00	160.00	16.00	2	1852659
411201600KMX	16.00	75.00	160.00	16.00	2	1852660
411201700KM	17.00	75.00	160.00	17.00	2	1852667
411201700KMX	17.00	75.00	160.00	17.00	2	1852668
411201800KM	18.00	75.00	160.00	18.00	2	1852672
411201800KMX	18.00	75.00	160.00	18.00	2	1852673
411201900KM	19.00	75.00	160.00	19.00	2	1852679
411201900KMX	19.00	75.00	160.00	19.00	2	1852680
411202000KM	20.00	75.00	160.00	20.00	2	1852684
411202000KMX	20.00	75.00	160.00	20.00	2	1852685
