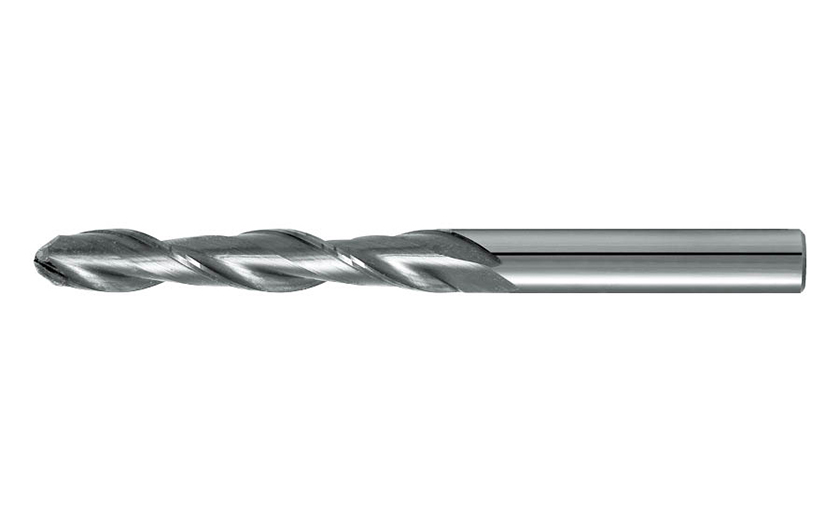

41150 : Ball-nosed two flute end mills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
411500300KM	3.00	25.00	70.00	3.00	2	1853219
411500300KMX	3.00	25.00	70.00	3.00	2	1853220
411500400KM	4.00	32.00	72.00	4.00	2	1853236
411500400KMX	4.00	32.00	72.00	4.00	2	1853237
411500500KM	5.00	32.00	80.00	5.00	2	1853252
411500500KMX	5.00	32.00	80.00	5.00	2	1853253
411500600KM	6.00	40.00	80.00	6.00	2	1853267
411500600KMX	6.00	40.00	80.00	6.00	2	1853268
411500700KM	7.00	42.00	100.00	7.00	2	1853284
411500700KMX	7.00	42.00	100.00	7.00	2	1853285
411500800KM	8.00	42.00	100.00	8.00	2	1853290
411500800KMX	8.00	42.00	100.00	8.00	2	1853291
411500900KM	9.00	45.00	100.00	9.00	2	1853308
411500900KMX	9.00	45.00	100.00	9.00	2	1853309
411501000KM	10.00	45.00	100.00	10.00	2	1853315
411501000KMX	10.00	45.00	100.00	10.00	2	1853316
411501100KM	11.00	70.00	130.00	11.00	2	1853330
411501100KMX	11.00	70.00	130.00	11.00	2	1853331
411501200KM	12.00	75.00	160.00	12.00	2	1853335
411501200KMX	12.00	75.00	160.00	12.00	2	1853336
411501300KM	13.00	75.00	160.00	13.00	2	1853348
411501300KMX	13.00	75.00	160.00	13.00	2	1853349
411501400KM	14.00	75.00	160.00	14.00	2	1853354
411501400KMX	14.00	75.00	160.00	14.00	2	1853355
411501500KM	15.00	75.00	160.00	15.00	2	1853363
411501500KMX	15.00	75.00	160.00	15.00	2	1853364
411501600KM	16.00	75.00	160.00	16.00	2	1853368
411501600KMX	16.00	75.00	160.00	16.00	2	1853369
411501700KM	17.00	75.00	160.00	17.00	2	1853379
411501700KMX	17.00	75.00	160.00	17.00	2	1853380
411501800KM	18.00	75.00	160.00	18.00	2	1853384
411501800KMX	18.00	75.00	160.00	18.00	2	1853385
411501900KM	19.00	75.00	160.00	19.00	2	1853389
411501900KMX	19.00	75.00	160.00	19.00	2	1853390
411502000KM	20.00	75.00	160.00	20.00	2	1853394
411502000KMX	20.00	75.00	160.00	20.00	2	1853395
