Milling
>
>
42105
Milling
Main Application
Cutting Parameters
for this family
42105 :

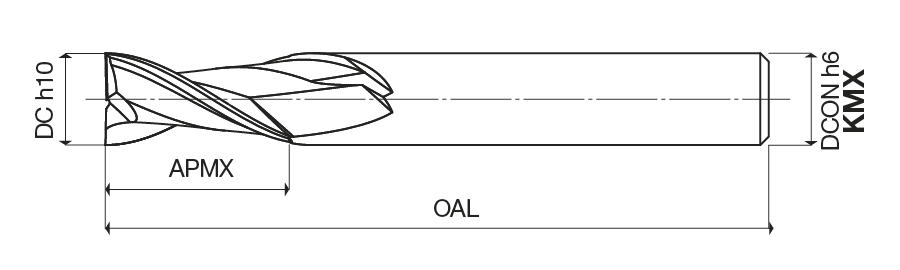

Two flute and mills
Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
421050100KM
1.00
3.00
38.00
3.00
2
1853402
0
421050100KMX
1.00
3.00
38.00
3.00
2
1853404
0
421050150KM
1.50
3.00
38.00
3.00
2
1853423
0
421050150KMX
1.50
3.00
38.00
3.00
2
1853424
0
421050200KM
2.00
3.00
38.00
3.00
2
1853442
0
421050200KMX
2.00
3.00
38.00
3.00
2
1853444
0
421050250KM
2.50
3.00
38.00
3.00
2
1853460
0
421050250KMX
2.50
3.00
38.00
3.00
2
1853461
0
421050300KM
3.00
4.00
38.00
3.00
2
1853475
0
421050300KMX
3.00
4.00
38.00
3.00
2
1853476
0
421050301KM
3.00
4.00
50.00
6.00
2
1853489
0
421050301KMX
3.00
4.00
50.00
6.00
2
1853491
0
421050350KM
3.50
4.00
50.00
6.00
2
1853503
0
421050350KMX
3.50
4.00
50.00
6.00
2
1853505
0
421050400KM
4.00
5.00
54.00
6.00
2
1853516
0
421050400KMX
4.00
5.00
54.00
6.00
2
1853518
0
421050450KM
4.50
5.00
54.00
6.00
2
1853534
0
421050450KMX
4.50
5.00
54.00
6.00
2
1853536
0
421050500KM
5.00
6.00
54.00
6.00
2
1853546
0
421050500KMX
5.00
6.00
54.00
6.00
2
1853548
0
421050600KM
6.00
7.00
54.00
6.00
2
1853564
0
421050600KMX
6.00
7.00
54.00
6.00
2
1853566
0
421050700KM
7.00
8.00
58.00
8.00
2
1853578
0
421050700KMX
7.00
8.00
58.00
8.00
2
1853580
0
421050800KM
8.00
9.00
58.00
8.00
2
1853591
0
421050800KMX
8.00
9.00
58.00
8.00
2
1853593
0
421050900KM
9.00
10.00
66.00
10.00
2
1853608
0
421050900KMX
9.00
10.00
66.00
10.00
2
1853610
0
421051000KM
10.00
11.00
66.00
10.00
2
1853620
0
421051000KMX
10.00
11.00
66.00
10.00
2
1853622
0
421051200KM
12.00
12.00
73.00
12.00
2
1853635
0
421051200KMX
12.00
12.00
73.00
12.00
2
1853637
0
421051400KM
14.00
14.00
75.00
14.00
2
1853647
0
421051400KMX
14.00
14.00
75.00
14.00
2
1853649
0
421051600KM
16.00
16.00
82.00
16.00
2
1853655
0
421051600KMX
16.00
16.00
82.00
16.00
2
1853657
0
421051800KM
18.00
18.00
84.00
18.00
2
1853666
0
421051800KMX
18.00
18.00
84.00
18.00
2
1853668
0
421052000KM
20.00
20.00
92.00
20.00
2
1853673
0
421052000KMX
20.00
20.00
92.00
20.00
2
1853675
0
Click here for the Cutting Parameters for this family
