Milling
Main Application
Cutting Parameters
for this family
43105 :

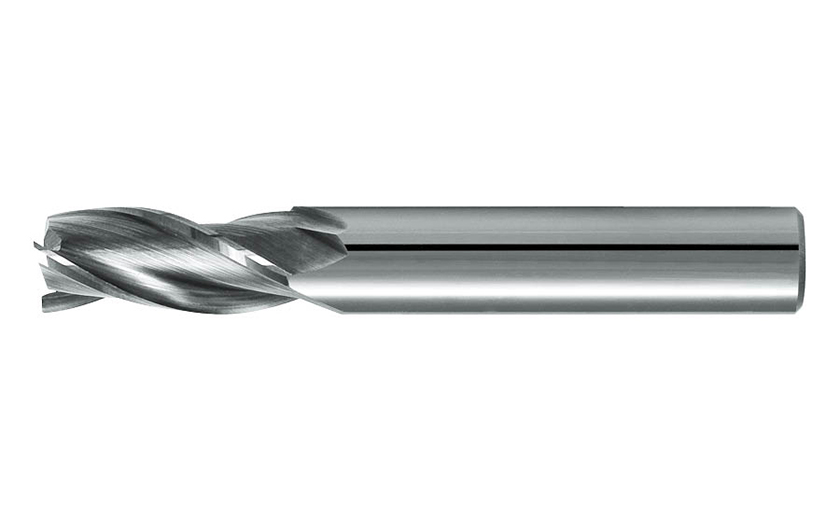

Three flute end mills

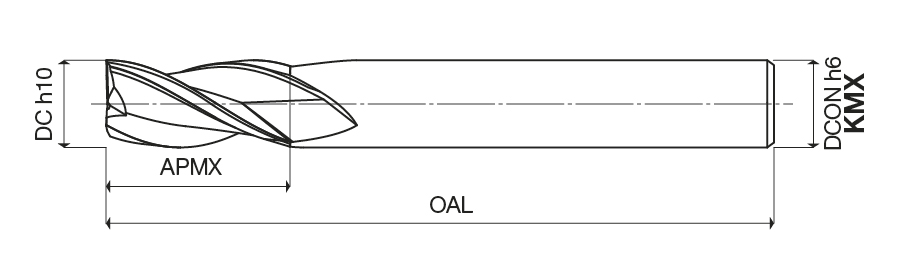

Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
431050200KM
2.00
7.00
40.00
2.00
3
1854234
0
431050200KMX
2.00
7.00
40.00
2.00
3
1854235
0
431050250KM
2.50
10.00
40.00
2.50
3
1854254
0
431050250KMX
2.50
10.00
40.00
2.50
3
1854255
0
431050300KM
3.00
10.00
40.00
3.00
3
1854272
0
431050300KMX
3.00
10.00
40.00
3.00
3
1854273
0
431050350KM
3.50
11.00
50.00
3.50
3
1854293
0
431050350KMX
3.50
11.00
50.00
3.50
3
1854294
0
431050400KM
4.00
11.00
50.00
4.00
3
1854312
0
431050400KMX
4.00
11.00
50.00
4.00
3
1854314
0
431050450KM
4.50
13.00
50.00
4.50
3
1854334
0
431050450KMX
4.50
13.00
50.00
4.50
3
1854335
0
431050500KM
5.00
13.00
50.00
5.00
3
1854352
0
431050500KMX
5.00
13.00
50.00
5.00
3
1854353
0
431050550KM
5.50
16.00
57.00
5.50
3
1854375
0
431050550KMX
5.50
16.00
57.00
5.50
3
1854376
0
431050600KM
6.00
16.00
57.00
6.00
3
1854392
0
431050600KMX
6.00
16.00
57.00
6.00
3
1854394
0
431050650KM
6.50
16.00
60.00
6.50
3
1854415
0
431050650KMX
6.50
16.00
60.00
6.50
3
1854417
0
431050700KM
7.00
16.00
60.00
7.00
3
1854432
0
431050700KMX
7.00
16.00
60.00
7.00
3
1854433
0
431050750KM
7.50
19.00
63.00
7.50
3
1854453
0
431050750KMX
7.50
19.00
63.00
7.50
3
1854454
0
431050800KM
8.00
19.00
63.00
8.00
3
1854471
0
431050800KMX
8.00
19.00
63.00
8.00
3
1854473
0
431050850KM
8.50
19.00
67.00
8.50
3
1854494
0
431050850KMX
8.50
19.00
67.00
8.50
3
1854495
0
431050900KM
9.00
19.00
67.00
9.00
3
1854510
0
431050900KMX
9.00
19.00
67.00
9.00
3
1854511
0
431050950KM
9.50
22.00
72.00
9.50
3
1854530
0
431050950KMX
9.50
22.00
72.00
9.50
3
1854531
0
431051000KM
10.00
22.00
72.00
10.00
3
1854545
0
431051000KMX
10.00
22.00
72.00
10.00
3
1854547
0
431051050KM
10.50
22.00
72.00
10.50
3
1854568
0
431051050KMX
10.50
22.00
72.00
10.50
3
1854569
0
431051100KM
11.00
22.00
83.00
11.00
3
1854583
0
431051100KMX
11.00
22.00
83.00
11.00
3
1854584
0
431051200KM
12.00
26.00
83.00
12.00
3
1854600
0
431051200KMX
12.00
26.00
83.00
12.00
3
1854602
0
431051300KM
13.00
26.00
83.00
13.00
3
1854622
0
431051300KMX
13.00
26.00
83.00
13.00
3
1854623
0
431051400KM
14.00
28.00
83.00
14.00
3
1854638
0
431051400KMX
14.00
28.00
83.00
14.00
3
1854640
0
431051500KM
15.00
32.00
92.00
15.00
3
1854660
0
431051500KMX
15.00
32.00
92.00
15.00
3
1854662
0
431051600KM
16.00
32.00
92.00
16.00
3
1854679
0
431051600KMX
16.00
32.00
92.00
16.00
3
1854681
0
431051700KM
17.00
32.00
92.00
17.00
3
1854700
0
431051700KMX
17.00
32.00
92.00
17.00
3
1854702
0
431051800KM
18.00
32.00
92.00
18.00
3
1854714
0
431051800KMX
18.00
32.00
92.00
18.00
3
1854716
0
431051900KM
19.00
38.00
104.00
19.00
3
1854731
0
431051900KMX
19.00
38.00
104.00
19.00
3
1854732
0
431052000KM
20.00
38.00
104.00
20.00
3
1854743
0
431052000KMX
20.00
38.00
104.00
20.00
3
1854745
0
Click here for the Cutting Parameters for this family
