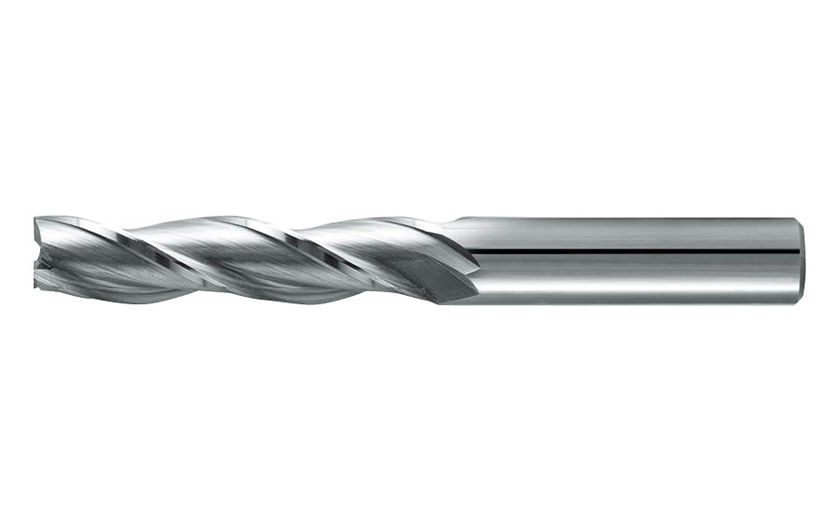

43110 : Three flute end mills

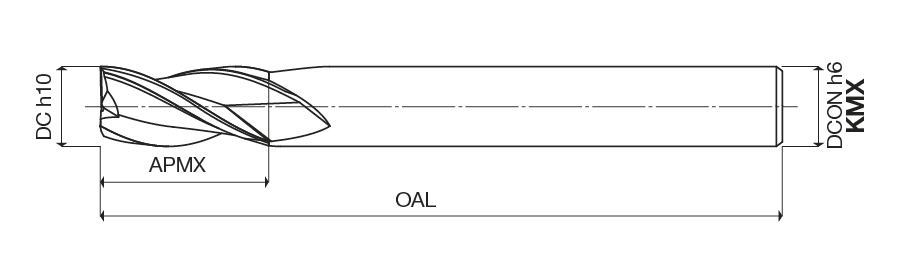

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
431100300KM	3.00	20.00	55.00	3.00	3	1854761
431100300KMX	3.00	20.00	55.00	3.00	3	1854762
431100400KM	4.00	20.00	60.00	4.00	3	1854778
431100400KMX	4.00	20.00	60.00	4.00	3	1854779
431100500KM	5.00	20.00	60.00	5.00	3	1854795
431100500KMX	5.00	20.00	60.00	5.00	3	1854796
431100600KM	6.00	24.00	65.00	6.00	3	1854811
431100600KMX	6.00	24.00	65.00	6.00	3	1854813
431100700KM	7.00	30.00	75.00	7.00	3	1854831
431100700KMX	7.00	30.00	75.00	7.00	3	1854832
431100800KM	8.00	32.00	80.00	8.00	3	1854846
431100800KMX	8.00	32.00	80.00	8.00	3	1854848
431100900KM	9.00	32.00	80.00	9.00	3	1854864
431100900KMX	9.00	32.00	80.00	9.00	3	1854865
431101000KM	10.00	32.00	80.00	10.00	3	1854874
431101000KMX	10.00	32.00	80.00	10.00	3	1854876
431101100KM	11.00	50.00	100.00	11.00	3	1854892
431101100KMX	11.00	50.00	100.00	11.00	3	1854894
431101200KM	12.00	50.00	100.00	12.00	3	1854902
431101200KMX	12.00	50.00	100.00	12.00	3	1854903
431101300KM	13.00	55.00	115.00	13.00	3	1854920
431101300KMX	13.00	55.00	115.00	13.00	3	1854921
431101400KM	14.00	55.00	115.00	14.00	3	1854929
431101400KMX	14.00	55.00	115.00	14.00	3	1854931
431101500KM	15.00	60.00	120.00	15.00	3	1854942
431101500KMX	15.00	60.00	120.00	15.00	3	1854943
431101600KM	16.00	60.00	120.00	16.00	3	1854952
431101600KMX	16.00	60.00	120.00	16.00	3	1854954
431101700KM	17.00	60.00	120.00	17.00	3	1854968
431101700KMX	17.00	60.00	120.00	17.00	3	1854969
431101800KM	18.00	60.00	120.00	18.00	3	1854975
431101800KMX	18.00	60.00	120.00	18.00	3	1854976
431101900KM	19.00	60.00	130.00	19.00	3	1854984
431101900KMX	19.00	60.00	130.00	19.00	3	1854985
431102000KM	20.00	60.00	130.00	20.00	3	1854990
431102000KMX	20.00	60.00	130.00	20.00	3	1854992

Click here for the Cutting Parameters for this family

Milling
Main Application
