UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

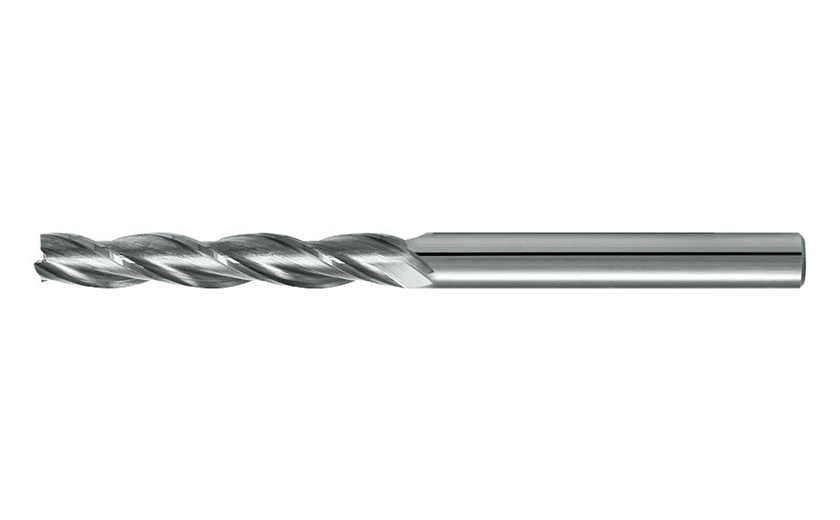

43120 : Three flute end mills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
431200300KM	3.00	25.00	70.00	3.00	3	1855005
431200300KMX	3.00	25.00	70.00	3.00	3	1855006
431200400KM	4.00	32.00	72.00	4.00	3	1855018
431200400KMX	4.00	32.00	72.00	4.00	3	1855019
431200500KM	5.00	32.00	80.00	5.00	3	1855030
431200500KMX	5.00	32.00	80.00	5.00	3	1855031
431200600KM	6.00	40.00	80.00	6.00	3	1855041
431200600KMX	6.00	40.00	80.00	6.00	3	1855042
431200700KM	7.00	42.00	100.00	7.00	3	1855056
431200700KMX	7.00	42.00	100.00	7.00	3	1855057
431200800KM	8.00	42.00	100.00	8.00	3	1855063
431200800KMX	8.00	42.00	100.00	8.00	3	1855065
431200900KM	9.00	45.00	100.00	9.00	3	1855076
431200900KMX	9.00	45.00	100.00	9.00	3	1855077
431201000KM	10.00	45.00	100.00	10.00	3	1855084
431201000KMX	10.00	45.00	100.00	10.00	3	1855086
431201100KM	11.00	70.00	130.00	11.00	3	1855101
431201100KMX	11.00	70.00	130.00	11.00	3	1855102
431201200KM	12.00	75.00	160.00	12.00	3	1855106
431201200KMX	12.00	75.00	160.00	12.00	3	1855107
431201300KM	13.00	75.00	160.00	13.00	3	1855117
431201300KMX	13.00	75.00	160.00	13.00	3	1855118
431201400KM	14.00	75.00	160.00	14.00	3	1855122
431201400KMX	14.00	75.00	160.00	14.00	3	1855123
431201500KM	15.00	75.00	160.00	15.00	3	1855128
431201500KMX	15.00	75.00	160.00	15.00	3	1855129
431201600KM	16.00	75.00	160.00	16.00	3	1855134
431201600KMX	16.00	75.00	160.00	16.00	3	1855135
431201700KM	17.00	75.00	160.00	17.00	3	1855143
431201700KMX	17.00	75.00	160.00	17.00	3	1855144
431201800KM	18.00	75.00	160.00	18.00	3	1855148
431201800KMX	18.00	75.00	160.00	18.00	3	1855149
431201900KM	19.00	75.00	160.00	19.00	3	1855156
431201900KMX	19.00	75.00	160.00	19.00	3	1855157
431202000KM	20.00	75.00	160.00	20.00	3	1855161
431202000KMX	20.00	75.00	160.00	20.00	3	1855162

Click here for the Cutting Parameters for this family
