Milling
>
>
43135
Milling
Main Application
Cutting Parameters
for this family
43135 :

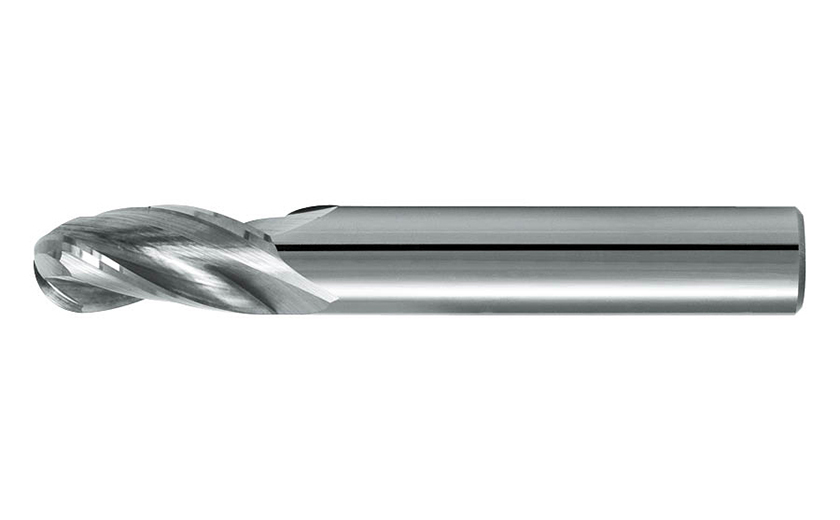

Ball-nosed three flute end mills

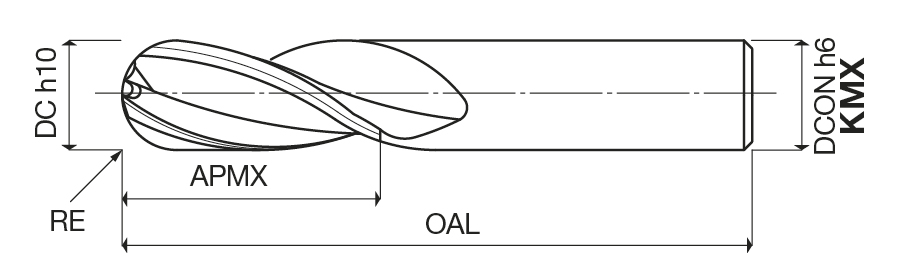

Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
431350200KM
2.00
7.00
40.00
2.00
3
1855170
0
431350200KMX
2.00
7.00
40.00
2.00
3
1855171
0
431350300KM
3.00
10.00
40.00
3.00
3
1855184
0
431350300KMX
3.00
10.00
40.00
3.00
3
1855185
0
431350400KM
4.00
11.00
50.00
4.00
3
1855201
0
431350400KMX
4.00
11.00
50.00
4.00
3
1855202
0
431350500KM
5.00
13.00
50.00
5.00
3
1855222
0
431350500KMX
5.00
13.00
50.00
5.00
3
1855223
0
431350600KM
6.00
16.00
57.00
6.00
3
1855239
0
431350600KMX
6.00
16.00
57.00
6.00
3
1855240
0
431350700KM
7.00
16.00
60.00
7.00
3
1855258
0
431350700KMX
7.00
16.00
60.00
7.00
3
1855259
0
431350800KM
8.00
19.00
63.00
8.00
3
1855270
0
431350800KMX
8.00
19.00
63.00
8.00
3
1855272
0
431350900KM
9.00
19.00
67.00
9.00
3
1855289
0
431350900KMX
9.00
19.00
67.00
9.00
3
1855290
0
431351000KM
10.00
22.00
72.00
10.00
3
1855296
0
431351000KMX
10.00
22.00
72.00
10.00
3
1855297
0
431351100KM
11.00
22.00
83.00
11.00
3
1855314
0
431351100KMX
11.00
22.00
83.00
11.00
3
1855315
0
431351200KM
12.00
26.00
83.00
12.00
3
1855321
0
431351200KMX
12.00
26.00
83.00
12.00
3
1855323
0
431351300KM
13.00
26.00
83.00
13.00
3
1855342
0
431351300KMX
13.00
26.00
83.00
13.00
3
1855343
0
431351400KM
14.00
28.00
83.00
14.00
3
1855352
0
431351400KMX
14.00
28.00
83.00
14.00
3
1855353
0
431351500KM
15.00
32.00
92.00
15.00
3
1855366
0
431351500KMX
15.00
32.00
92.00
15.00
3
1855367
0
431351600KM
16.00
32.00
92.00
16.00
3
1855374
0
431351600KMX
16.00
32.00
92.00
16.00
3
1855375
0
431351700KM
17.00
32.00
92.00
17.00
3
1855386
0
431351700KMX
17.00
32.00
92.00
17.00
3
1855387
0
431351800KM
18.00
32.00
92.00
18.00
3
1855391
0
431351800KMX
18.00
32.00
92.00
18.00
3
1855392
0
431351900KM
19.00
38.00
104.00
19.00
3
1855398
0
431351900KMX
19.00
38.00
104.00
19.00
3
1855399
0
431352000KM
20.00
38.00
104.00
20.00
3
1855404
0
431352000KMX
20.00
38.00
104.00
20.00
3
1855405
0
Click here for the Cutting Parameters for this family
