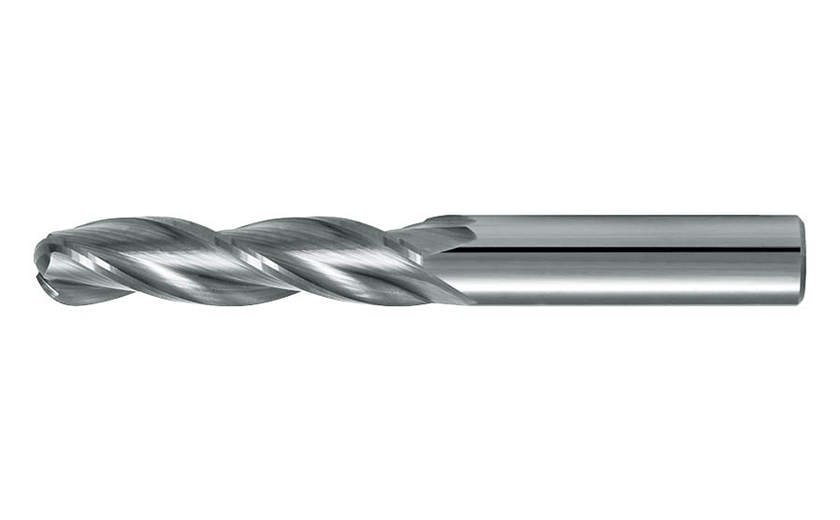

43140 : Ball-nosed three flute end mills

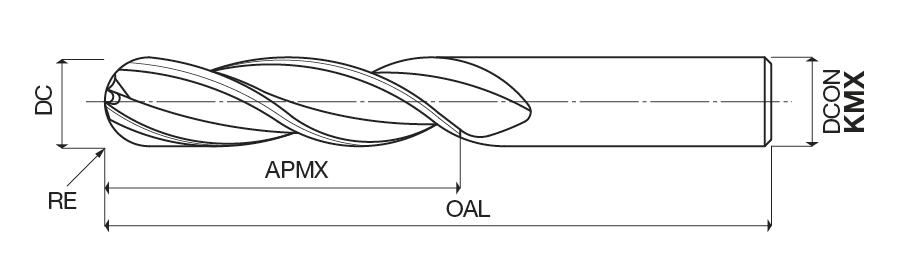

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
431400300KM	3.00	20.00	55.00	3.00	3	1855414
431400300KMX	3.00	20.00	55.00	3.00	3	1855415
431400400KM	4.00	20.00	60.00	4.00	3	1855425
431400400KMX	4.00	20.00	60.00	4.00	3	1855426
431400500KM	5.00	20.00	60.00	5.00	3	1855438
431400500KMX	5.00	20.00	60.00	5.00	3	1855439
431400600KM	6.00	24.00	65.00	6.00	3	1855447
431400600KMX	6.00	24.00	65.00	6.00	3	1855448
431400700KM	7.00	30.00	75.00	7.00	3	1855458
431400700KMX	7.00	30.00	75.00	7.00	3	1855459
431400800KM	8.00	32.00	80.00	8.00	3	1855463
431400800KMX	8.00	32.00	80.00	8.00	3	1855465
431400900KM	9.00	32.00	80.00	9.00	3	1855476
431400900KMX	9.00	32.00	80.00	9.00	3	1855478
431401000KM	10.00	32.00	80.00	10.00	3	1855483
431401000KMX	10.00	32.00	80.00	10.00	3	1855484
431401100KM	11.00	50.00	100.00	11.00	3	1855493
431401100KMX	11.00	50.00	100.00	11.00	3	1855494
431401200KMX	12.00	50.00	100.00	12.00	3	1855499
431401300KM	13.00	55.00	115.00	13.00	3	1855510
431401300KMX	13.00	55.00	115.00	13.00	3	1855511
431401400KM	14.00	55.00	115.00	14.00	3	1855515
431401400KMX	14.00	55.00	115.00	14.00	3	1855516
431401500KM	15.00	60.00	120.00	15.00	3	1855522
431401500KMX	15.00	60.00	120.00	15.00	3	1855523
431401600KM	16.00	60.00	120.00	16.00	3	1855528
431401600KMX	16.00	60.00	120.00	16.00	3	1855529
431401700KM	17.00	60.00	120.00	17.00	3	1855535
431401700KMX	17.00	60.00	120.00	17.00	3	1855536
431401800KM	18.00	60.00	120.00	18.00	3	1855540
431401800KMX	18.00	60.00	120.00	18.00	3	1855541
431401900KM	19.00	60.00	130.00	19.00	3	1855545
431401900KMX	19.00	60.00	130.00	19.00	3	1855546
431402000KM	20.00	60.00	130.00	20.00	3	1855550
431402000KMX	20.00	60.00	130.00	20.00	3	1855551

Click here for the Cutting Parameters for this family

Milling
Main Application
