UOP Cutting Tools - Metal Working Tools - Milling -

Cutting Parameters
for this family

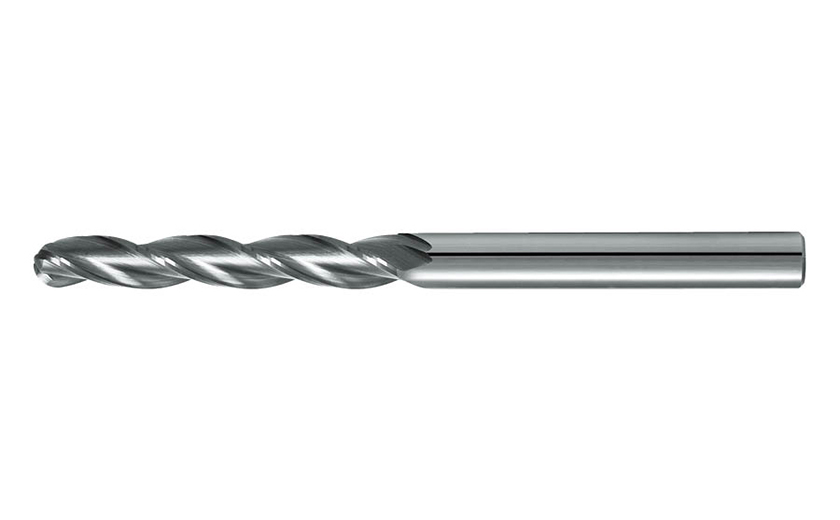

43150 : Ball-nosed three flute end mills

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
431500300KM	3.00	25.00	70.00	3.00	3	1855556
431500300KMX	3.00	25.00	70.00	3.00	3	1855557
431500400KM	4.00	32.00	72.00	4.00	3	1855566
431500400KMX	4.00	32.00	72.00	4.00	3	1855567
431500500KM	5.00	32.00	80.00	5.00	3	1855576
431500500KMX	5.00	32.00	80.00	5.00	3	1855577
431500600KM	6.00	40.00	80.00	6.00	3	1855584
431500600KMX	6.00	40.00	80.00	6.00	3	1855585
431500700KM	7.00	42.00	100.00	7.00	3	1855595
431500700KMX	7.00	42.00	100.00	7.00	3	1855596
431500800KM	8.00	42.00	100.00	8.00	3	1855601
431500800KMX	8.00	42.00	100.00	8.00	3	1855602
431500900KM	9.00	45.00	100.00	9.00	3	1855611
431500900KMX	9.00	45.00	100.00	9.00	3	1855612
431501000KM	10.00	45.00	100.00	10.00	3	1855616
431501000KMX	10.00	45.00	100.00	10.00	3	1855617
431501100KM	11.00	70.00	130.00	11.00	3	1855626
431501100KMX	11.00	70.00	130.00	11.00	3	1855627
431501200KM	12.00	75.00	160.00	12.00	3	1855631
431501200KMX	12.00	75.00	160.00	12.00	3	1855632
431501300KM	13.00	75.00	160.00	13.00	3	1855639
431501300KMX	13.00	75.00	160.00	13.00	3	1855640
431501400KM	14.00	75.00	160.00	14.00	3	1855645
431501400KMX	14.00	75.00	160.00	14.00	3	1855646
431501500KM	15.00	75.00	160.00	15.00	3	1855650
431501500KMX	15.00	75.00	160.00	15.00	3	1855651
431501600KM	16.00	75.00	160.00	16.00	3	1855655
431501600KMX	16.00	75.00	160.00	16.00	3	1855656
431501700KM	17.00	75.00	160.00	17.00	3	1855660
431501700KMX	17.00	75.00	160.00	17.00	3	1855661
431501800KM	18.00	75.00	160.00	18.00	3	1855665
431501800KMX	18.00	75.00	160.00	18.00	3	1855666
431501900KM	19.00	75.00	160.00	19.00	3	1855670
431501900KMX	19.00	75.00	160.00	19.00	3	1855671
431502000KM	20.00	75.00	160.00	20.00	3	1855675
431502000KMX	20.00	75.00	160.00	20.00	3	1855676
