Milling
>
>
43505
Milling
Main Application
Cutting Parameters
for this family
43505 :

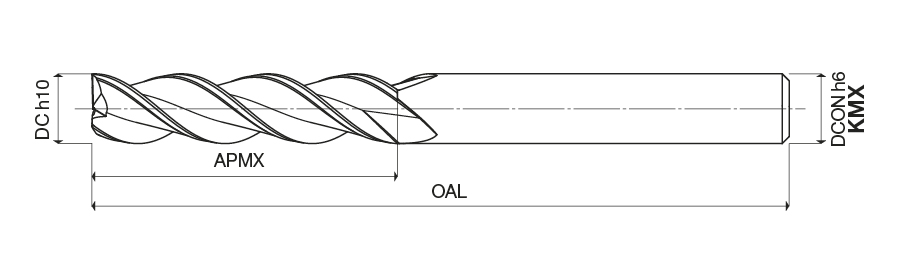

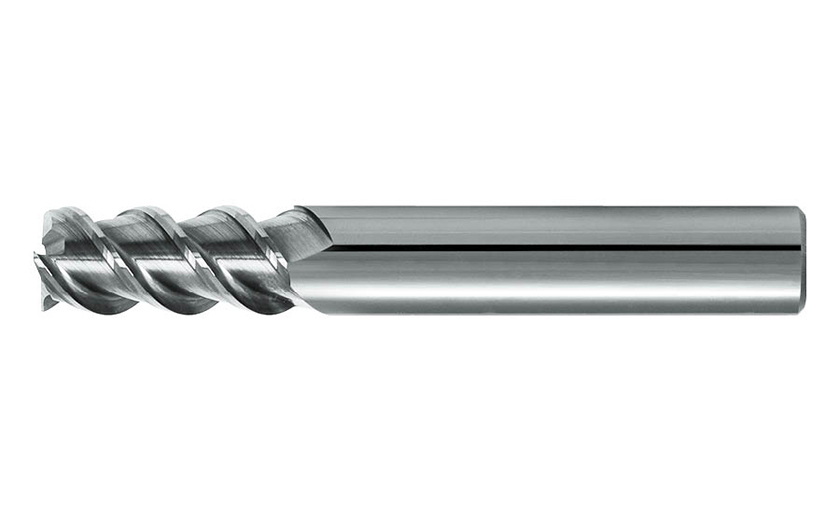

Three flute TORNADO end mills
Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
435050200KM
2.00
7.00
40.00
2.00
3
1855680
0
435050200KMX
2.00
7.00
40.00
2.00
3
1855681
0
435050250KM
2.50
10.00
40.00
2.50
3
1855691
0
435050250KMX
2.50
10.00
40.00
2.50
3
1855693
0
435050300KM
3.00
10.00
40.00
3.00
3
1855702
0
435050300KMX
3.00
10.00
40.00
3.00
3
1855703
0
435050350KM
3.50
11.00
50.00
3.50
3
1855720
0
435050350KMX
3.50
11.00
50.00
3.50
3
1855721
0
435050400KM
4.00
11.00
50.00
4.00
3
1855731
0
435050400KMX
4.00
11.00
50.00
4.00
3
1855732
0
435050450KM
4.50
13.00
50.00
4.50
3
1855748
0
435050450KMX
4.50
13.00
50.00
4.50
3
1855749
0
435050500KM
5.00
13.00
50.00
5.00
3
1855760
0
435050500KMX
5.00
13.00
50.00
5.00
3
1855761
0
435050550KM
5.50
16.00
57.00
5.50
3
1855777
0
435050550KMX
5.50
16.00
57.00
5.50
3
1855778
0
435050600KM
6.00
16.00
57.00
6.00
3
1855786
0
435050600KMX
6.00
16.00
57.00
6.00
3
1855787
0
435050650KM
6.50
16.00
60.00
6.50
3
1855806
0
435050650KMX
6.50
16.00
60.00
6.50
3
1855807
0
435050700KM
7.00
16.00
60.00
7.00
3
1855815
0
435050700KMX
7.00
16.00
60.00
7.00
3
1855816
0
435050750KM
7.50
19.00
63.00
7.50
3
1855827
0
435050750KMX
7.50
19.00
63.00
7.50
3
1855828
0
435050800KM
8.00
19.00
63.00
8.00
3
1855838
0
435050800KMX
8.00
19.00
63.00
8.00
3
1855840
0
435050850KM
8.50
19.00
67.00
8.50
3
1855860
0
435050850KMX
8.50
19.00
67.00
8.50
3
1855861
0
435050900KM
9.00
19.00
67.00
9.00
3
1855869
0
435050900KMX
9.00
19.00
67.00
9.00
3
1855870
0
435050950KM
9.50
22.00
72.00
9.50
3
1855881
0
435050950KMX
9.50
22.00
72.00
9.50
3
1855882
0
435051000KM
10.00
22.00
72.00
10.00
3
1855887
0
435051000KMX
10.00
22.00
72.00
10.00
3
1855889
0
435051050KM
10.50
22.00
72.00
10.50
3
1855908
0
435051050KMX
10.50
22.00
72.00
10.50
3
1855909
0
435051100KM
11.00
22.00
83.00
11.00
3
1855915
0
435051100KMX
11.00
22.00
83.00
11.00
3
1855916
0
435051200KM
12.00
26.00
83.00
12.00
3
1855926
0
435051200KMX
12.00
26.00
83.00
12.00
3
1855928
0
435051300KM
13.00
26.00
83.00
13.00
3
1855947
0
435051300KMX
13.00
26.00
83.00
13.00
3
1855948
0
435051400KM
14.00
28.00
83.00
14.00
3
1855954
0
435051400KMX
14.00
28.00
83.00
14.00
3
1855955
0
435051500KM
15.00
32.00
92.00
15.00
3
1855970
0
435051500KMX
15.00
32.00
92.00
15.00
3
1855971
0
435051600KM
16.00
32.00
92.00
16.00
3
1855979
0
435051600KMX
16.00
32.00
92.00
16.00
3
1855981
0
435051700KM
17.00
32.00
92.00
17.00
3
1856000
0
435051700KMX
17.00
32.00
92.00
17.00
3
1856001
0
435051800KM
18.00
32.00
92.00
18.00
3
1856007
0
435051800KMX
18.00
32.00
92.00
18.00
3
1856009
0
435051900KM
19.00
38.00
104.00
19.00
3
1856023
0
435051900KMX
19.00
38.00
104.00
19.00
3
1856024
0
435052000KM
20.00
38.00
104.00
20.00
3
1856028
0
435052000KMX
20.00
38.00
104.00
20.00
3
1856030
0
Click here for the Cutting Parameters for this family
