Milling
>
>
45105
Milling
Main Application
Cutting Parameters
for this family
45105 :

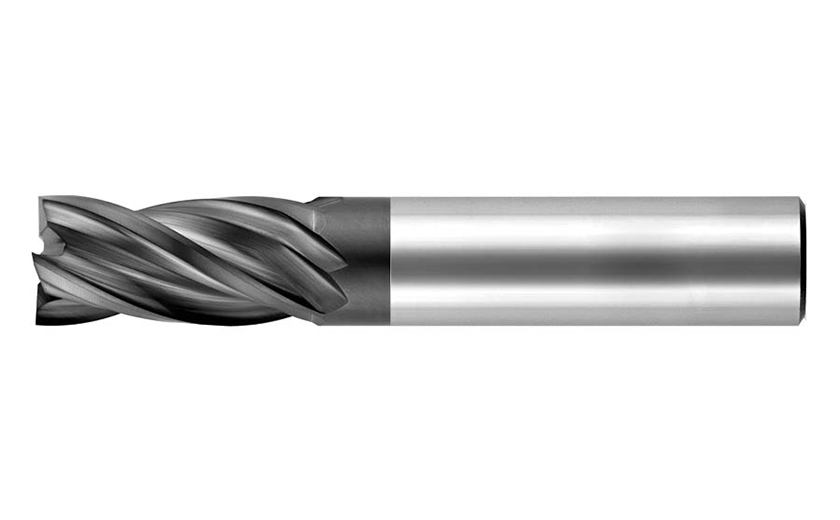

Four flute toric cutters. New geometry - Irregular division.Different helices

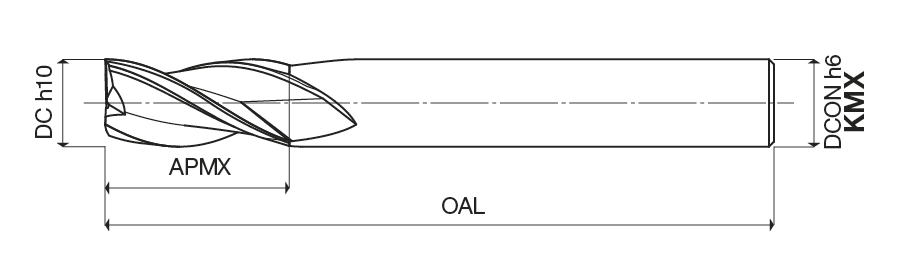

Designation
GICODE
DC
APMX
OAL
DCONMS
NOF
GICAT
GIREM
giic
451050200KM
2.00
7.00
40.00
2.00
4
1856440
0
451050200KMX
2.00
7.00
40.00
2.00
4
1856441
0
451050250KM
2.50
10.00
40.00
2.50
4
1856459
0
451050250KMX
2.50
10.00
40.00
2.50
4
1856461
0
451050300KM
3.00
10.00
40.00
3.00
4
1856478
0
451050300KMX
3.00
10.00
40.00
3.00
4
1856479
0
451050350KM
3.50
11.00
50.00
3.50
4
1856502
0
451050350KMX
3.50
11.00
50.00
3.50
4
1856503
0
451050400KM
4.00
11.00
50.00
4.00
4
1856518
0
451050400KMX
4.00
11.00
50.00
4.00
4
1856520
0
451050450KM
4.50
13.00
50.00
4.50
4
1856542
0
451050450KMX
4.50
13.00
50.00
4.50
4
1856543
0
451050500KM
5.00
13.00
50.00
5.00
4
1856557
0
451050500KMX
5.00
13.00
50.00
5.00
4
1856558
0
451050550KM
5.50
16.00
57.00
5.50
4
1856581
0
451050550KMX
5.50
16.00
57.00
5.50
4
1856582
0
451050600KM
6.00
16.00
57.00
6.00
4
1856597
0
451050600KMX
6.00
16.00
57.00
6.00
4
1856599
0
451050650KM
6.50
16.00
60.00
6.50
4
1856624
0
451050650KMX
6.50
16.00
60.00
6.50
4
1856626
0
451050700KM
7.00
16.00
60.00
7.00
4
1856641
0
451050700KMX
7.00
16.00
60.00
7.00
4
1856642
0
451050750KM
7.50
19.00
63.00
7.50
4
1856660
0
451050750KMX
7.50
19.00
63.00
7.50
4
1856661
0
451050800KM
8.00
19.00
63.00
8.00
4
1856674
0
451050800KMX
8.00
19.00
63.00
8.00
4
1856676
0
451050850KM
8.50
19.00
67.00
8.50
4
1856701
0
451050850KMX
8.50
19.00
67.00
8.50
4
1856702
0
451050900KM
9.00
19.00
67.00
9.00
4
1856715
0
451050900KMX
9.00
19.00
67.00
9.00
4
1856716
0
451050950KM
9.50
22.00
72.00
9.50
4
1856734
0
451050950KMX
9.50
22.00
72.00
9.50
4
1856735
0
451051000KM
10.00
22.00
72.00
10.00
4
1856747
0
451051000KMX
10.00
22.00
72.00
10.00
4
1856749
0
451051050KM
10.50
22.00
72.00
10.50
4
1856772
0
451051050KMX
10.50
22.00
72.00
10.50
4
1856773
0
451051100KM
11.00
22.00
83.00
11.00
4
1856786
0
451051100KMX
11.00
22.00
83.00
11.00
4
1856787
0
451051200KM
12.00
26.00
83.00
12.00
4
1856803
0
451051200KMX
12.00
26.00
83.00
12.00
4
1856805
0
451051300KM
13.00
26.00
83.00
13.00
4
1856831
0
451051300KMX
13.00
26.00
83.00
13.00
4
1856832
0
451051400KM
14.00
28.00
83.00
14.00
4
1856847
0
451051400KMX
14.00
28.00
83.00
14.00
4
1856849
0
451051500KM
15.00
32.00
92.00
15.00
4
1856869
0
451051500KMX
15.00
32.00
92.00
15.00
4
1856870
0
451051600KM
16.00
32.00
92.00
16.00
4
1856885
0
451051600KMX
16.00
32.00
92.00
16.00
4
1856887
0
451051700KM
17.00
32.00
92.00
17.00
4
1856911
0
451051700KMX
17.00
32.00
92.00
17.00
4
1856912
0
451051800KM
18.00
32.00
92.00
18.00
4
1856922
0
451051800KMX
18.00
32.00
92.00
18.00
4
1856924
0
451051900KM
19.00
38.00
104.00
19.00
4
1856943
0
451051900KMX
19.00
38.00
104.00
19.00
4
1856944
0
451052000KM
20.00
38.00
104.00
20.00
4
1856954
0
451052000KMX
20.00
38.00
104.00
20.00
4
1856956
0
Click here for the Cutting Parameters for this family
