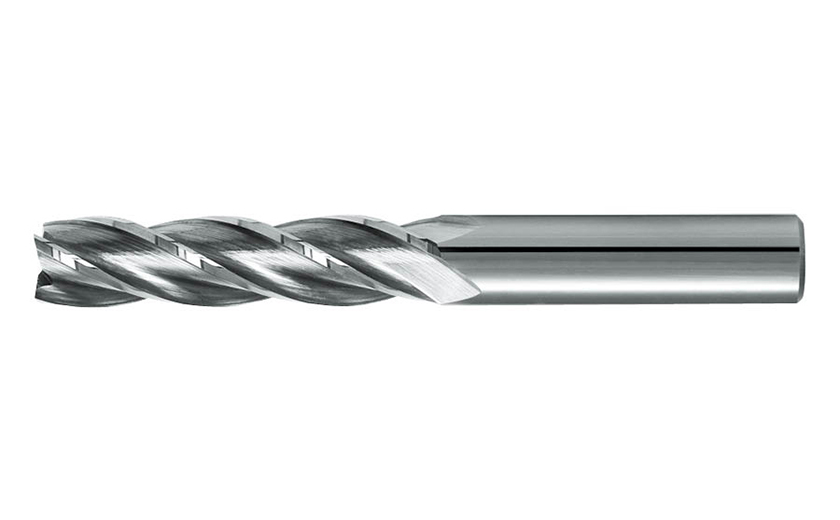

45110 : Four flute end mills

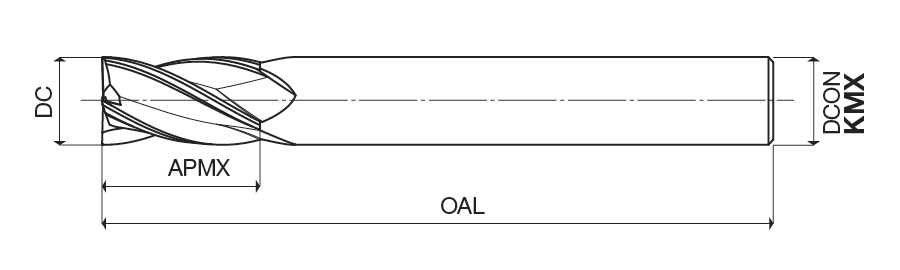

Designation	DC	APMX	OAL	DCONMS	NOF	GICAT
451100300KM	3.00	20.00	55.00	3.00	4	1857010
451100300KMX	3.00	20.00	55.00	3.00	4	1857011
451100400KM	4.00	20.00	60.00	4.00	4	1857029
451100400KMX	4.00	20.00	60.00	4.00	4	1857030
451100500KM	5.00	20.00	60.00	5.00	4	1857049
451100500KMX	5.00	20.00	60.00	5.00	4	1857050
451100600KM	6.00	24.00	65.00	6.00	4	1857067
451100600KMX	6.00	24.00	65.00	6.00	4	1857069
451100700KM	7.00	30.00	75.00	7.00	4	1857090
451100700KMX	7.00	30.00	75.00	7.00	4	1857092
451100800KM	8.00	32.00	80.00	8.00	4	1857106
451100800KMX	8.00	32.00	80.00	8.00	4	1857108
451100900KM	9.00	32.00	80.00	9.00	4	1857128
451100900KMX	9.00	32.00	80.00	9.00	4	1857129
451101000KM	10.00	32.00	80.00	10.00	4	1857138
451101000KMX	10.00	32.00	80.00	10.00	4	1857140
451101100KM	11.00	50.00	100.00	11.00	4	1857161
451101100KMX	11.00	50.00	100.00	11.00	4	1857162
451101200KM	12.00	50.00	100.00	12.00	4	1857171
451101200KMX	12.00	50.00	100.00	12.00	4	1857173
451101300KM	13.00	55.00	115.00	13.00	4	1857194
451101300KMX	13.00	55.00	115.00	13.00	4	1857195
451101400KM	14.00	55.00	115.00	14.00	4	1857206
451101400KMX	14.00	55.00	115.00	14.00	4	1857208
451101500KM	15.00	60.00	120.00	15.00	4	1857224
451101500KMX	15.00	60.00	120.00	15.00	4	1857225
451101600KM	16.00	60.00	120.00	16.00	4	1857233
451101600KMX	16.00	60.00	120.00	16.00	4	1857235
451101700KM	17.00	60.00	120.00	17.00	4	1857252
451101700KMX	17.00	60.00	120.00	17.00	4	1857253
451101800KM	18.00	60.00	120.00	18.00	4	1857258
451101800KMX	18.00	60.00	120.00	18.00	4	1857259
451101900KM	19.00	60.00	130.00	19.00	4	1857272
451101900KMX	19.00	60.00	130.00	19.00	4	1857273
451102000KM	20.00	60.00	130.00	20.00	4	1857278
451102000KMX	20.00	60.00	130.00	20.00	4	1857280

Click here for the Cutting Parameters for this family

Milling
Main Application
